Step 3

In this step we are creating the third decoration. This one is pretty easy as well.

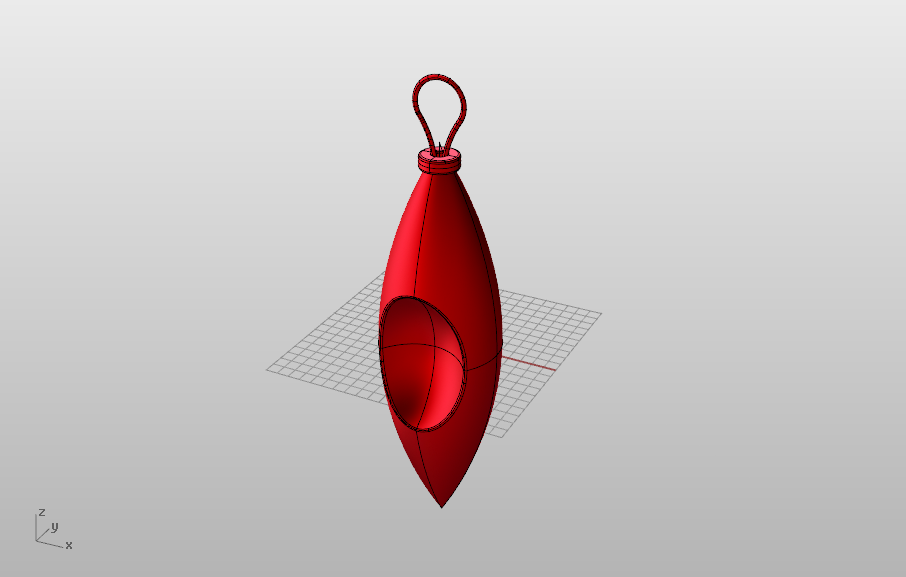

Third Decoration

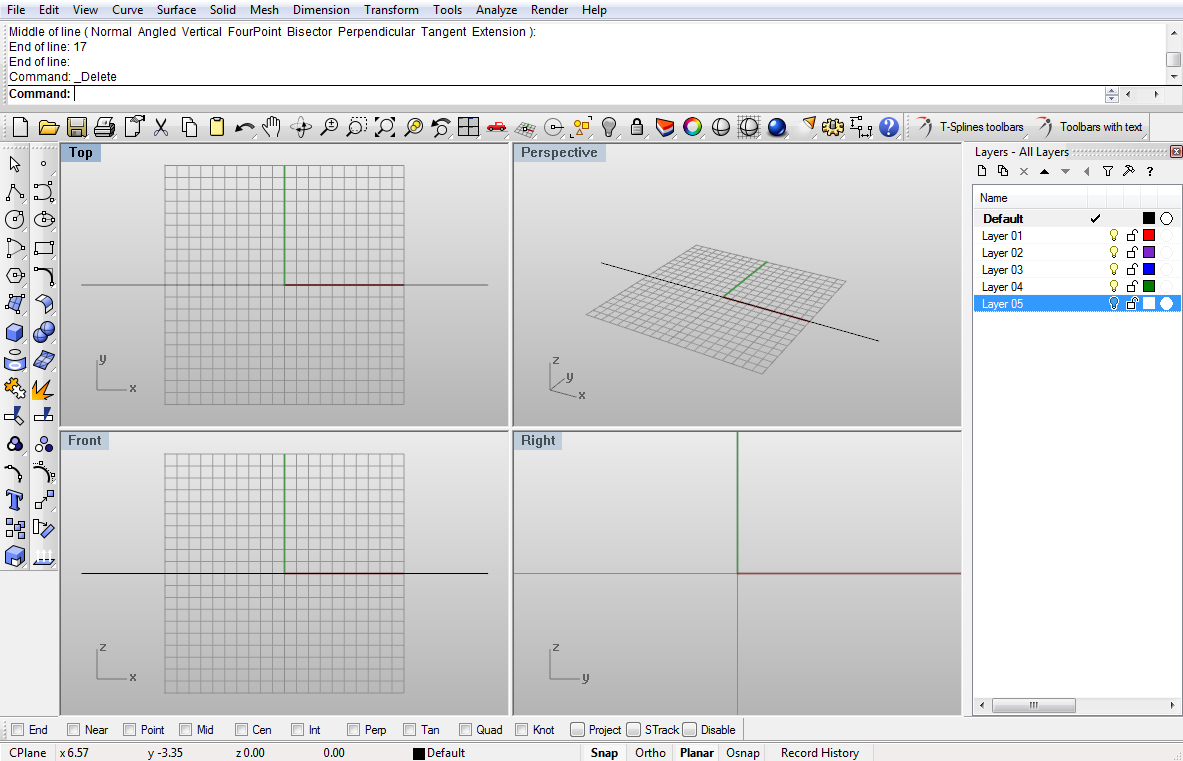

So, first lets start with one help line. Using command’s option BothSides we will create a line from origin (0,0) 17 units long in each direction making it 34 units long in total. But you will need to input 17.

Image 45

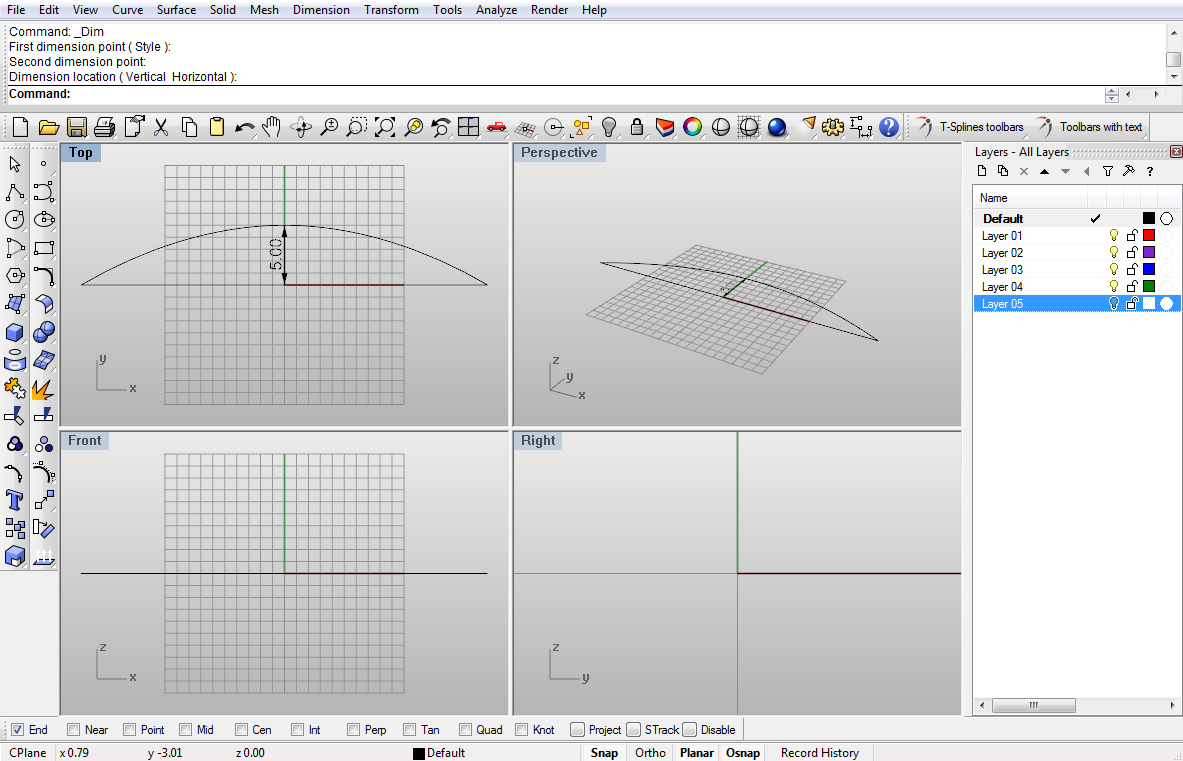

Now, using command we will create a curve from both ends of this line, and 5units high on the y axis: (you might want to turn on the End OSnap option)

Image 46

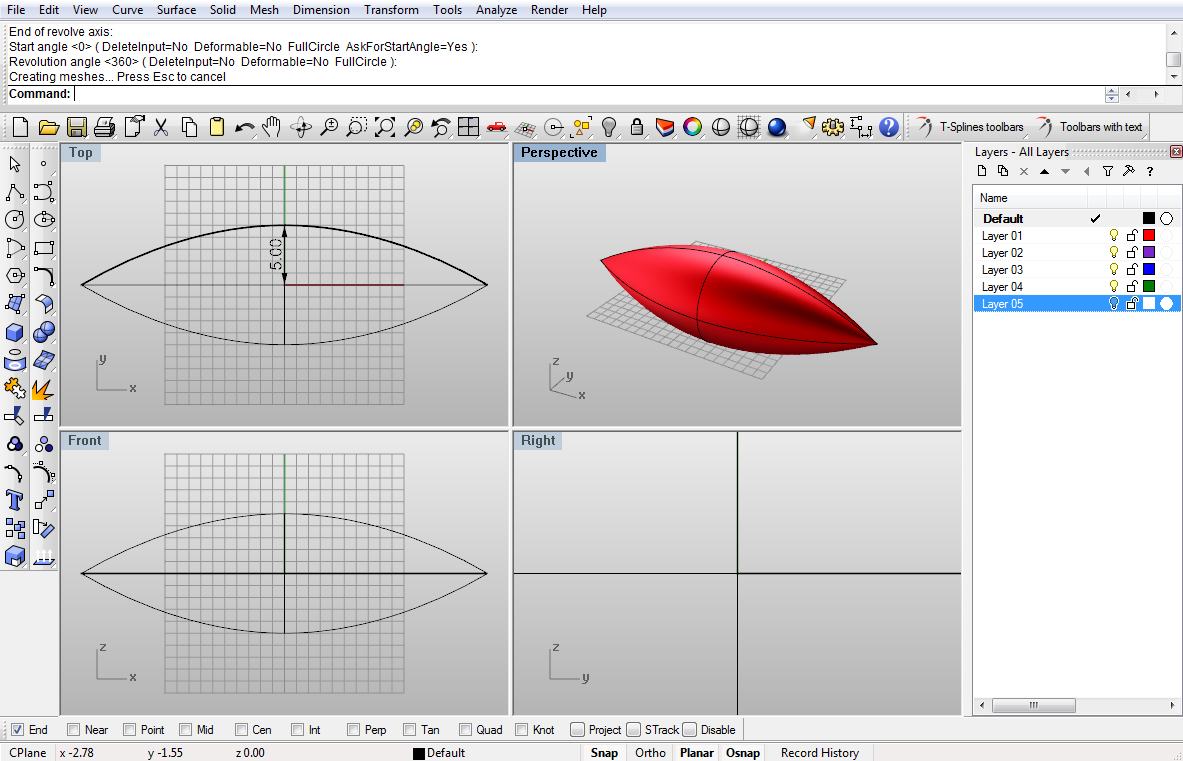

Now, using command we will create a surface out of this curve:

Image 47

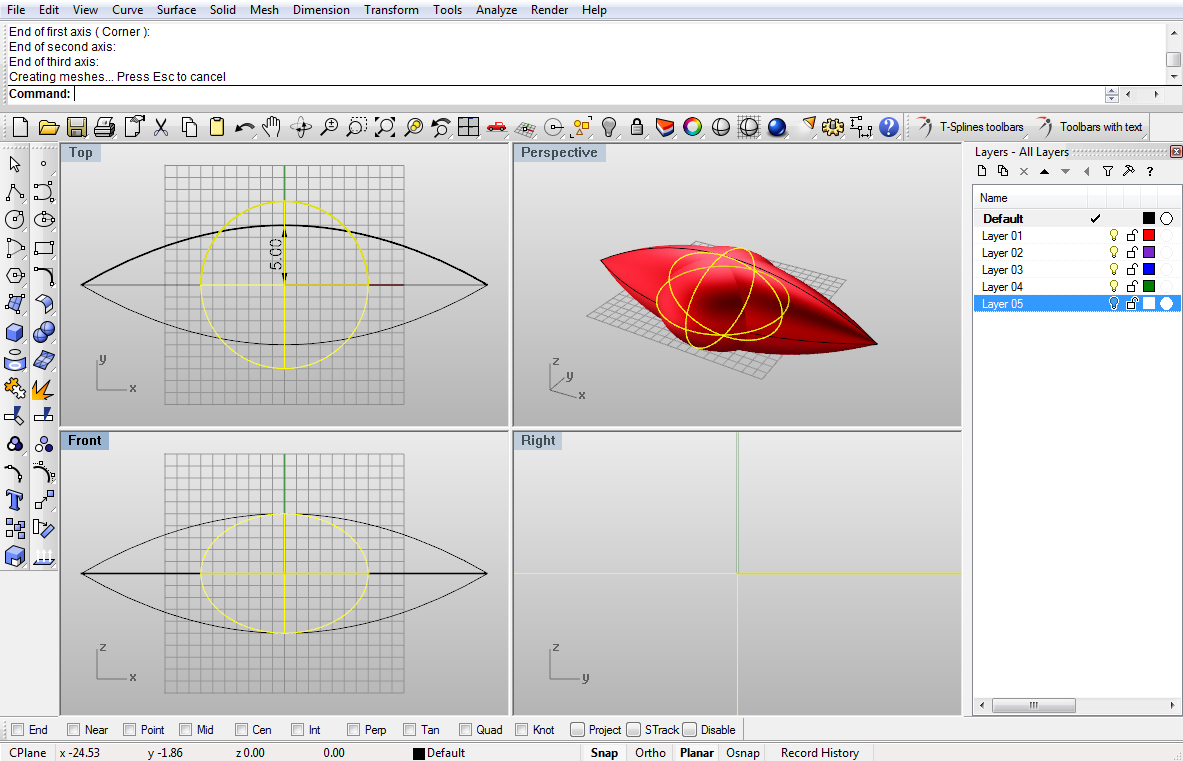

Next we need to create holes in this surface. We will do this by creating another and this time we will start creating it from the Top viewport as well, and make its first two dimensions 7 units long,and for the third one we will use 5 units.

Image 48

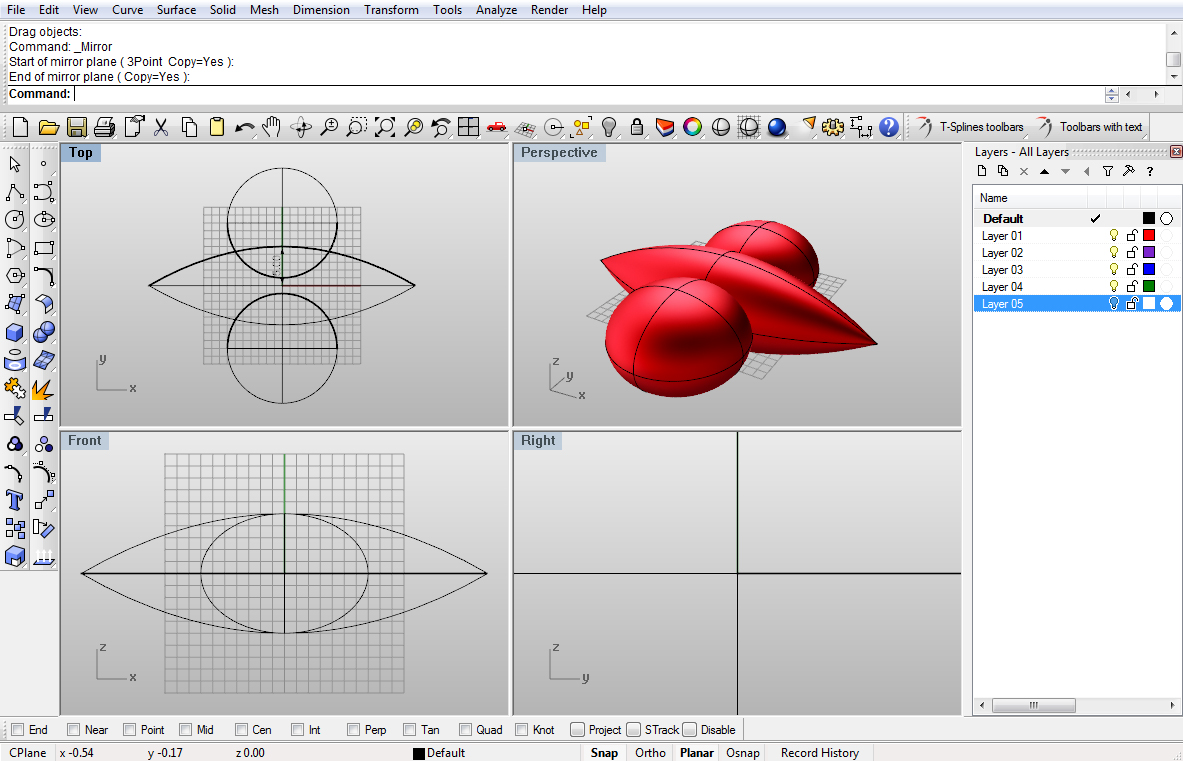

it down from top viewport by 8 units, and it using command over x axis:

Image 49

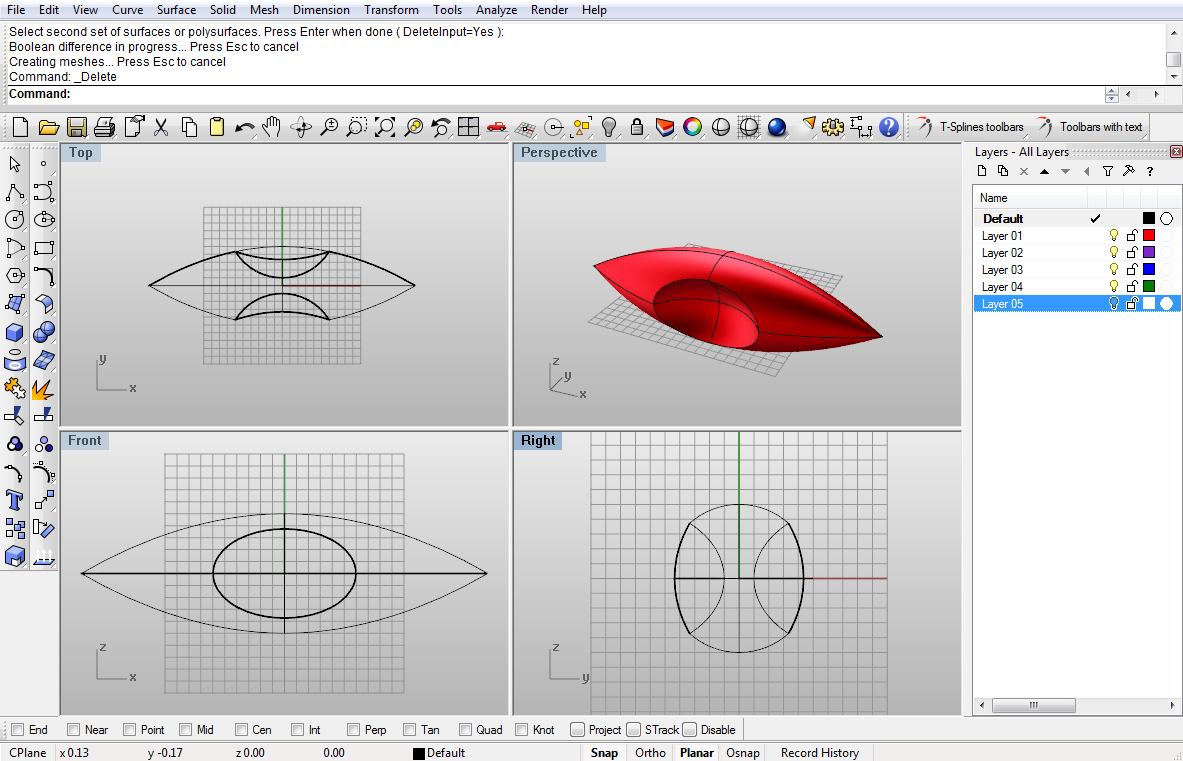

Using make holes:

Image 50

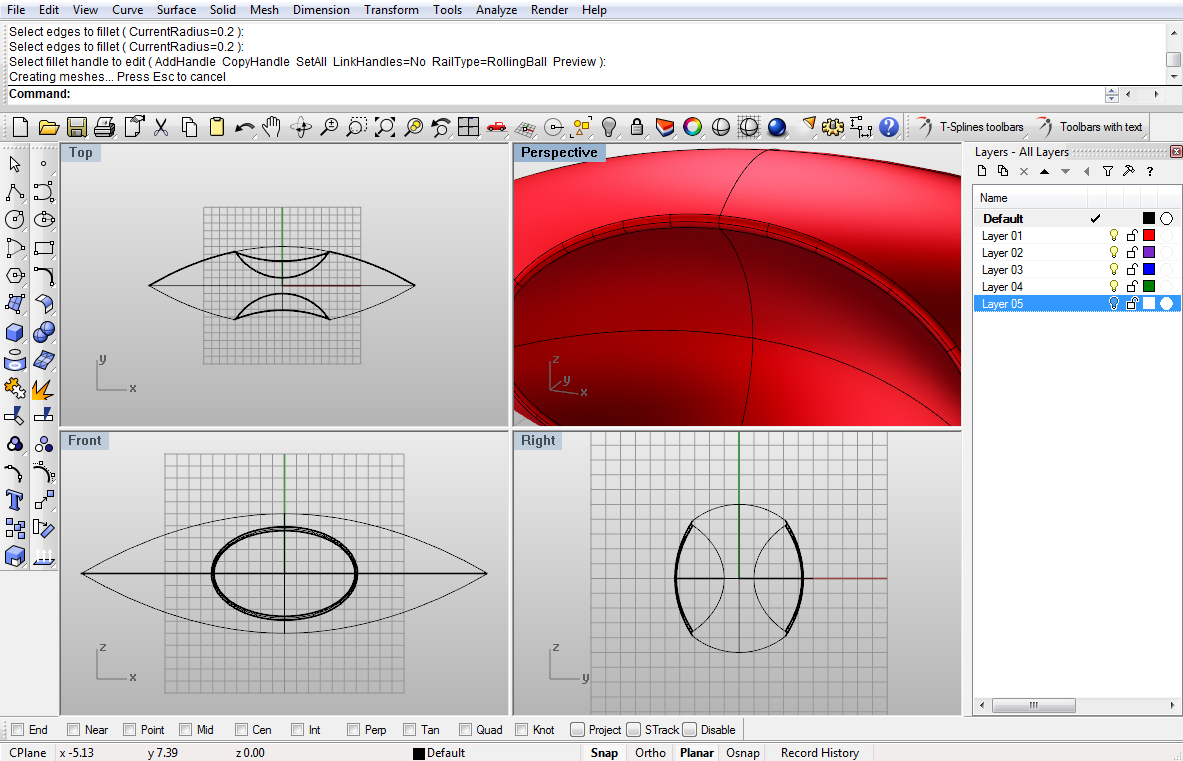

Fillet the two edges with command and use 0.2 units as radius:

Image 51

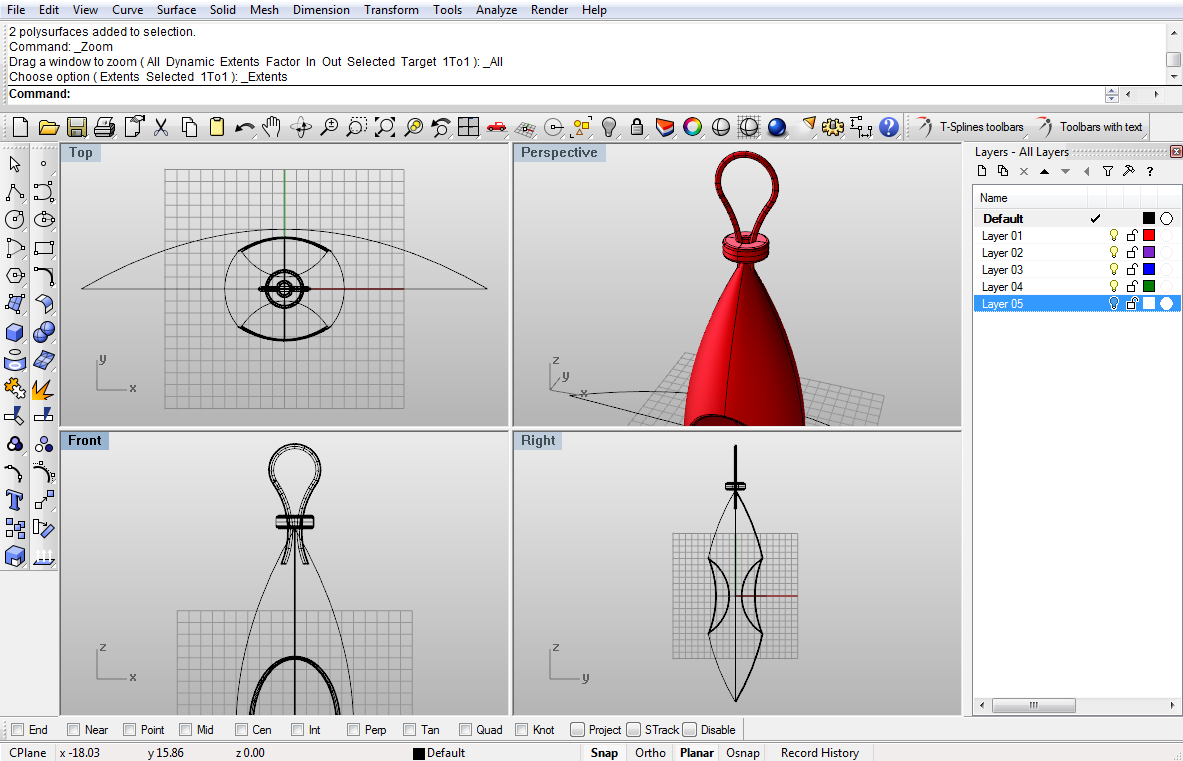

Now, using command we need to rotate our object 90 degrees and copy our wire tip again from previous decoration models:

Image 52

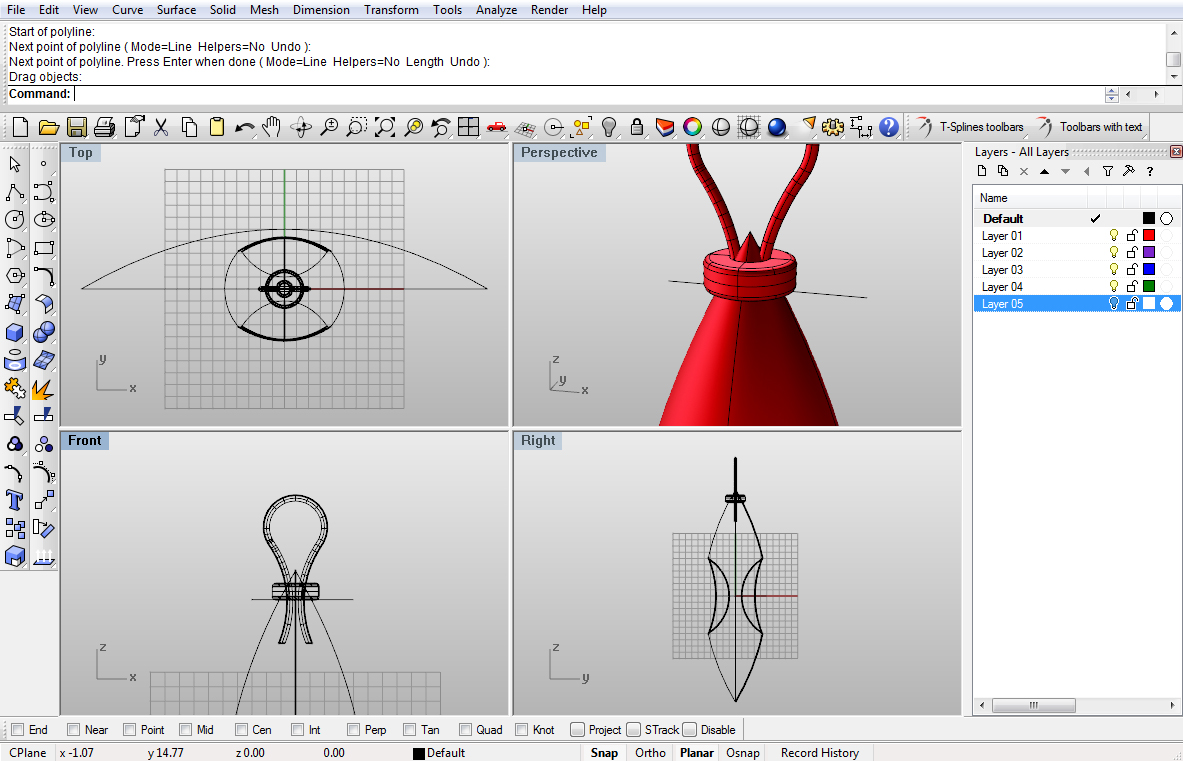

Simply move either wire or object so it looks like on the image below:

Image 53

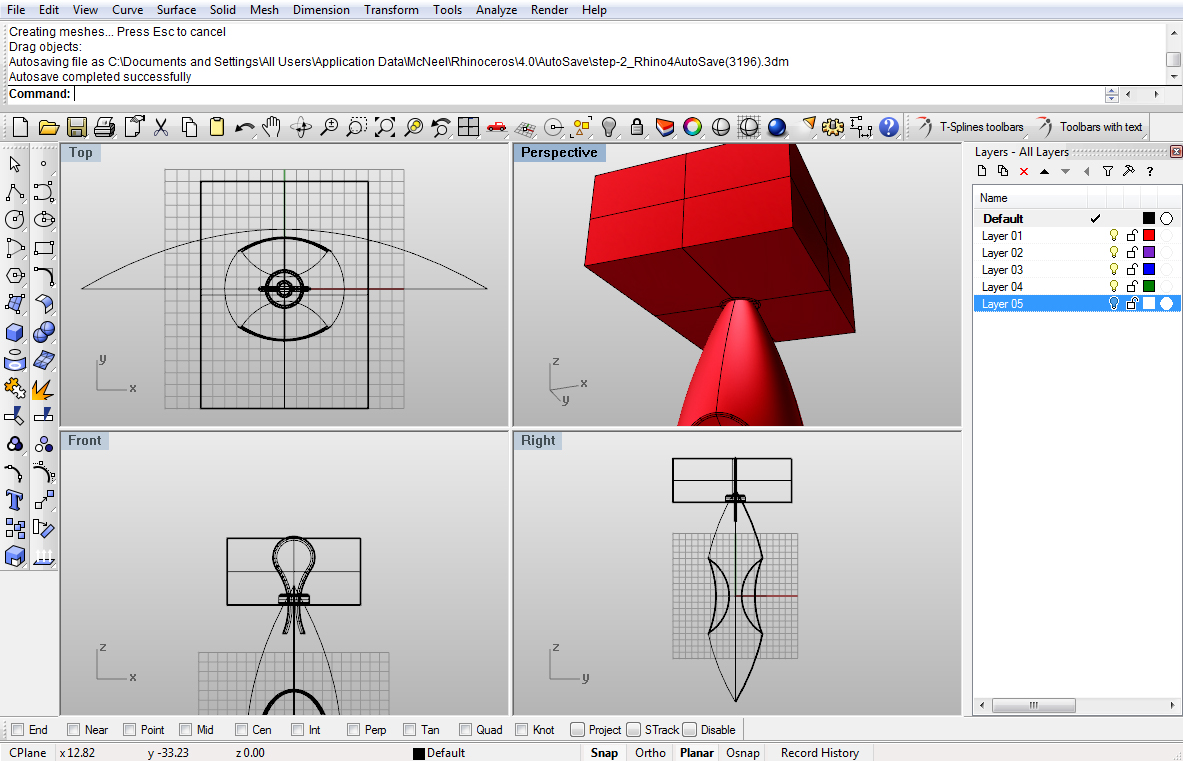

Using command, we will create a box which we will be using to cut the tip of the decoration object. For the cutting we will be using BooleanDifference command:

Image 54

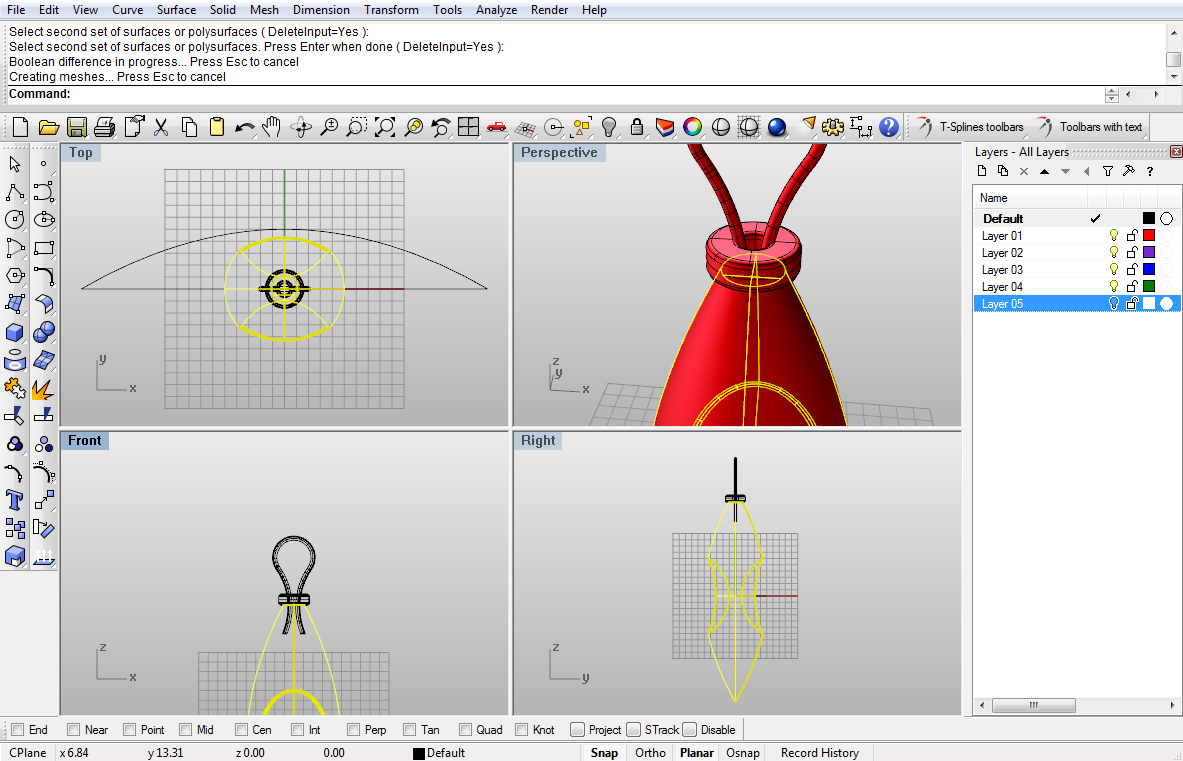

Image 55
