Modeling a Desk Lamp

STEP 4

Moving up.

From top viewport create a circle 8cm in diameter. Make an arc over that circle (and offset it inwards with 0.2cm) and create using sweep1 a surface using an arc as cross section curve, and circle as rail (for both arcs):

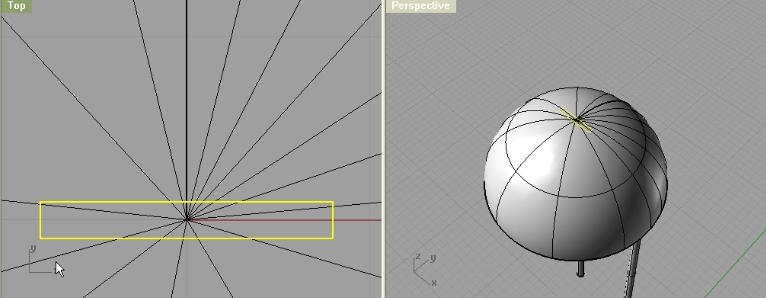

Make a rectangle 1.6cm x 0.2cm and position its center on the center of this semi-sphere (smart track will do the trick here):

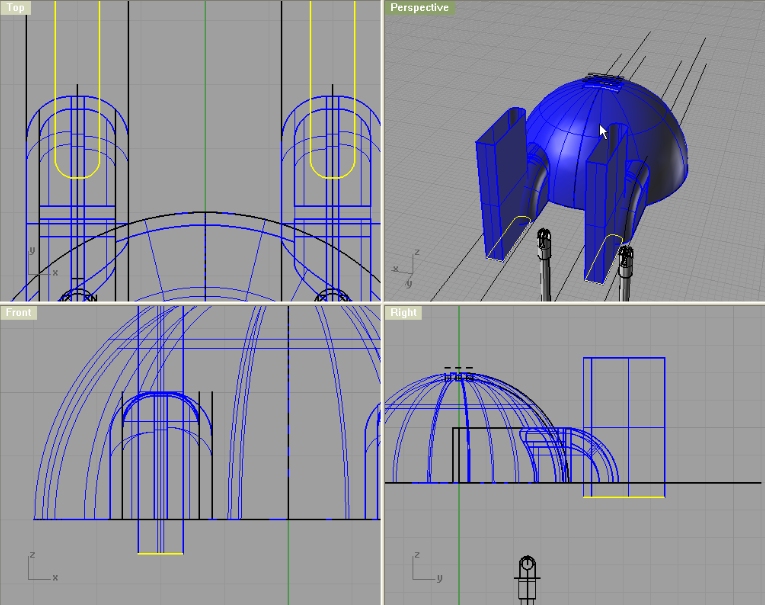

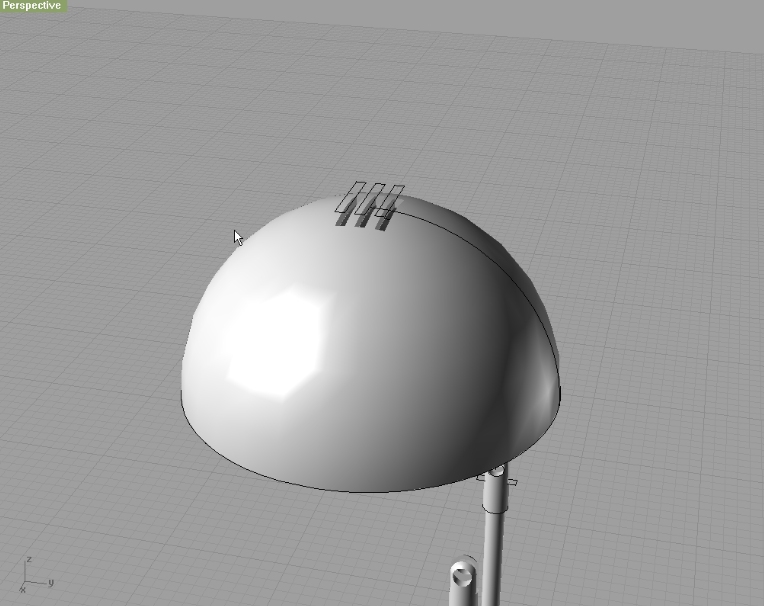

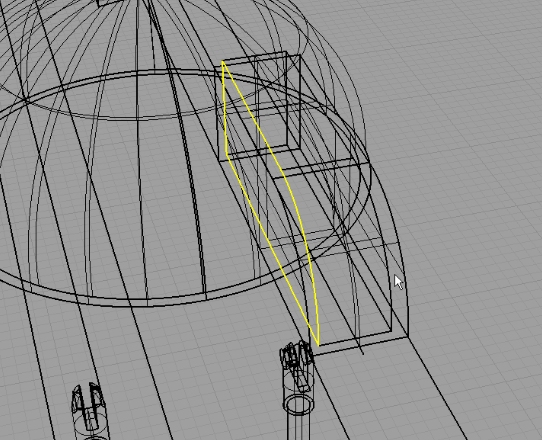

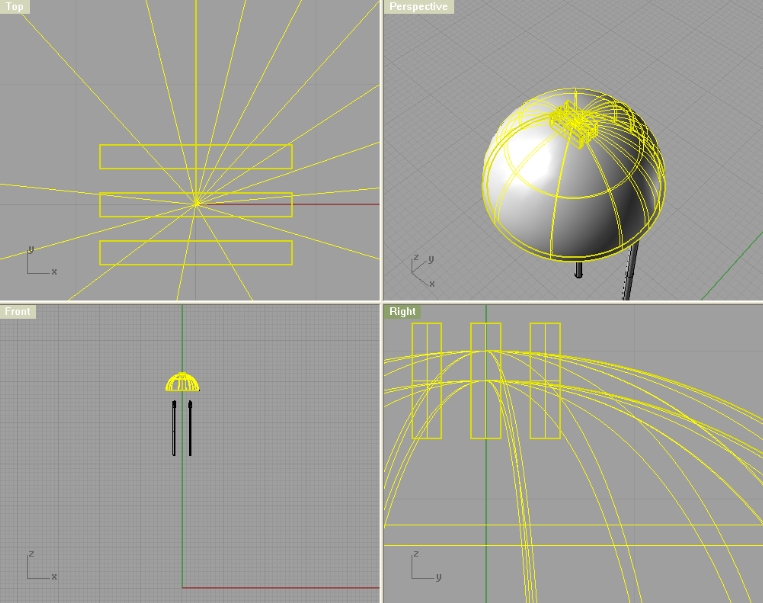

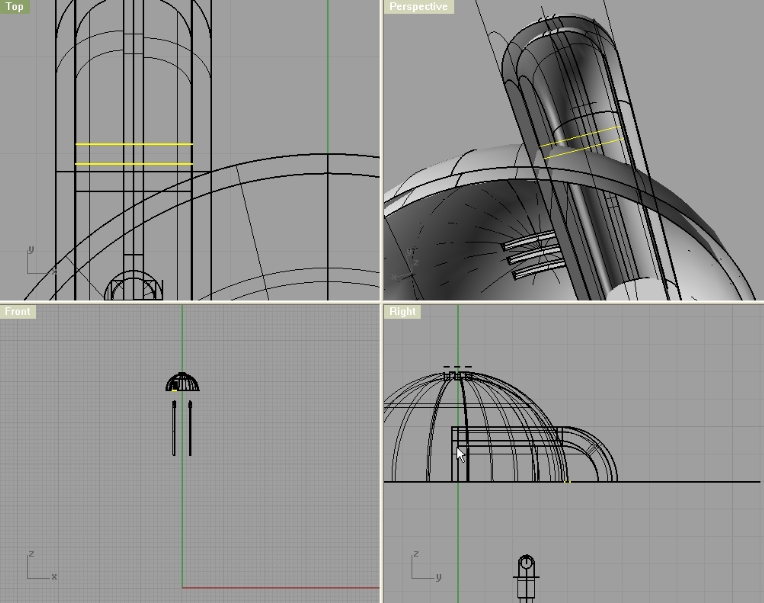

that rectangle twice and move one copy up by 0.4cm and other down by 0.4cm. Then extrude those 3 rectangles, and trim:

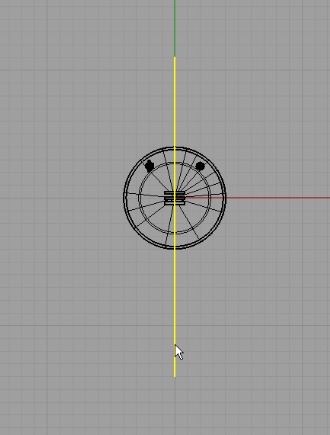

From top viewport make a line:

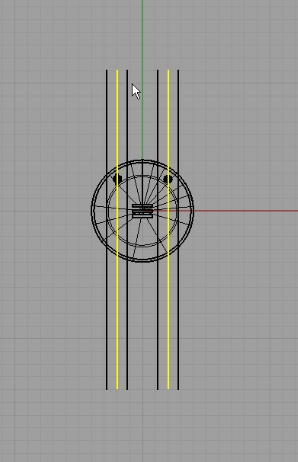

that line on both sides by 2cm. Each offset line offset by 0.8cm on both sides and delete the middle one:

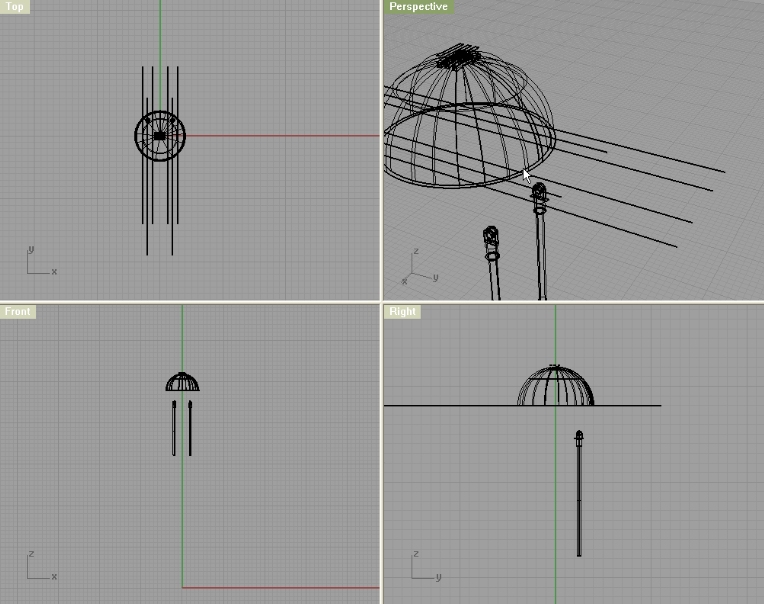

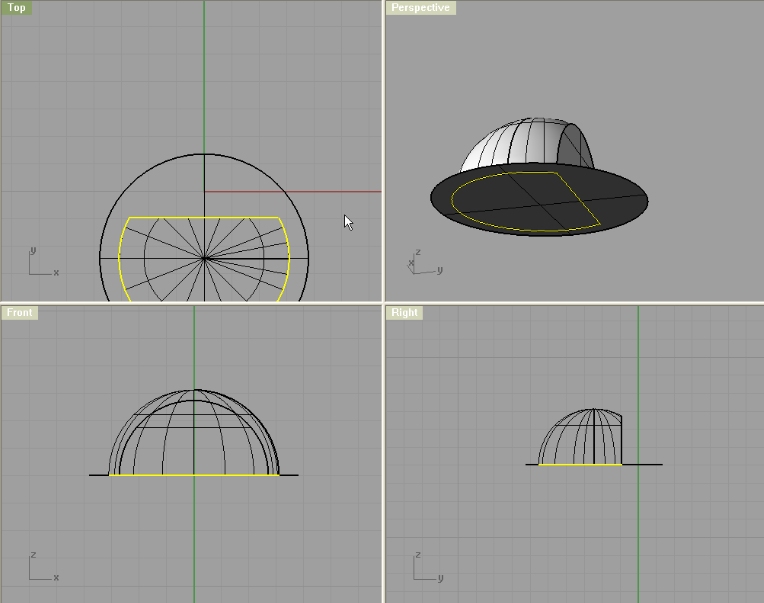

the selected two lines down a bit and position them on z axis so the fit semi-sphere:

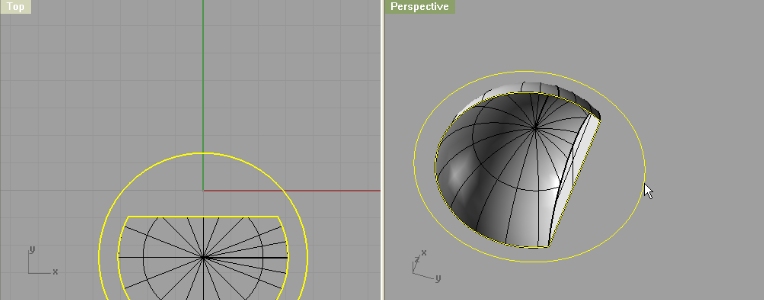

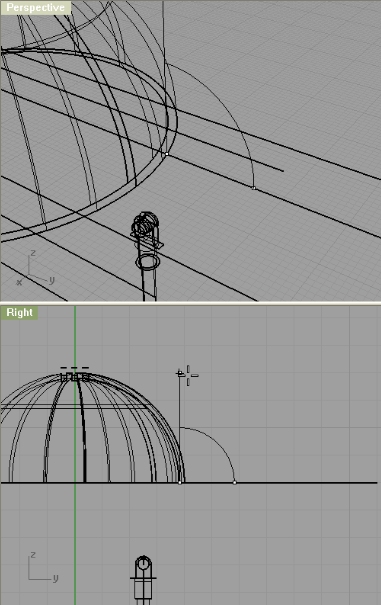

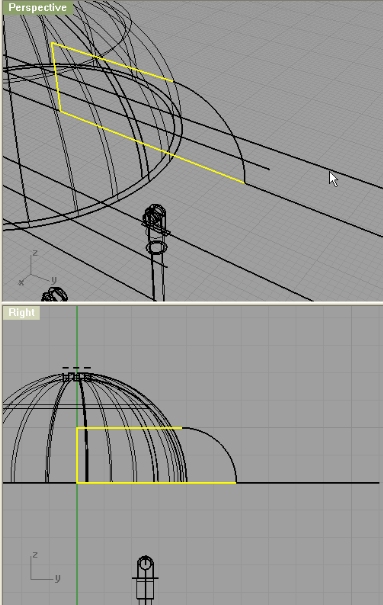

Where the far left line of 3 right lines intersect the semi-sphere start an arc radius of 2cm:

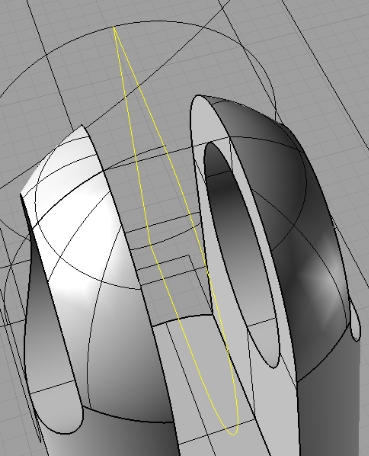

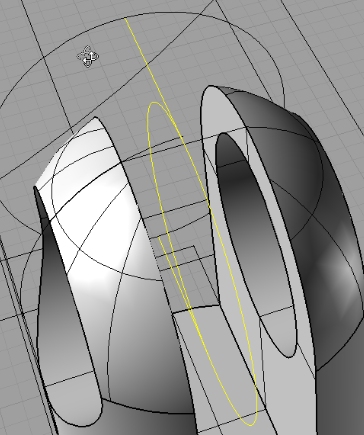

Using polyline make a polyline like on the image below. Then join with an arc:

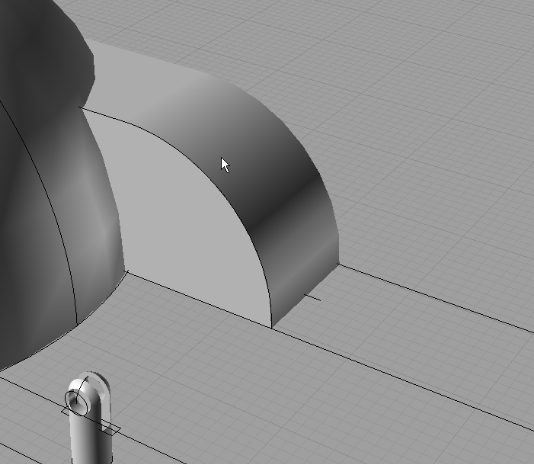

When you joined those, extrude by 1.6cm with cap set to yes, but you won’t even need to input that because you have far right line of those 3 right lines as a boundary for extrusion:

Now, select the closed curve we used for extrusion, and move it (from top viewport) by 0.2cm left, and 0.2cm down:

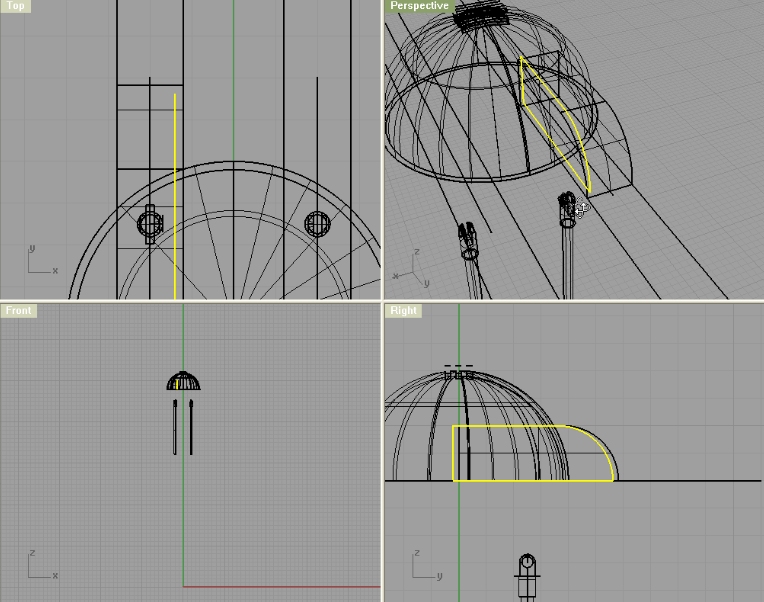

that curve over middle line, just so we don’t need the exact extrusion distance, we will simply use that one for boundary:

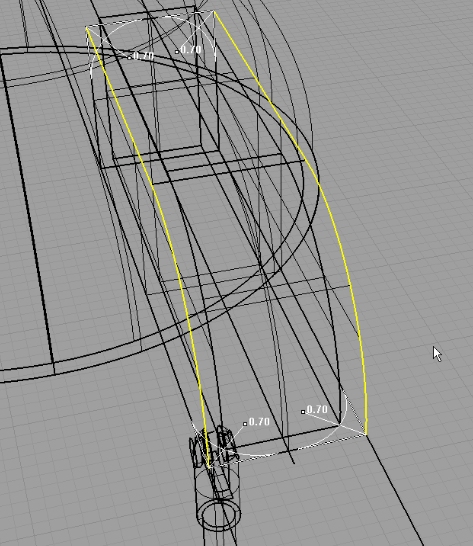

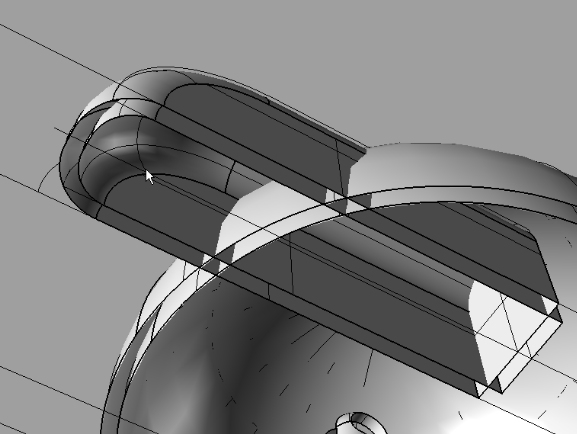

Now, lets fillet the edges of the outer shell. We will use 0.7cm as radius:

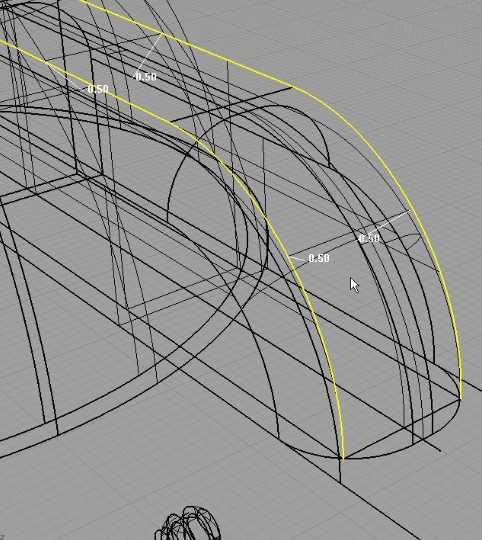

Now, lets fillet the edges of the inner shell. For that we will use 0.5cm as radius:

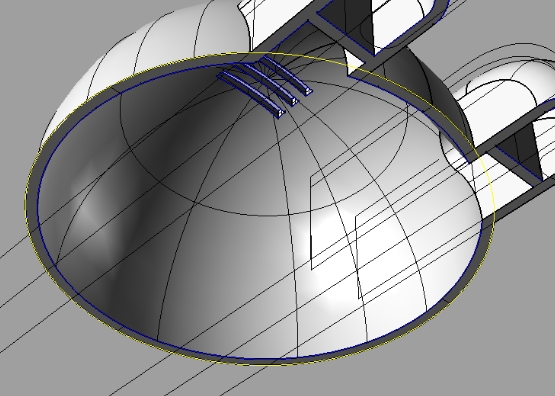

Now, using command, explode the surfaces of both shell sides and delete the bottom surfaces:

Create a line connecting the inner sides of inned shell, and then offset it by 0.2cm:

Extrude them:

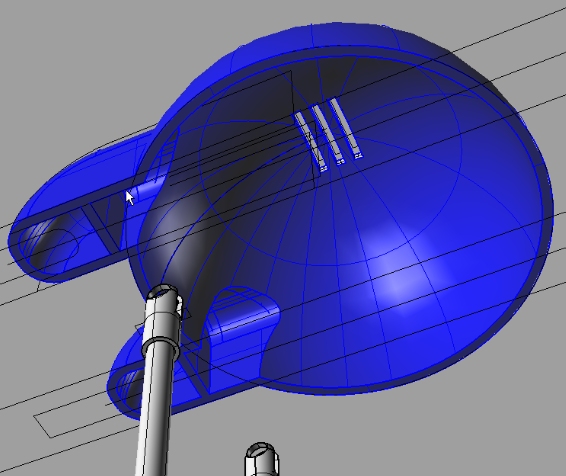

the inner side of shell:

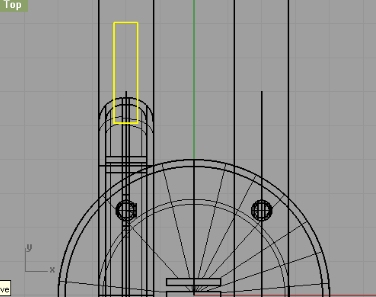

Create a rectangle:

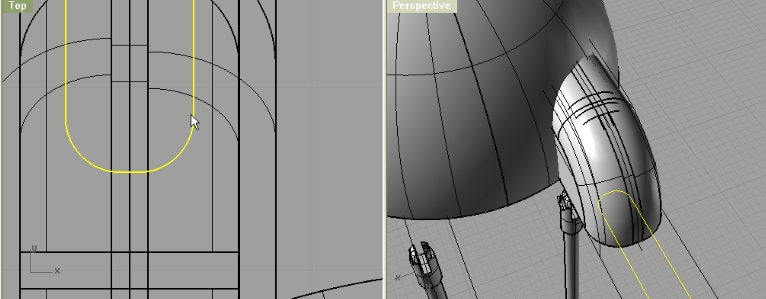

its edges with 0.3cm:

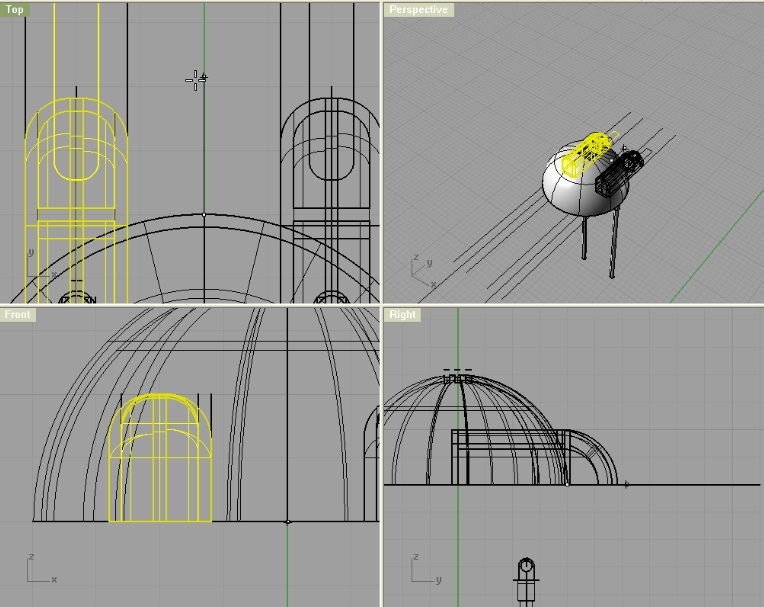

Now, mirror the “handle”:

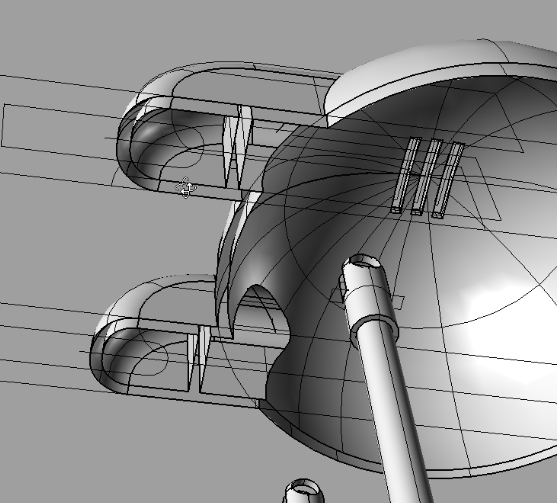

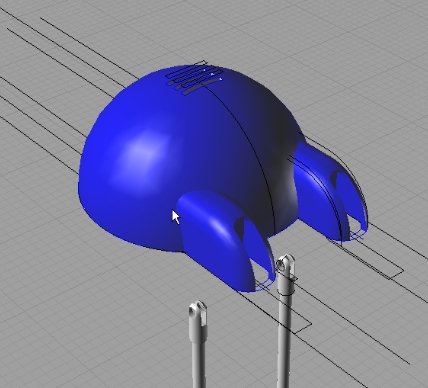

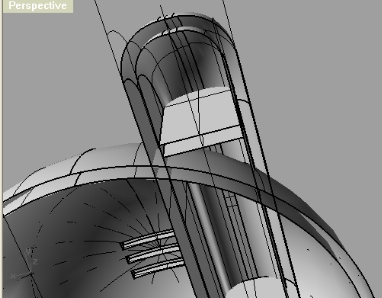

Trim those two handles with semi-sphere part:

Using , duplicate border.

Using create a surface:

those surfaces:

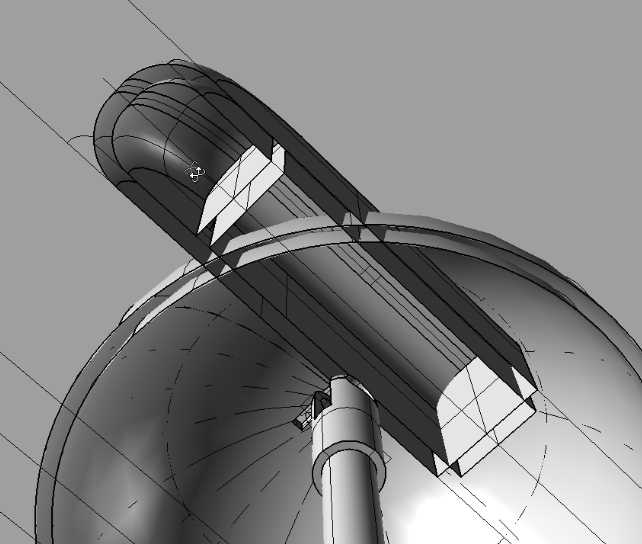

Now, using that rectangle that we filleted corners, extrude and trim with our object:

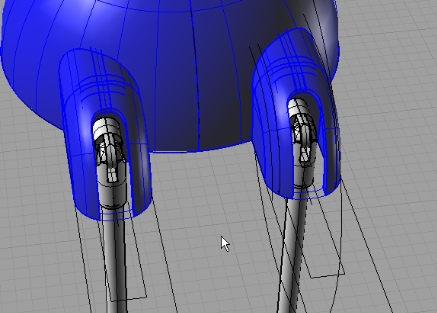

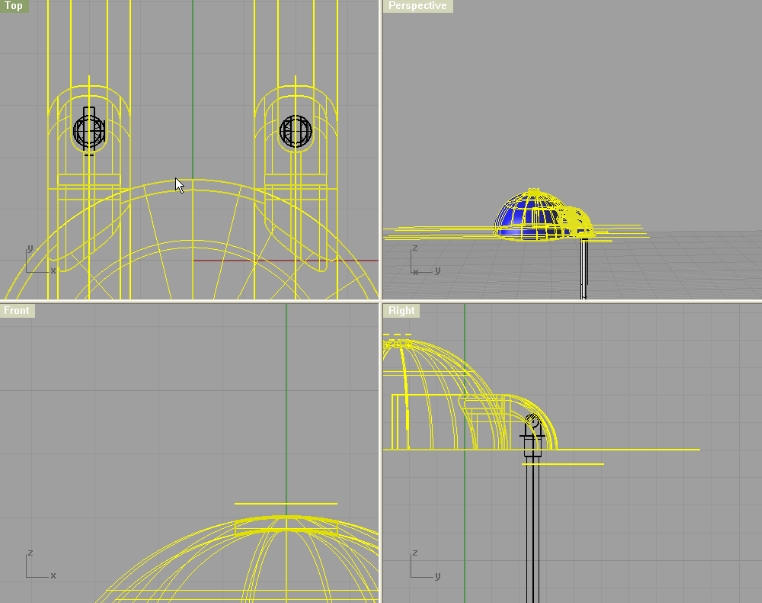

Now, finally, lets position our object so it looks connected to the “legs”:

Create two more circles, and make them the same radius/diameter as that one on the leg (check the image):

Using polyline or just line, connect those two circles Quad points:

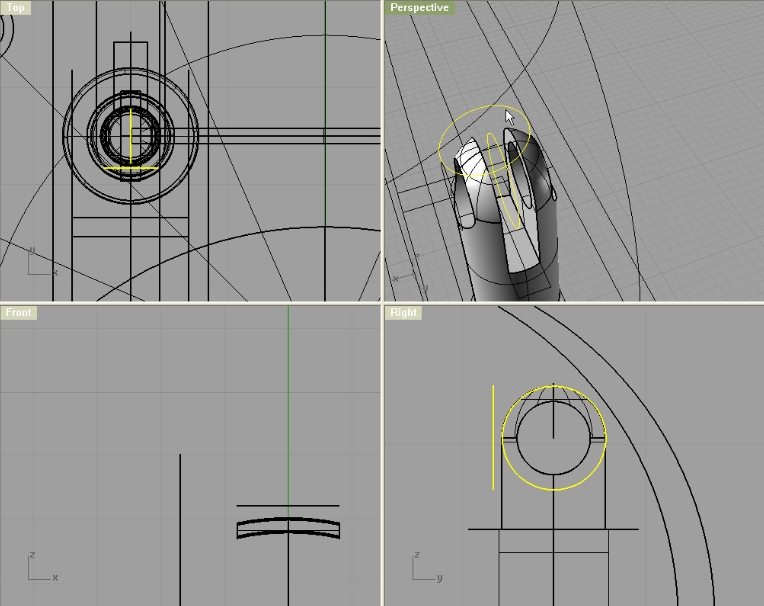

Trim off the left half of circle, and close with line or simply with CloseCrv command:

Extrude using BothSides option so it fits the gap:

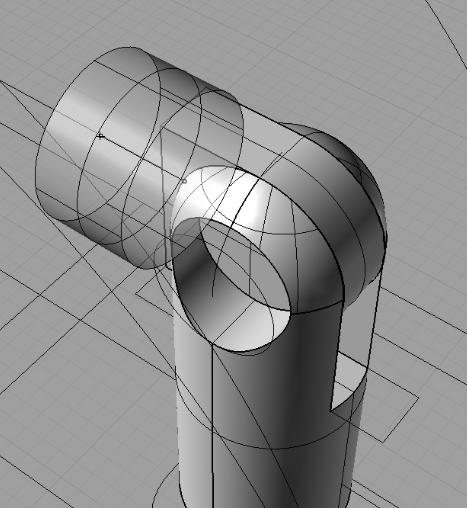

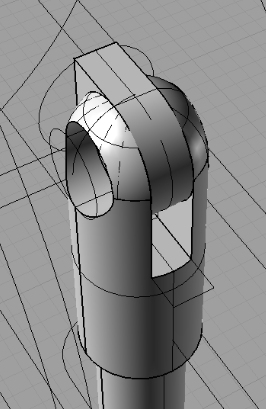

Now, extrude the circle with Cap option set to yes:

Mirror that part:

STEP 5

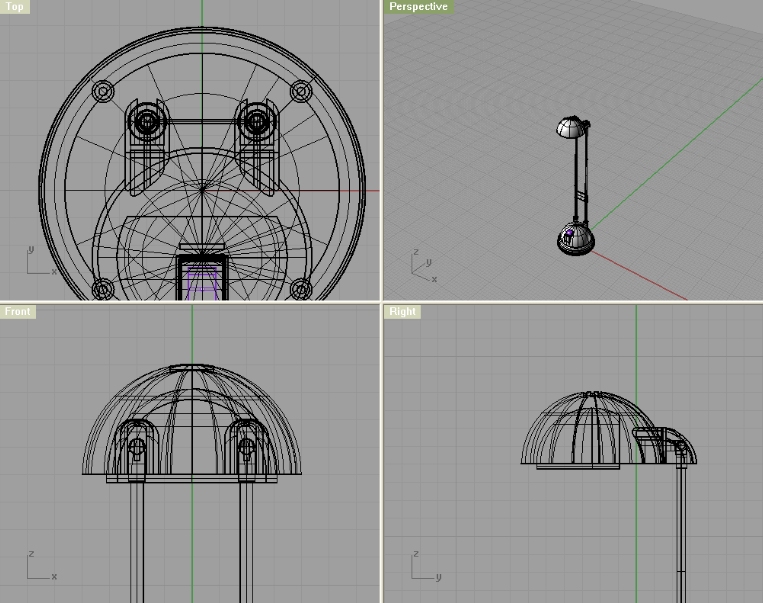

In this step we will make the interior for the lamp and the glass that covers it.

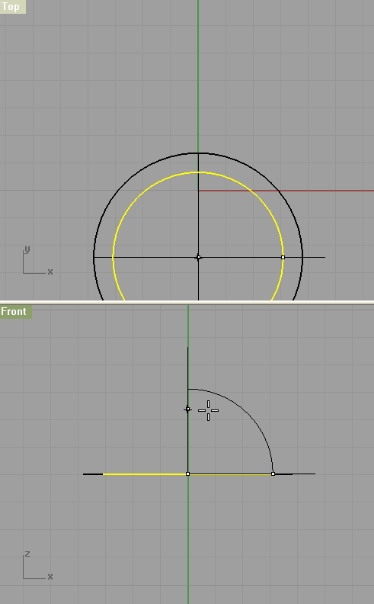

Select the circle we used earlier for creating the semi-sphere part:

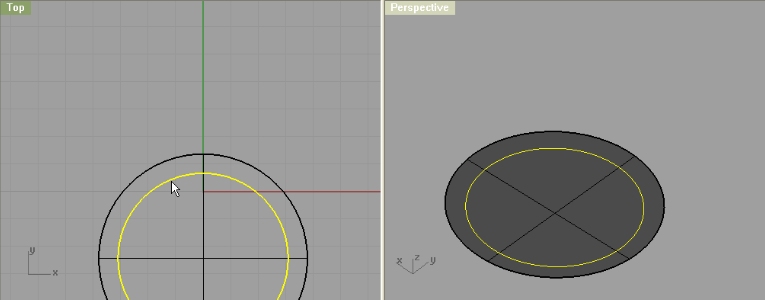

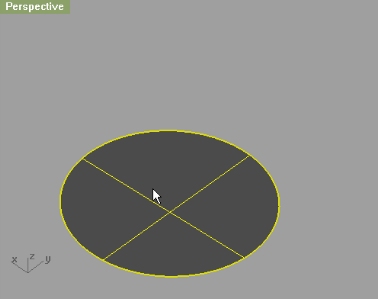

Offset it by 0.2cm towards inside and make a planarSrf out of it:

Now, offset the circle again, but this time by 0.7cm:

Make an arc in that circle:

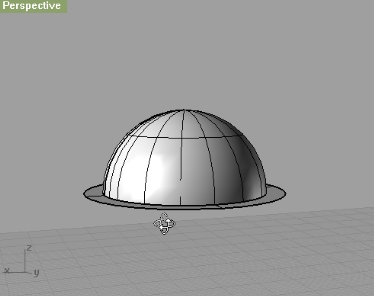

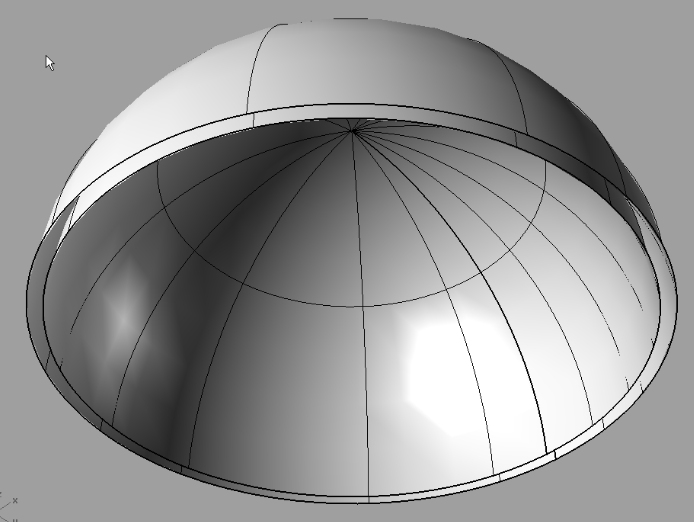

And you know the drill, make a surface (semi-sphere) with sweep1 command:

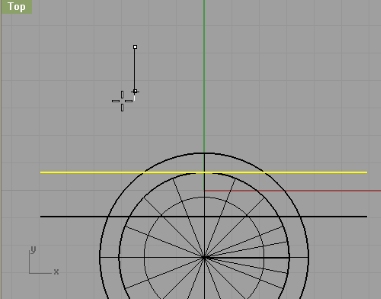

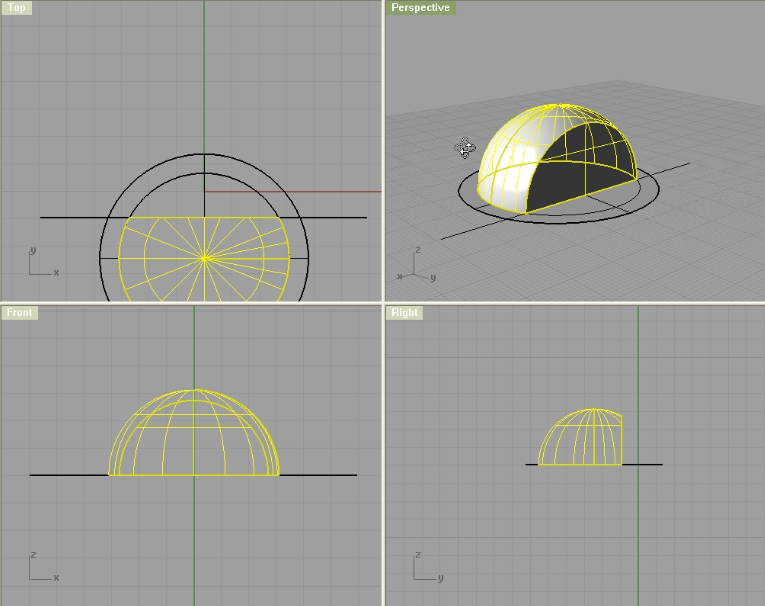

Now, create a line, and position its mid point to the quad of our semi-sphere. And then move it down (from top viewport) for 1.6cm:

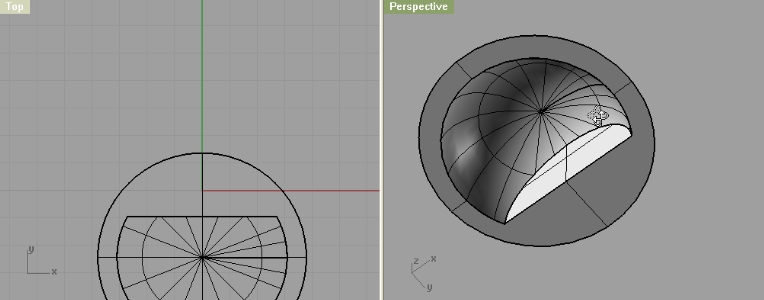

Extrude, and trim with semi-sphere:

Now, trim the line with circle:

You can delete that circle surface, we will make another one π

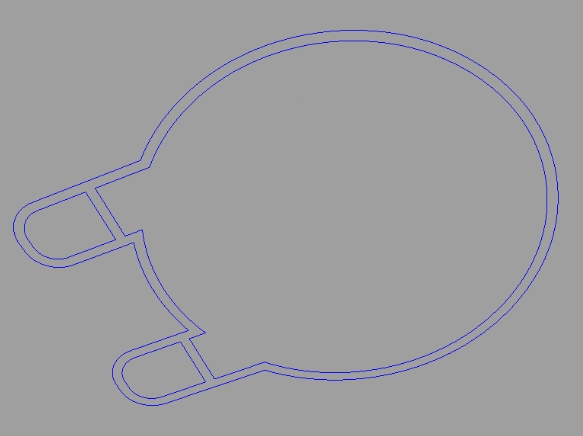

Select outer circle and inner 2/3 circle:

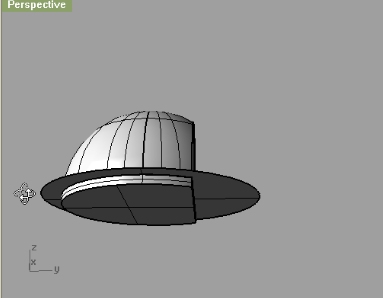

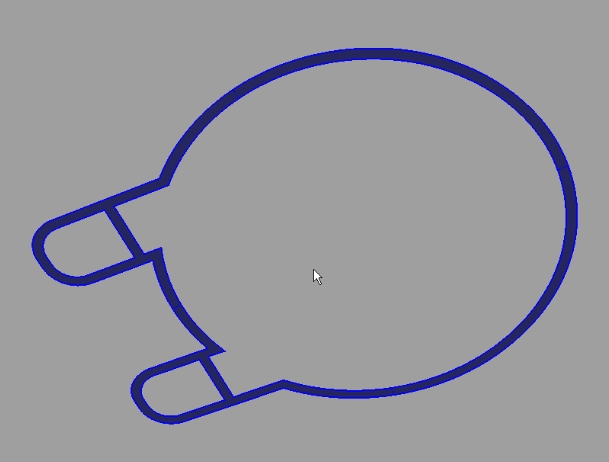

Now, using that 2/3 circle, extrude it down by -0.3cm (minus is because we want to extrude down) and have the Cap options set to yes:

And that is it!!!!
