Modeling a Garden Shovel

STEP 2

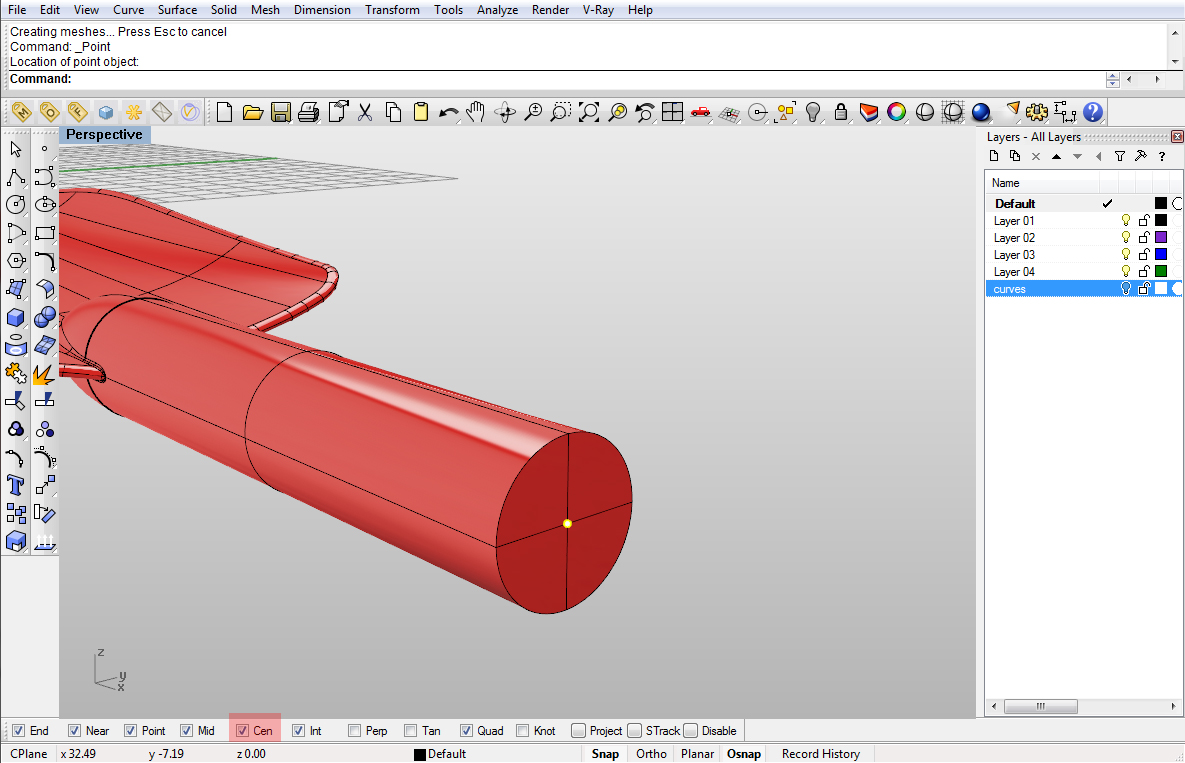

In this step we will model a handle. With command create a point on the back of the handle part we have. Position it in the center by using Cen OSnap option:

Image 20

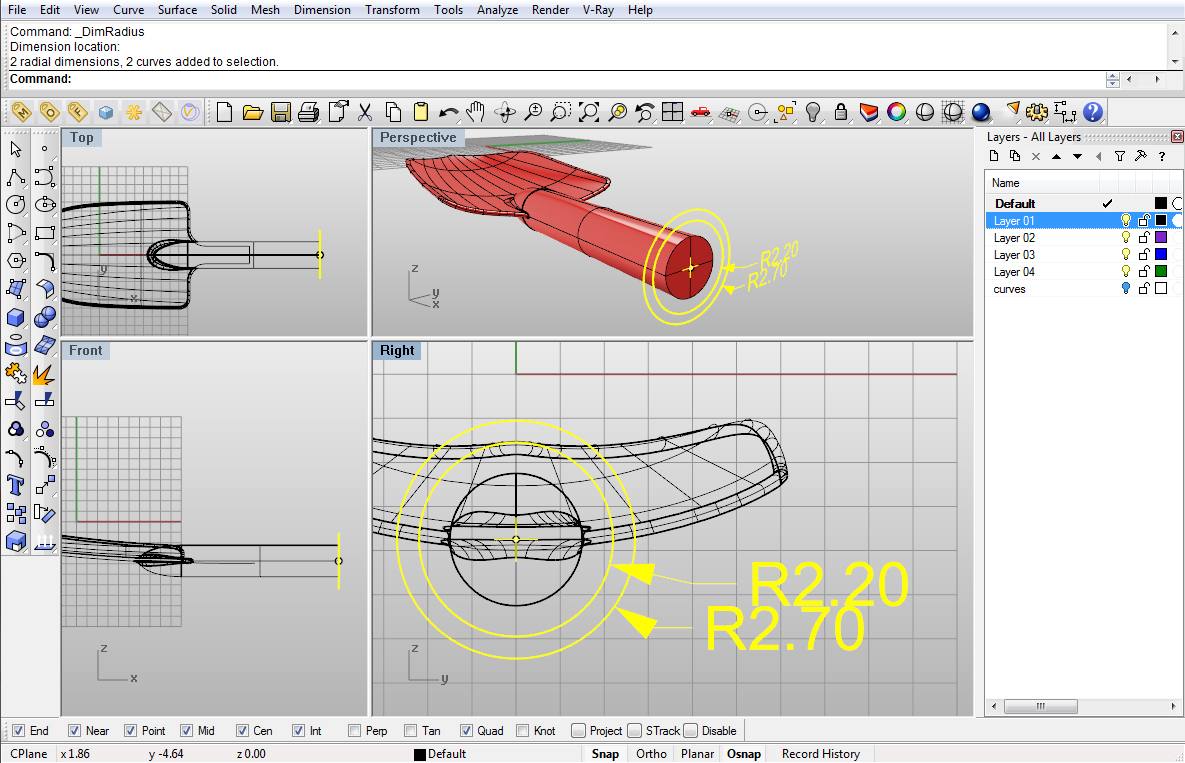

Now, lets go to Right viewport and create two circles using that point we just created as center. If you haven’t already turn on the Point OSnap option. Make one’s radius 2.2 units, and the others’ 2.7 units:

Image 21

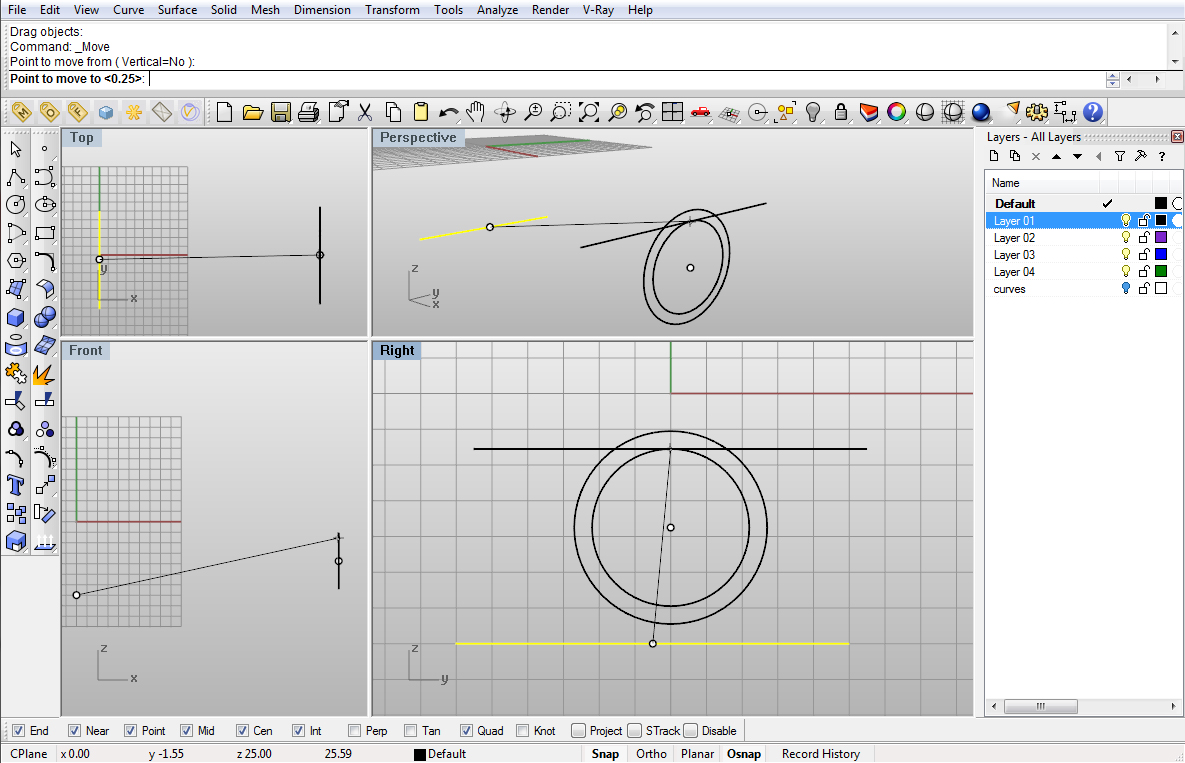

Using command, we will create a line anywhere in the Right viewport

Image 22

it with command, starting from the Line Mid point and move it to Quad point on the smaller circle.

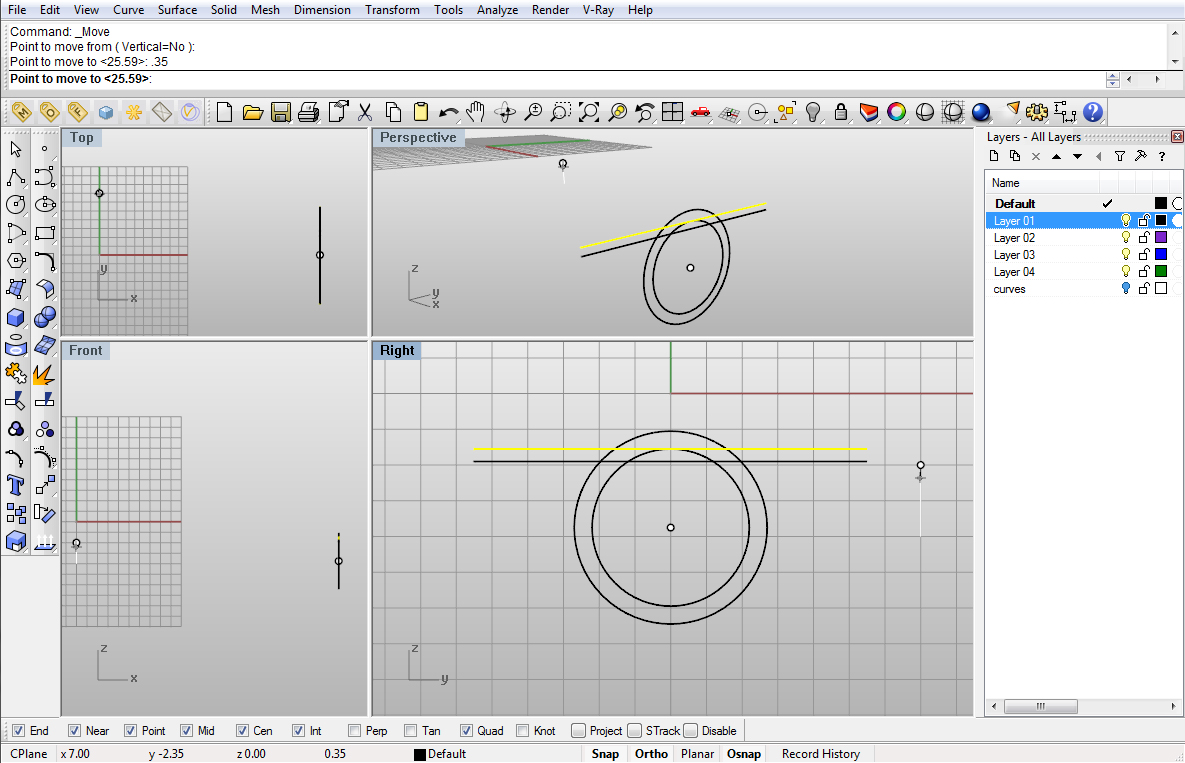

Now, use Move command again on that line, and move it down by 0.35 units. Start Move command, select the line, input 0.35 in line command, press enter and move down. To move it perfectly straight down, use Ortho option in status bar:

Image 23

that line with command. Use two opposite Quad points on either circle to form mirror line:

Image 24

First, select all circles and lines, and start command. Start clicking on the parts we don’t need. The ones you don’t see in the picture below:

Image 25

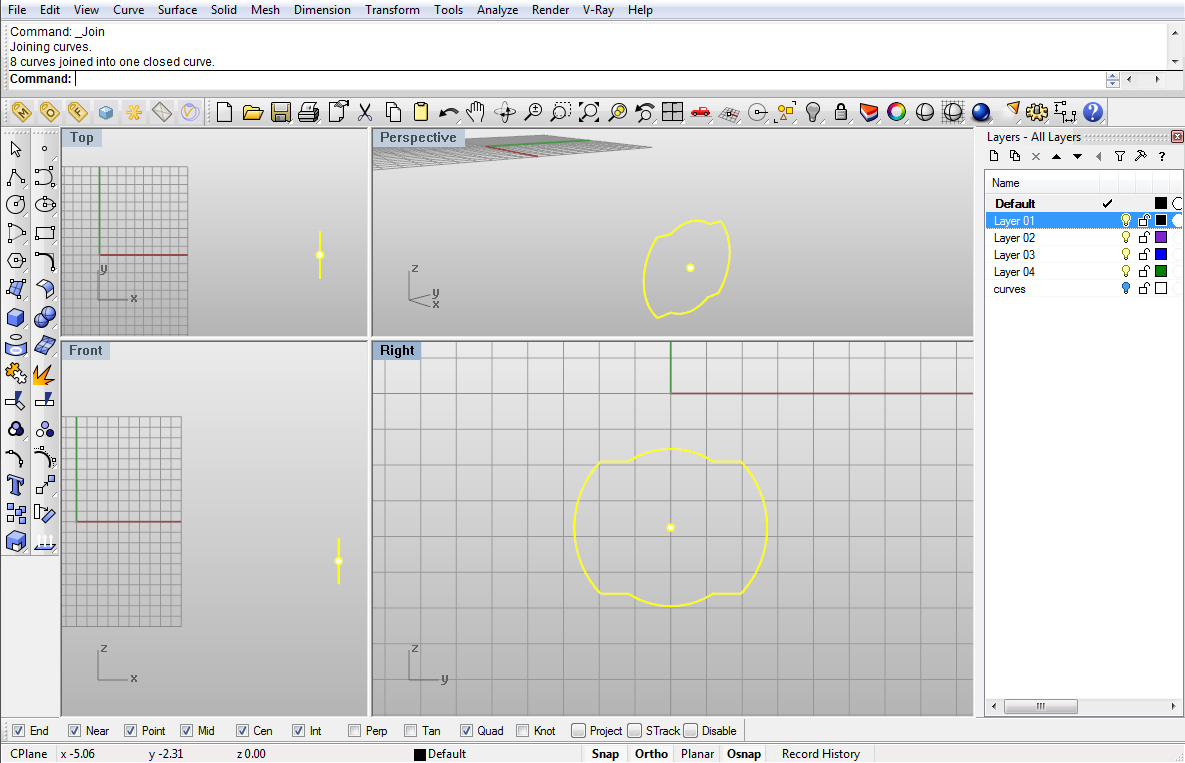

Don’t forget to all lines together. Move the polyline on the start of the handle like on the image below: Using command, fillet the corners with 0.2 units.

Image 26

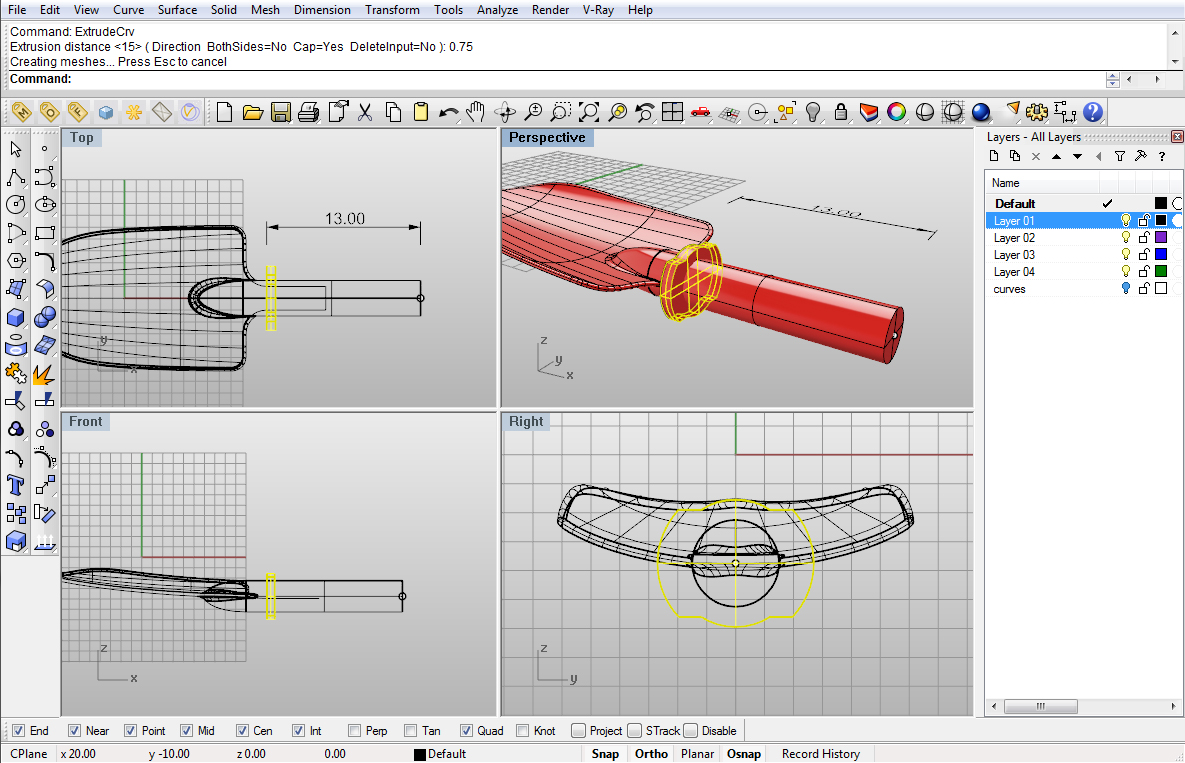

Extrude that closed curve by 0.75 units:

Image 27

Using command, offset the edge by 0.2 units:

Image 27

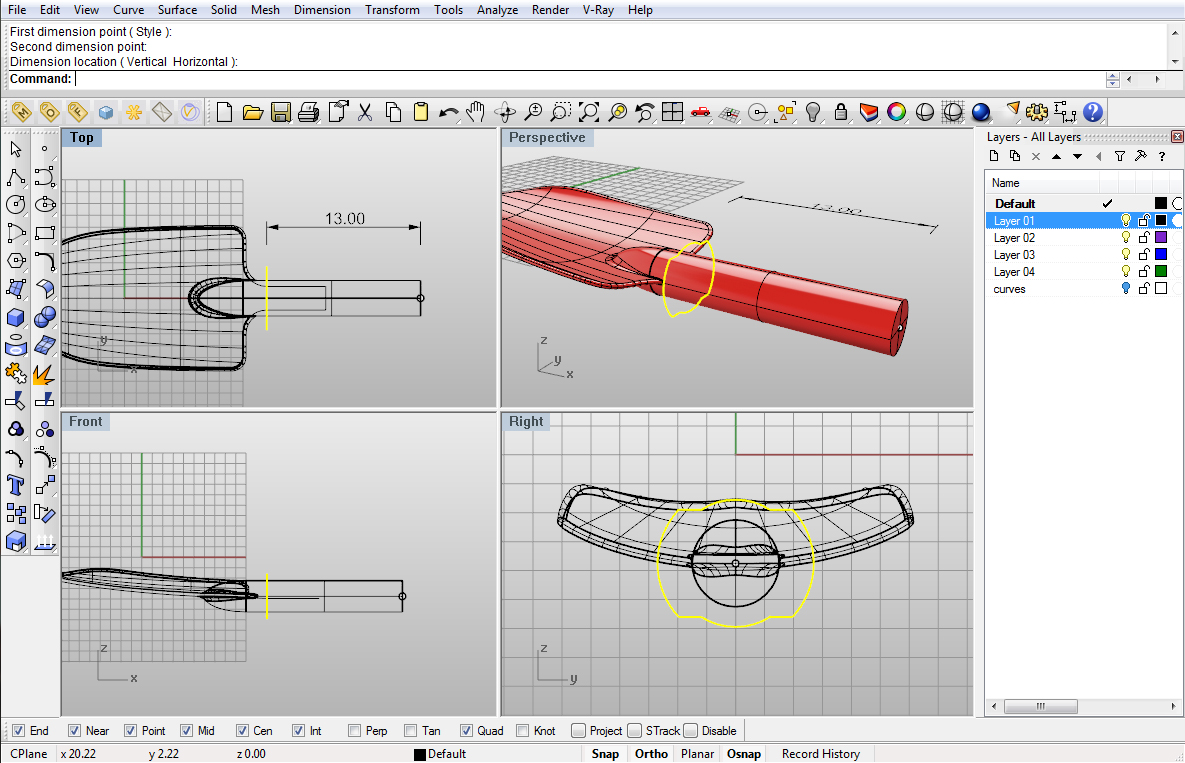

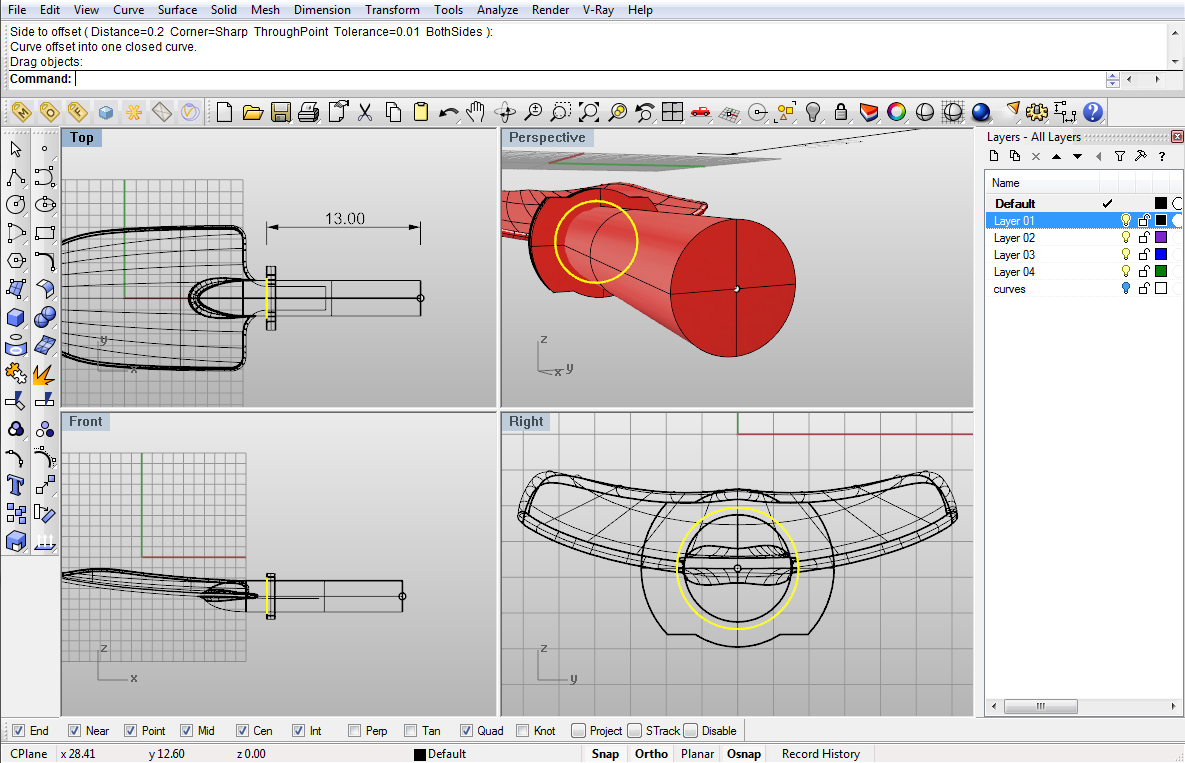

Move that circle by 13 units left like the curve before:

Image 28

Move that circle right by 0.1 units. Why? Because right now it is right on the same position like the ring surface, and when we extrude this circle, we will have two surfaces on the same place, and that will lead to some problems in the future when using booleans.

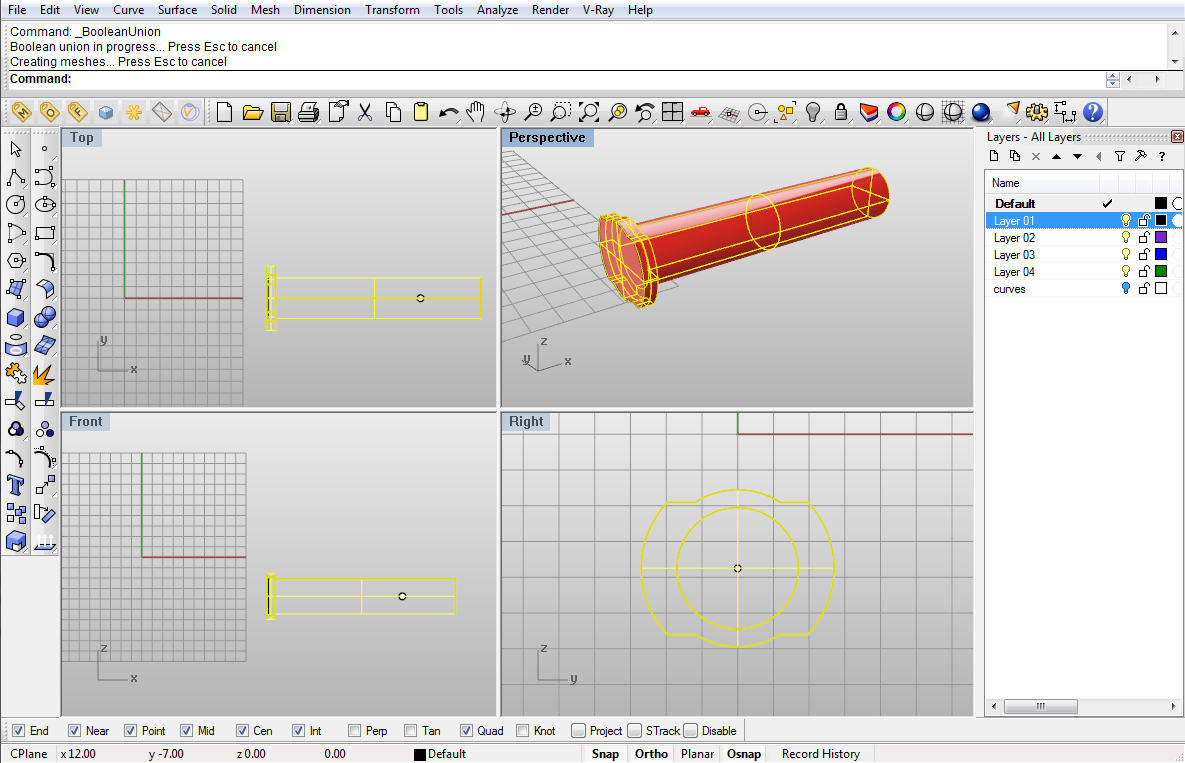

So, extrude that circle with command by 18 units and using connect with the ring.

Image 29

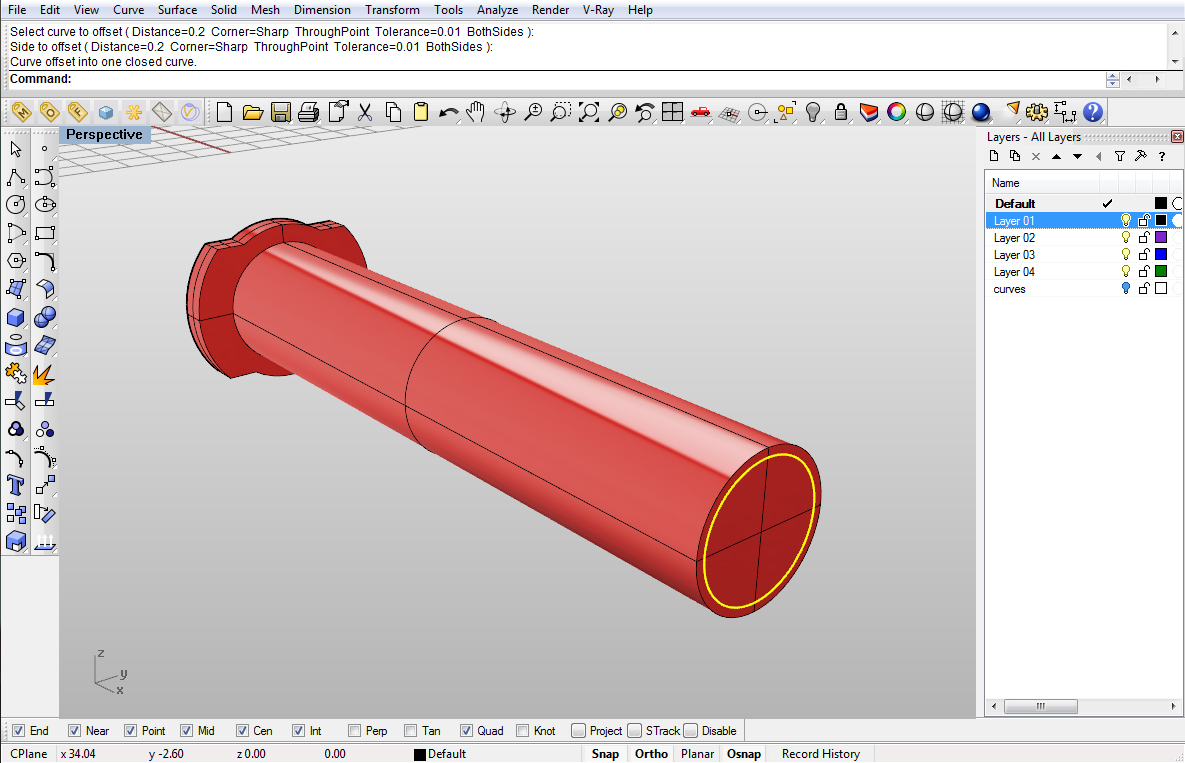

Offset the far left edge by 0.2 units towards inside:

Image 30

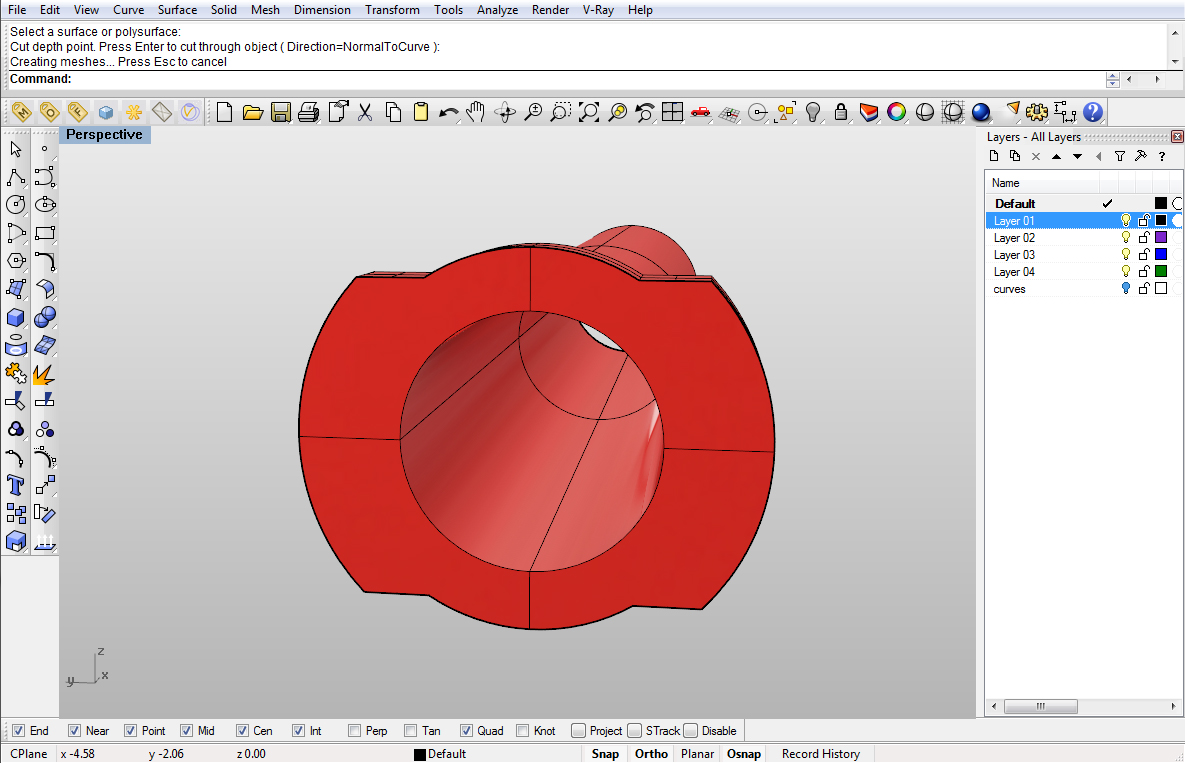

With command, create a hole using this circle through the handle:

Image 31

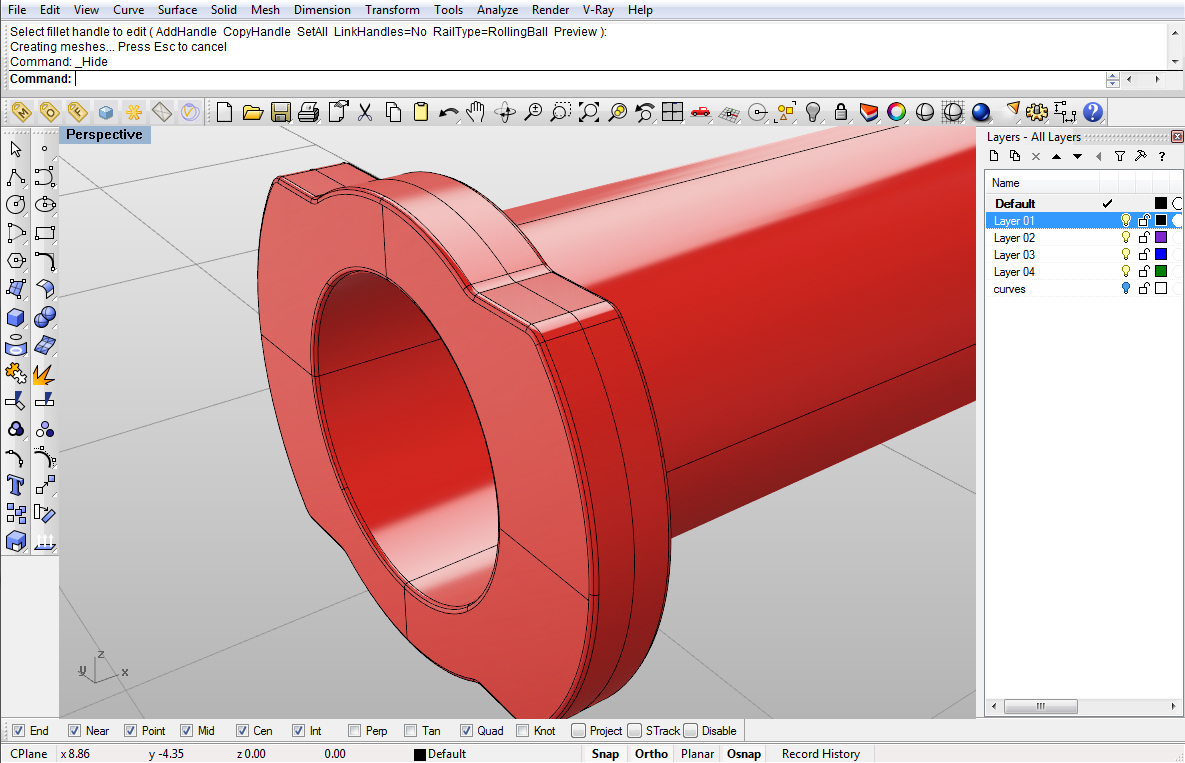

Now, using command select the edges on the ring part, and fillet with 0.05 units as radius;

Image 32

Using command extract this surface:

Image 33

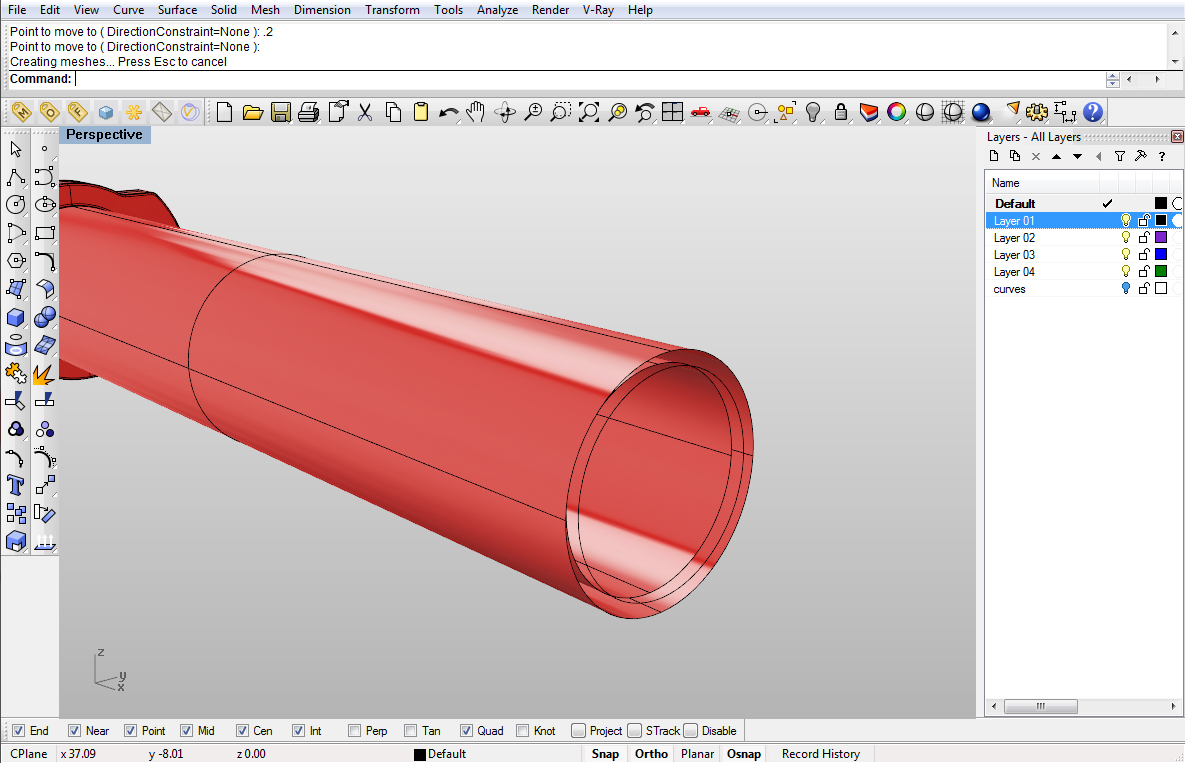

the surface, and using move the inner edge by 0.2 units towards inside:

Image 34

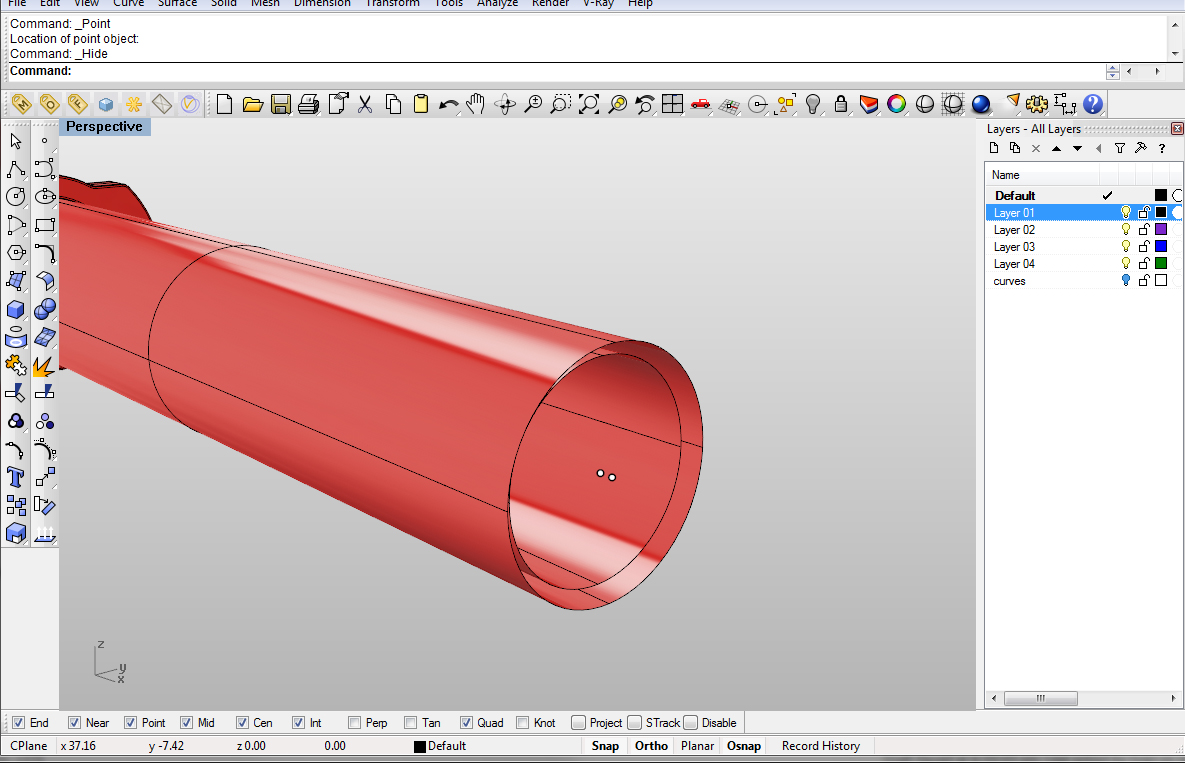

Now, using Cen OSnap option, place two points with Point command in the center of both circle edges:

Image 35

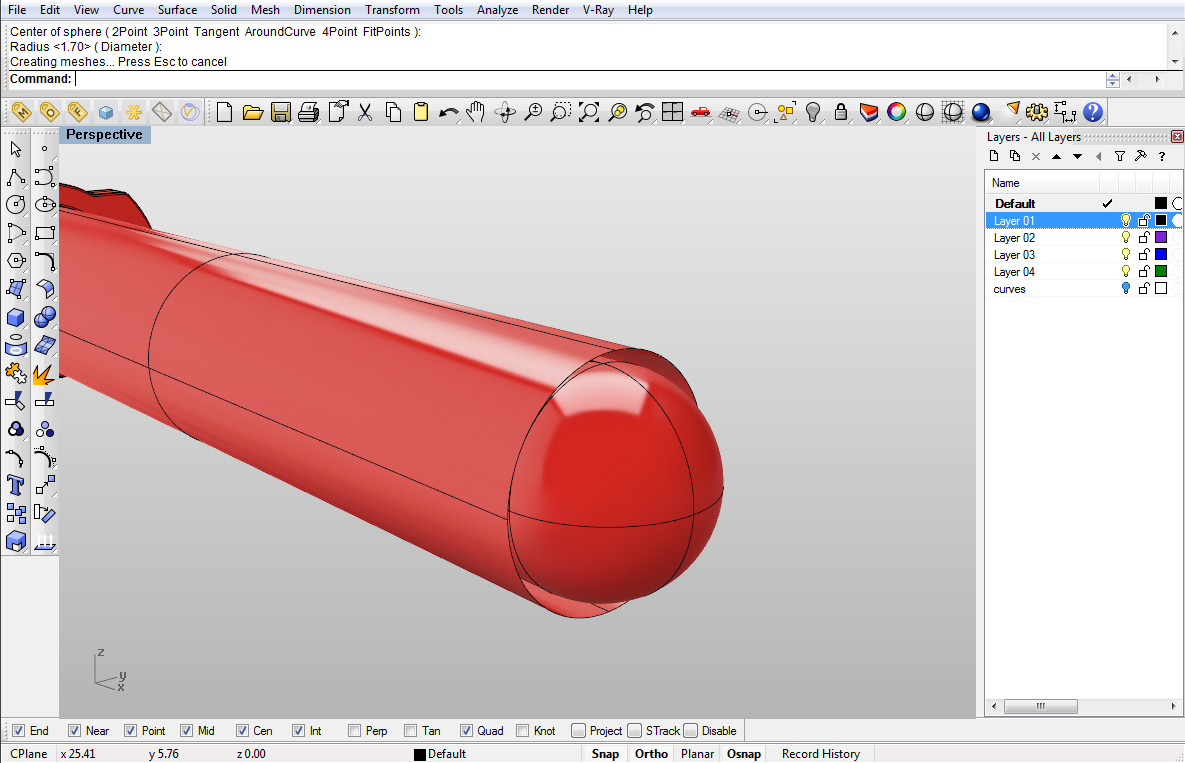

With command, create a sphere with its center in the Point, and for the second point click on the end/quad of tube circle edge:

Image 36

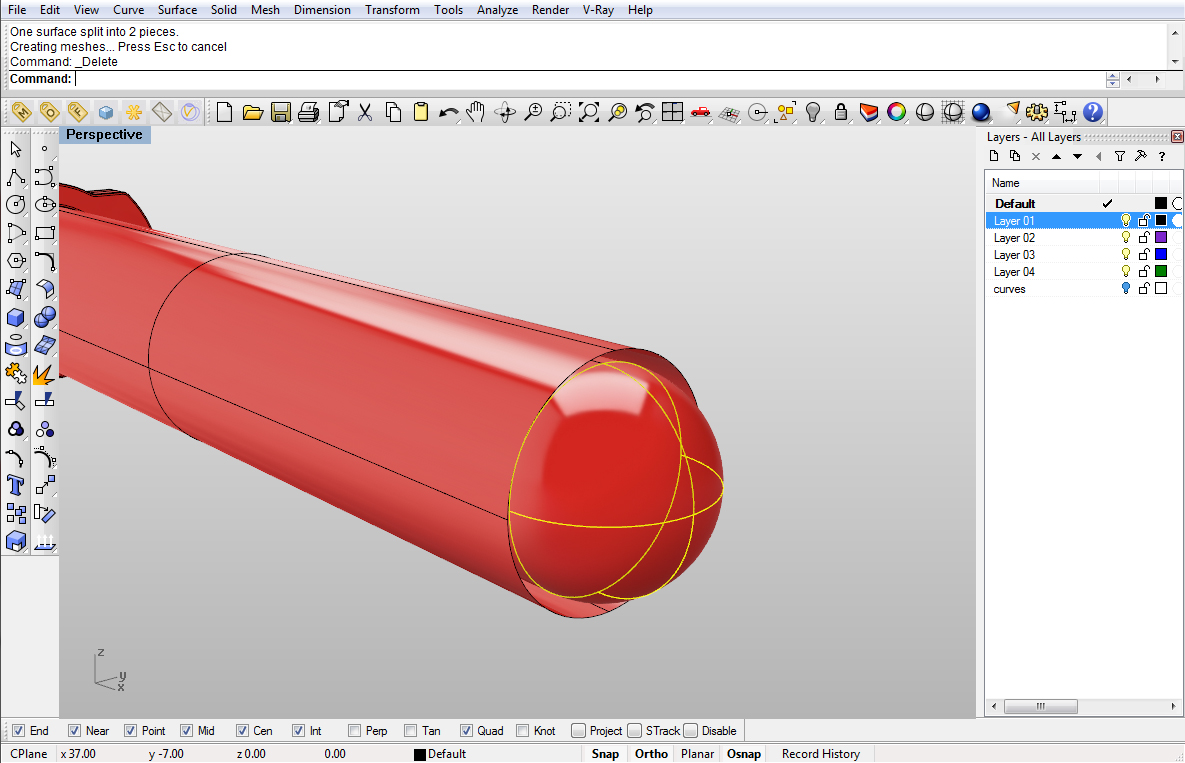

Using   we will split this sphere into half, and delete the inner half:

Image 37

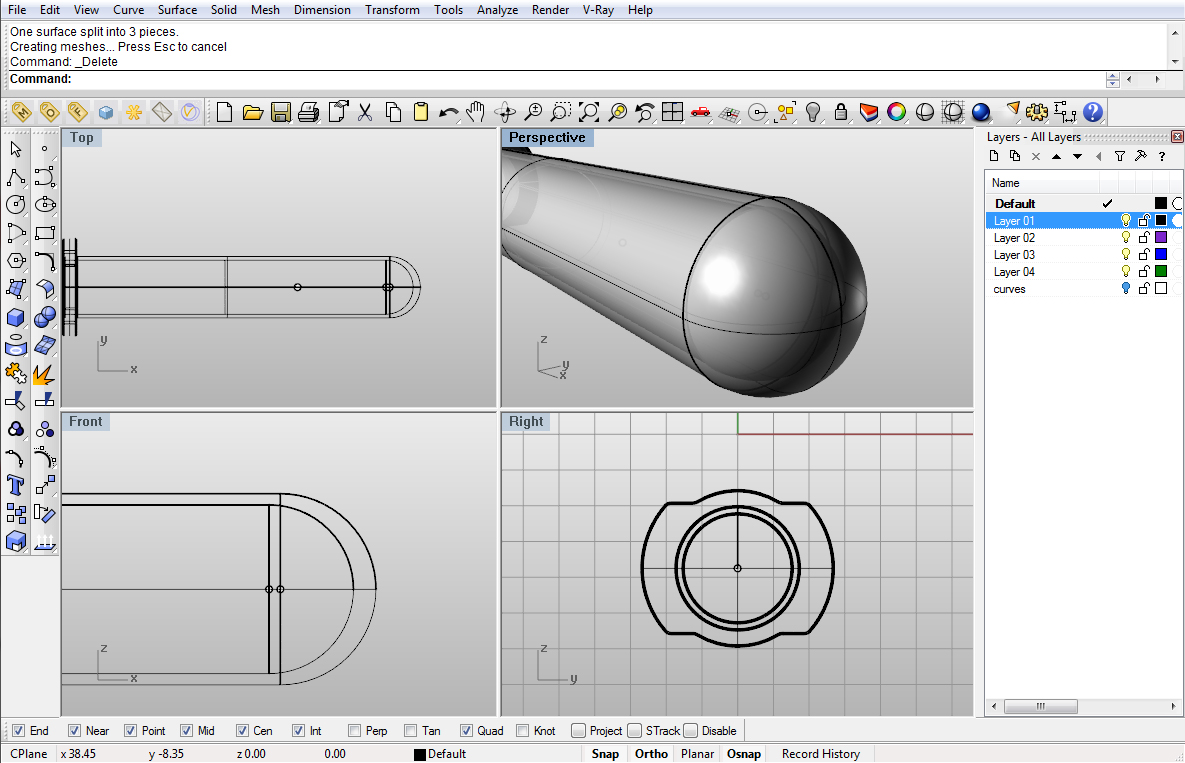

Do the same for the bigger edge.

Image 38

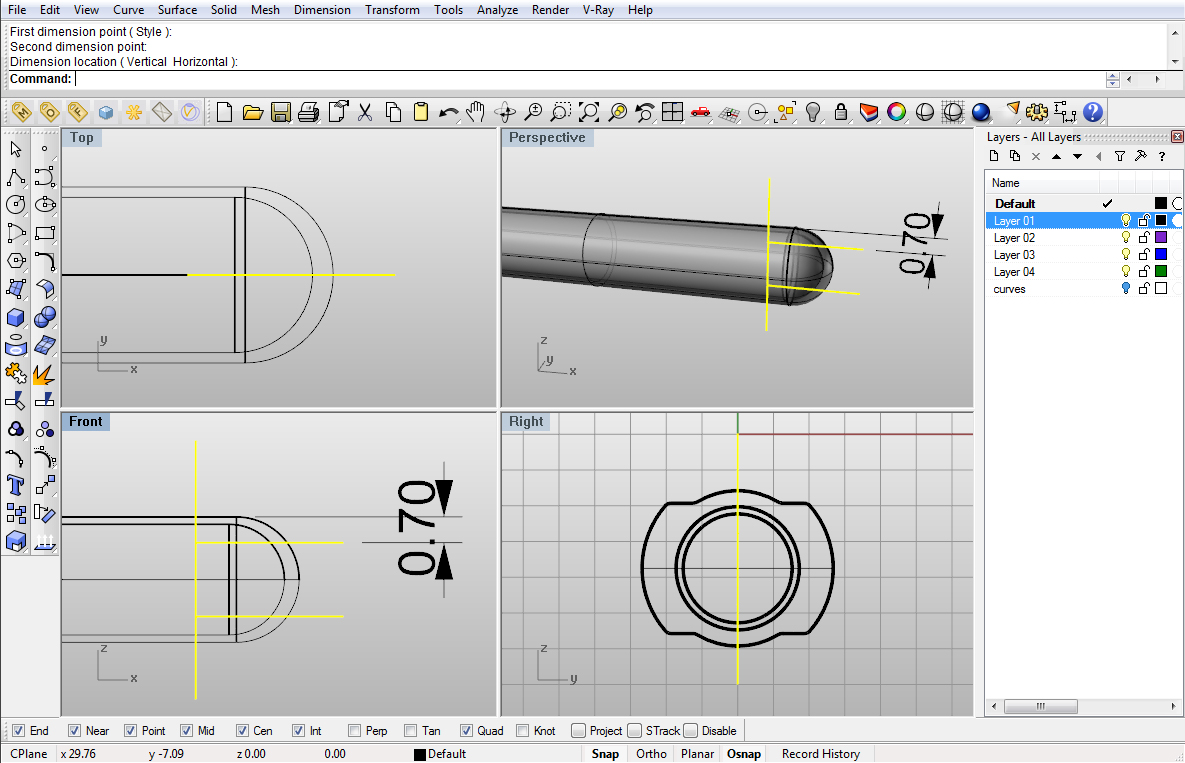

Using Line command, create three lines like this:

Image 39

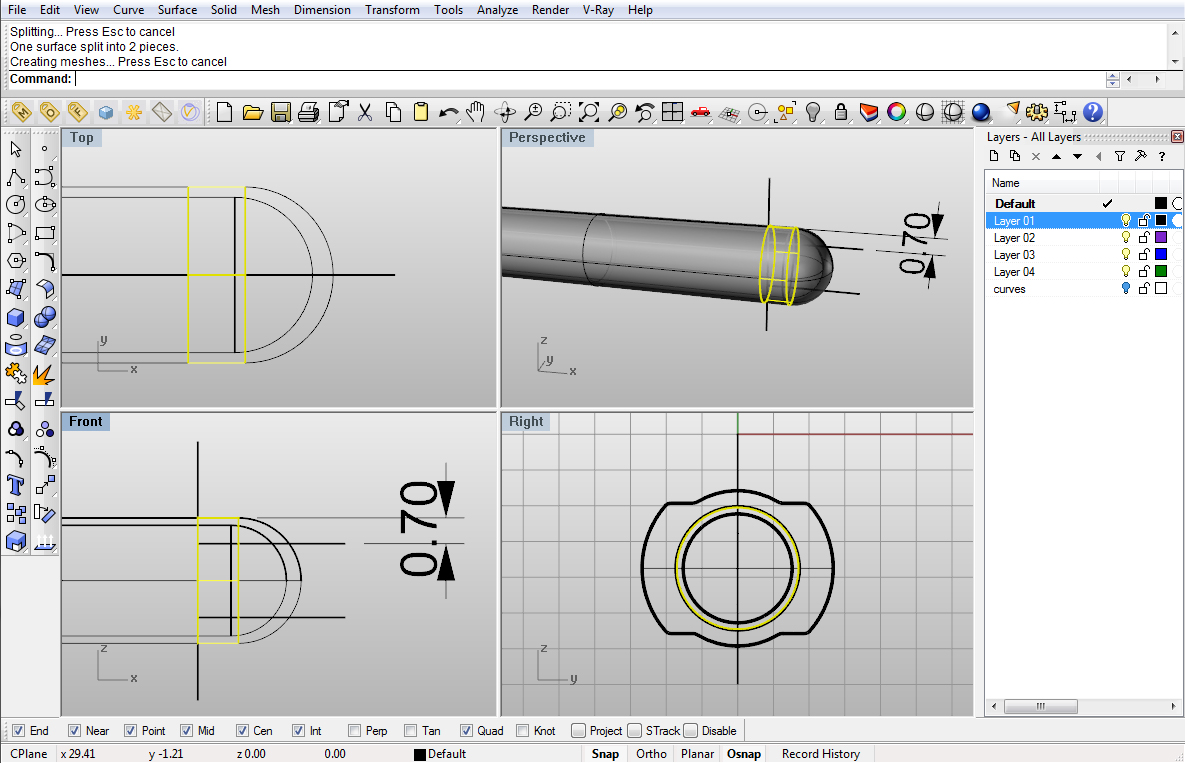

Using Explode command explode the handle surfaces, and with the vertical line split outer tube surface:

Image 40

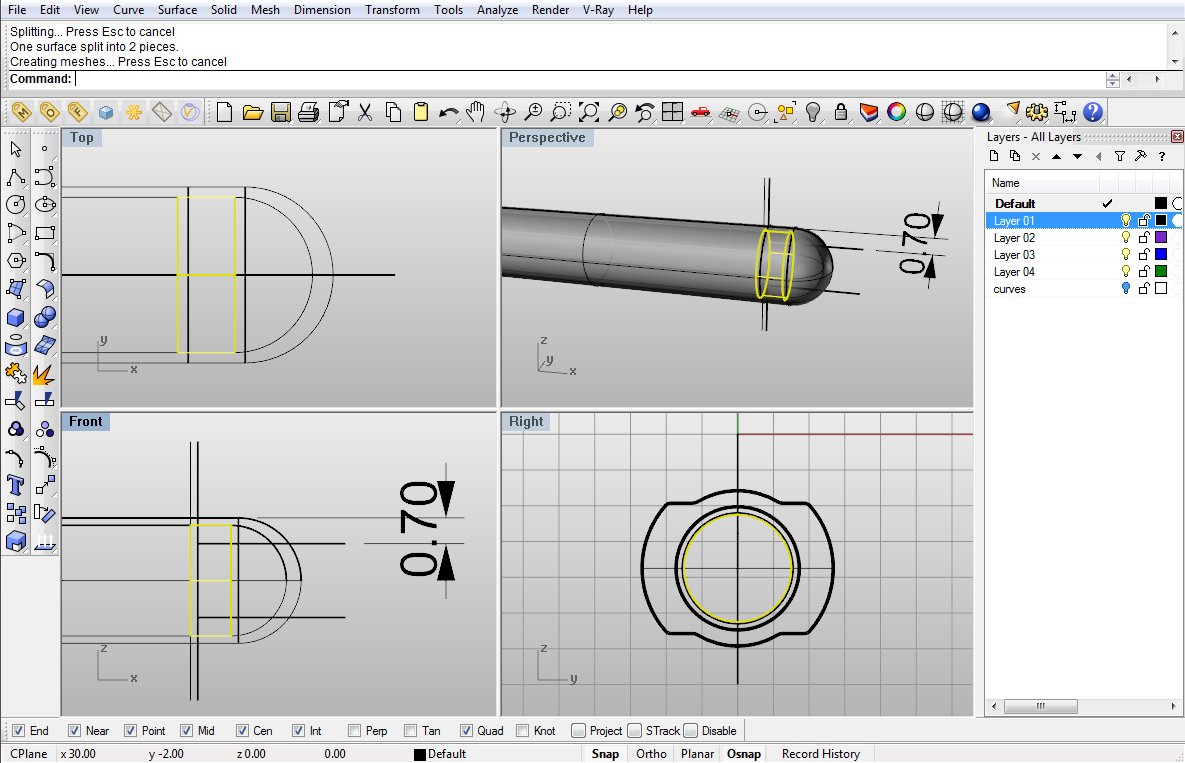

Offset line to the left by 0.2 units, and using that offset line split the inner tube:

Image 41

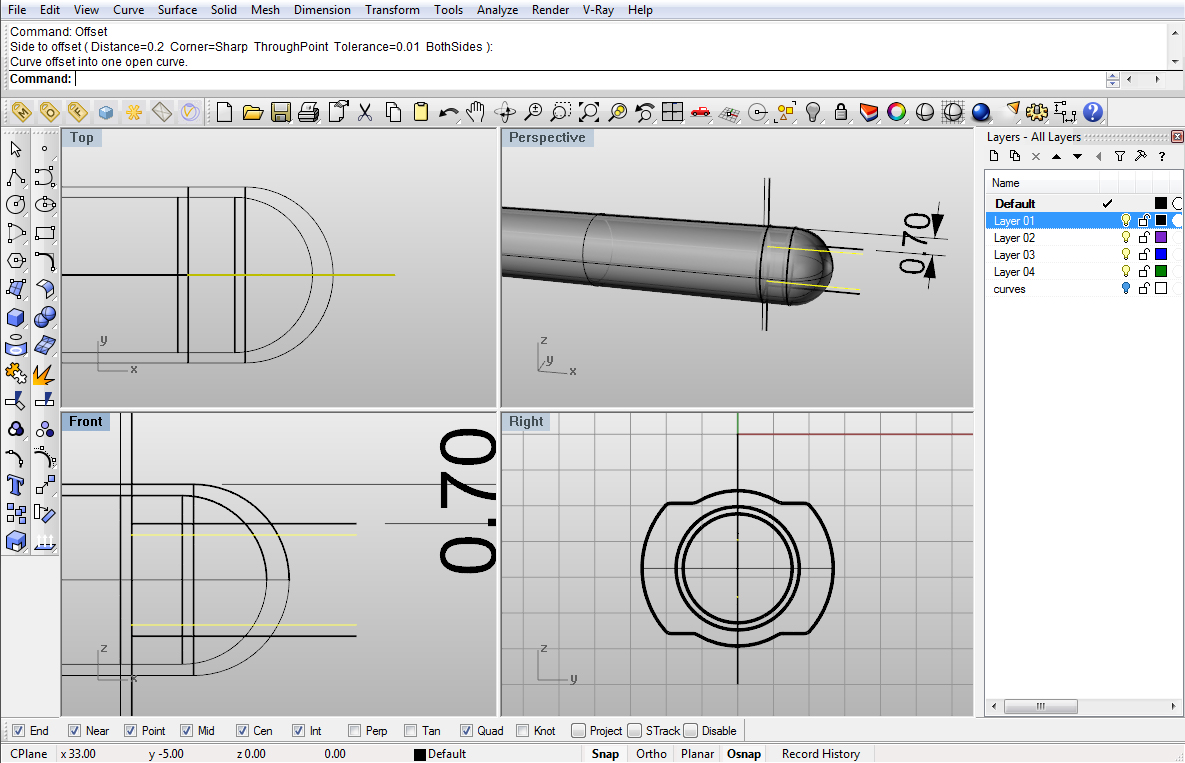

Now Offset the two horizontal lines towards the center of the handle by 0.2 units:

Image 42

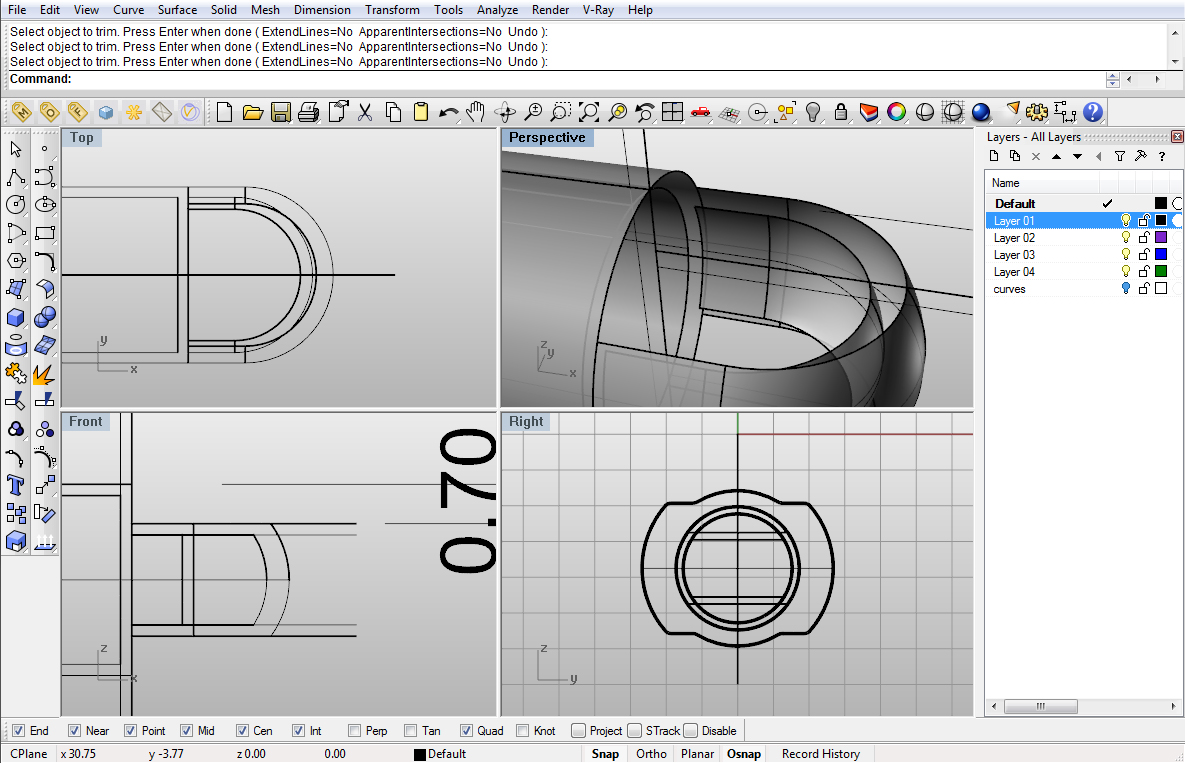

Again, with Split and/or Trim trim the parts for the holes:

Image 43

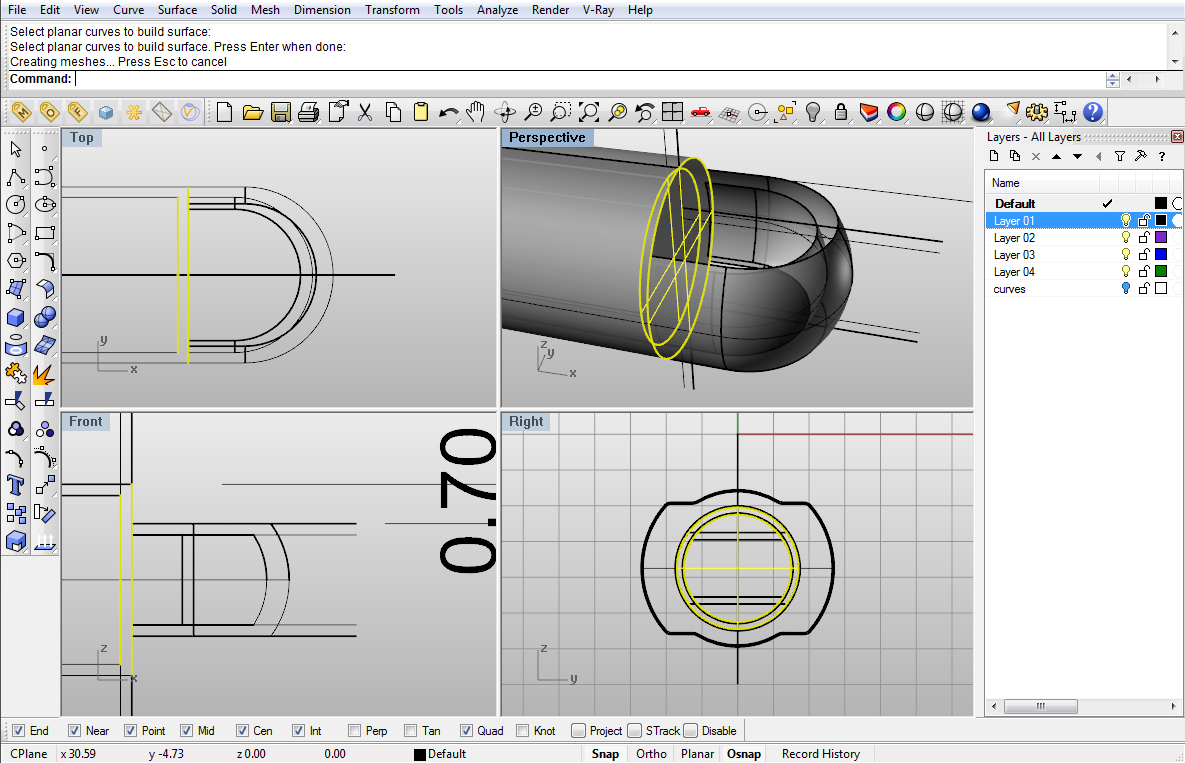

Using PlanarSrf command “cap” the tubes:

Image 44

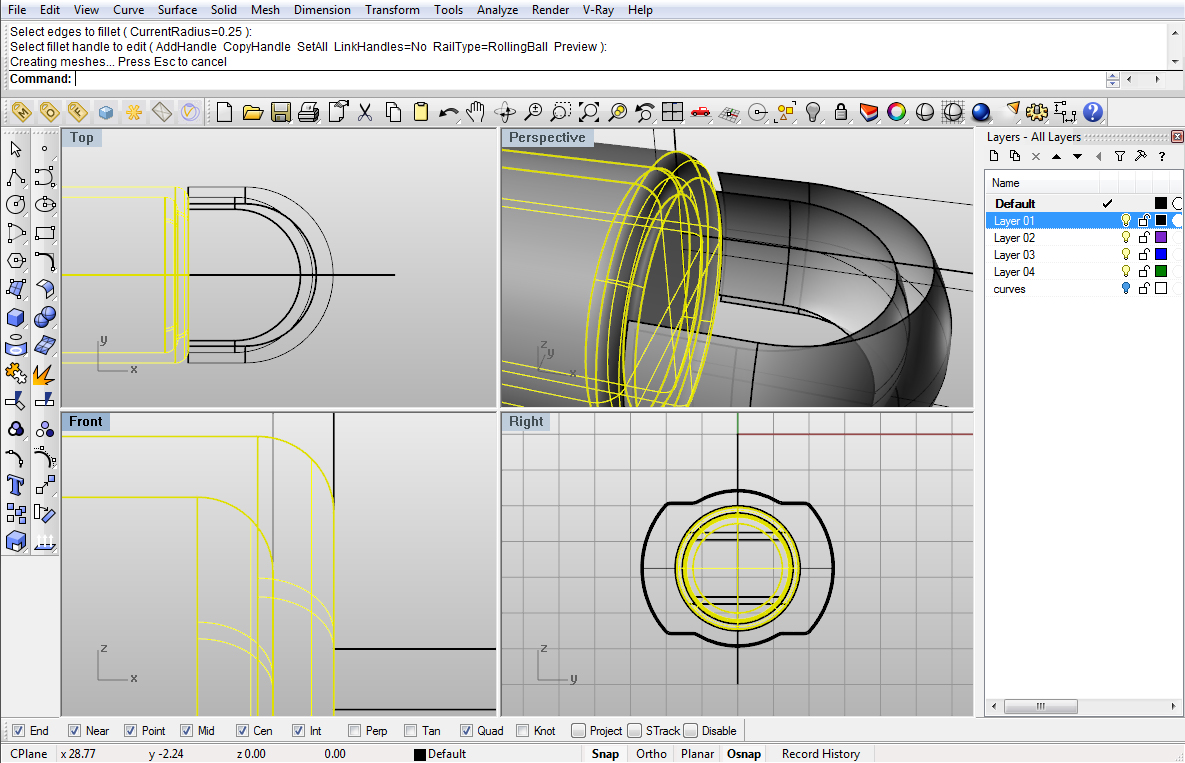

Using FilletEdge with 0.25 units as radii, fillet the edges where you previously created two planar surfaces:

Image 45

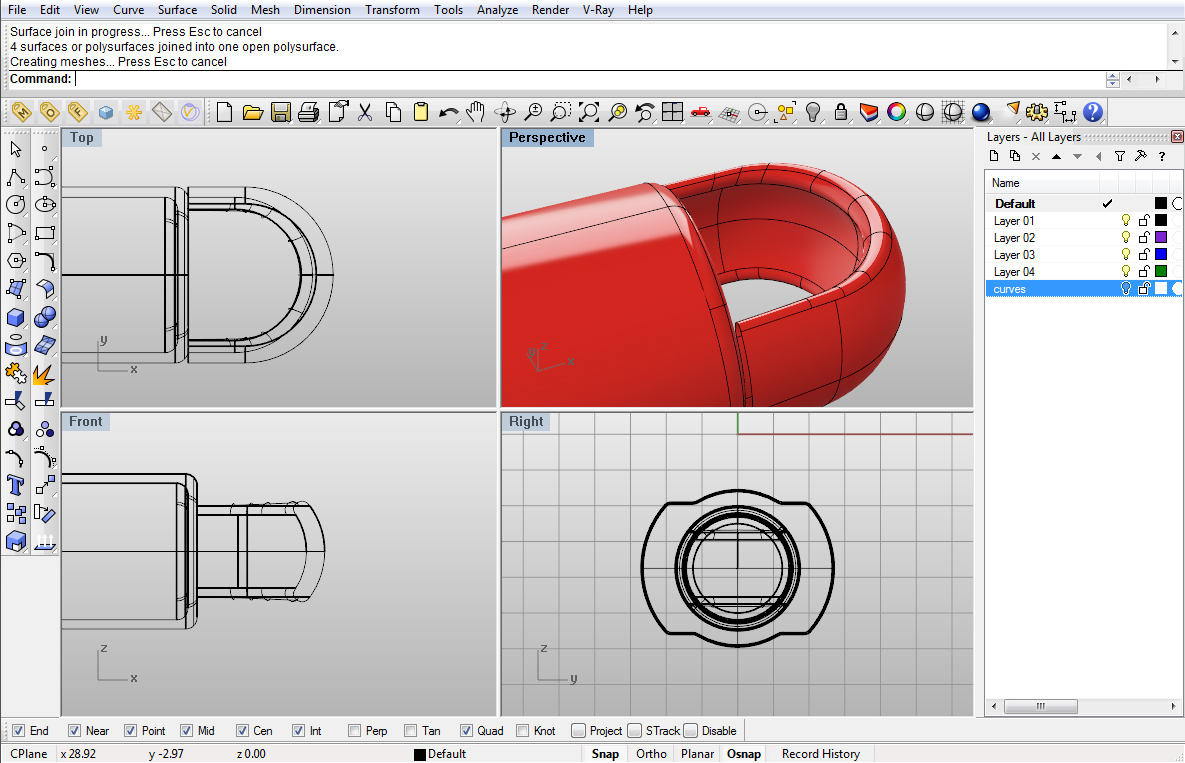

Using command, blend the two surfaces and fill the gap. Then with Join connect the surfaces:

Image 46

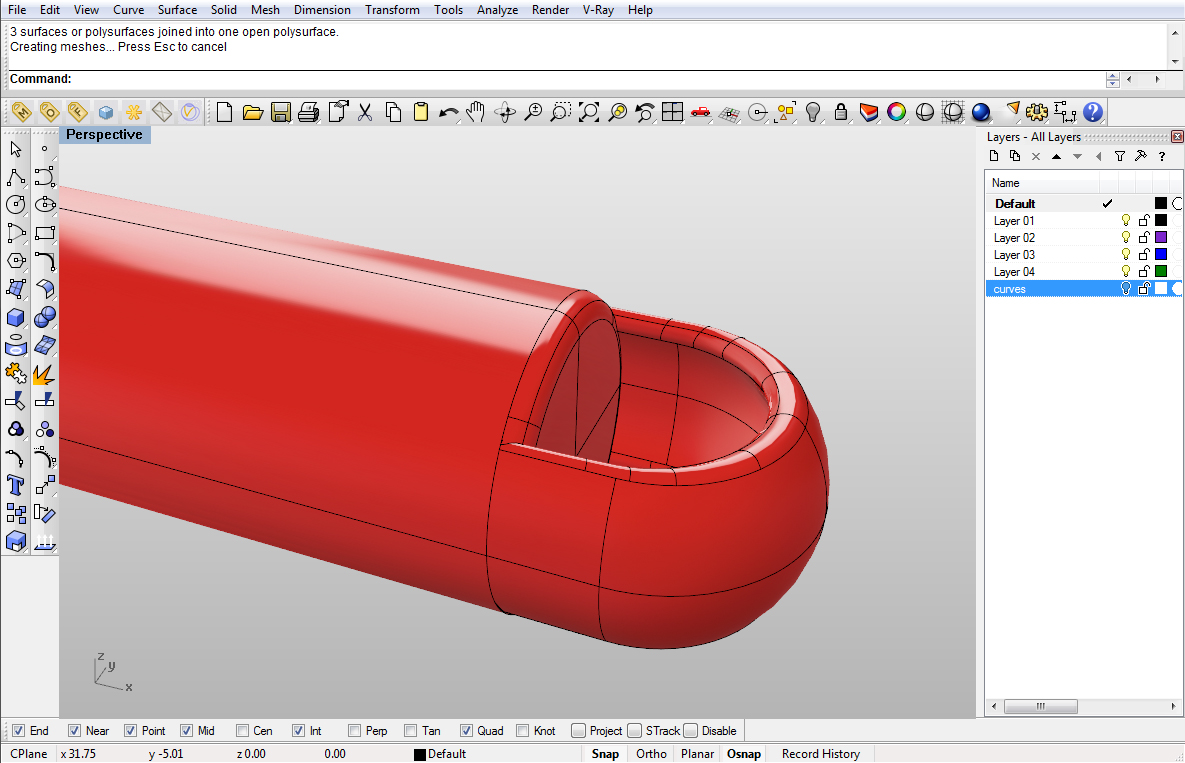

With Move command, move the part from its Quad point, to the tube Quad point.

Image 47

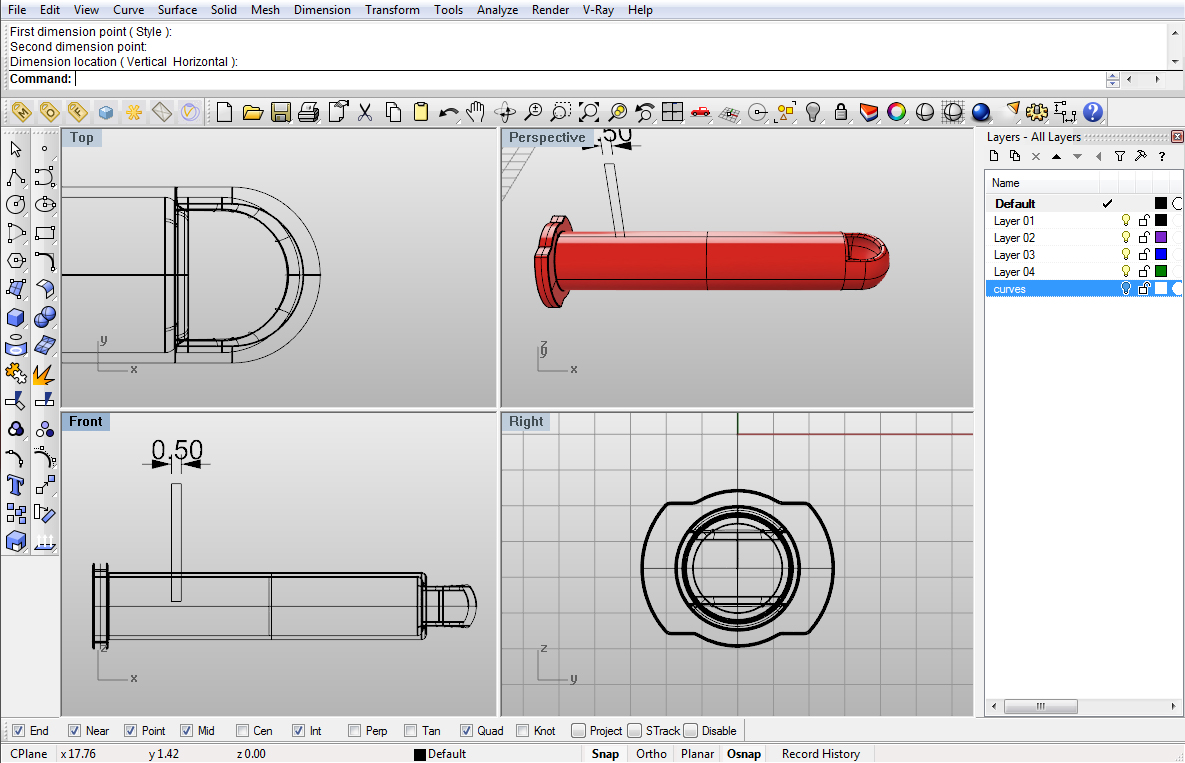

With command, create a rectangle 0.5 units wide, and position it like on the image below. For the height, use what ever as long as its upper part goes over the handle tube:

Image 48

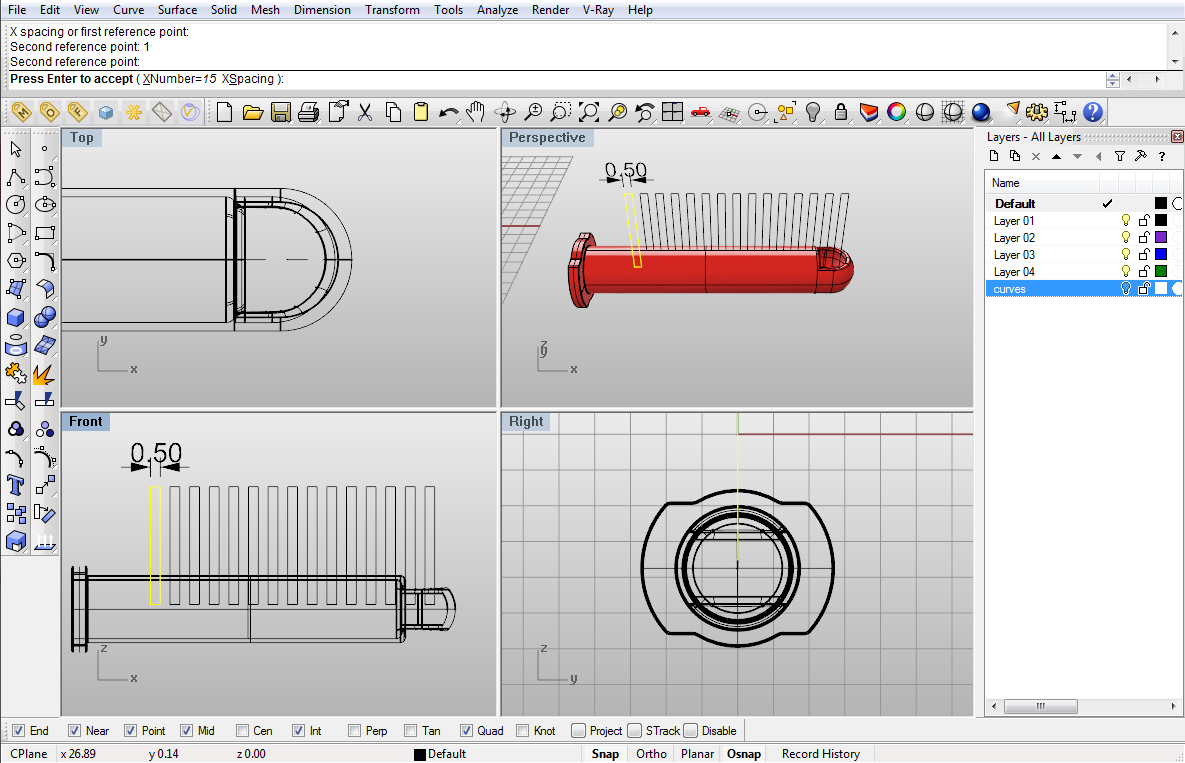

Now, with copy that rectangle along x axis by 1 unit:

Image 49

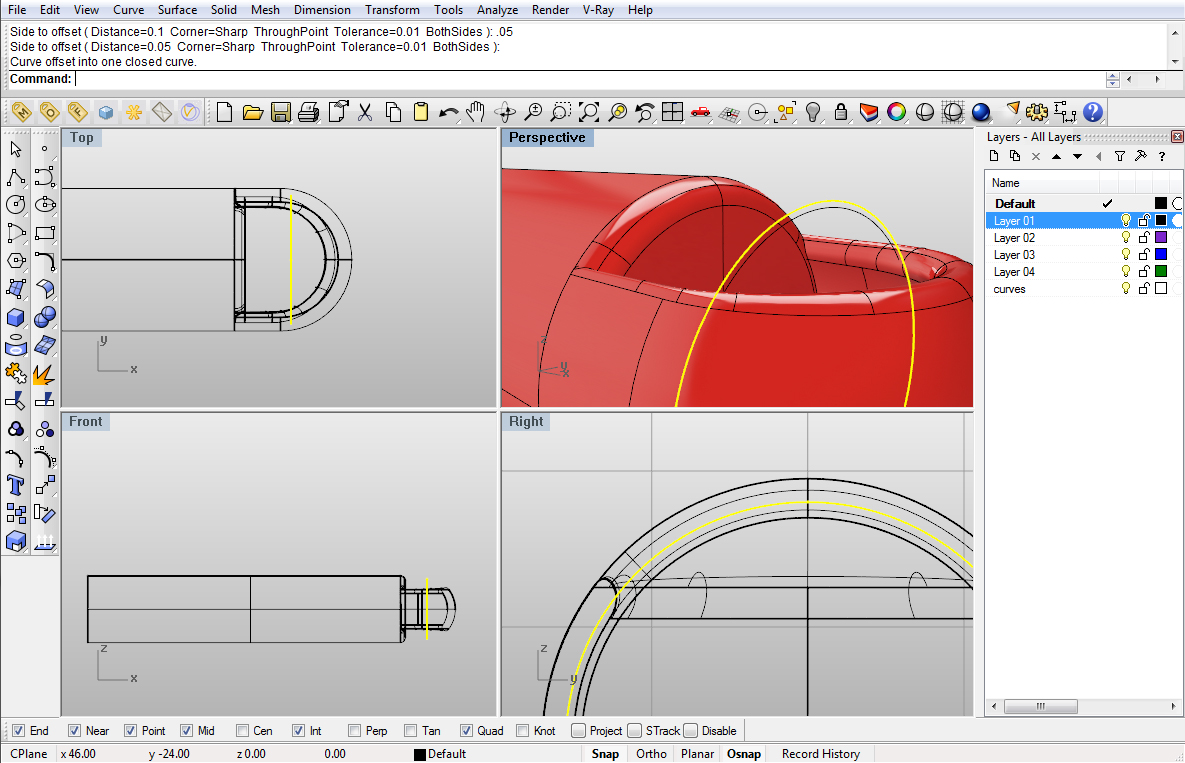

Next thing would be the grips. So, use one of the existing circles, and offset it by 0.1 units outwards:

Image 50

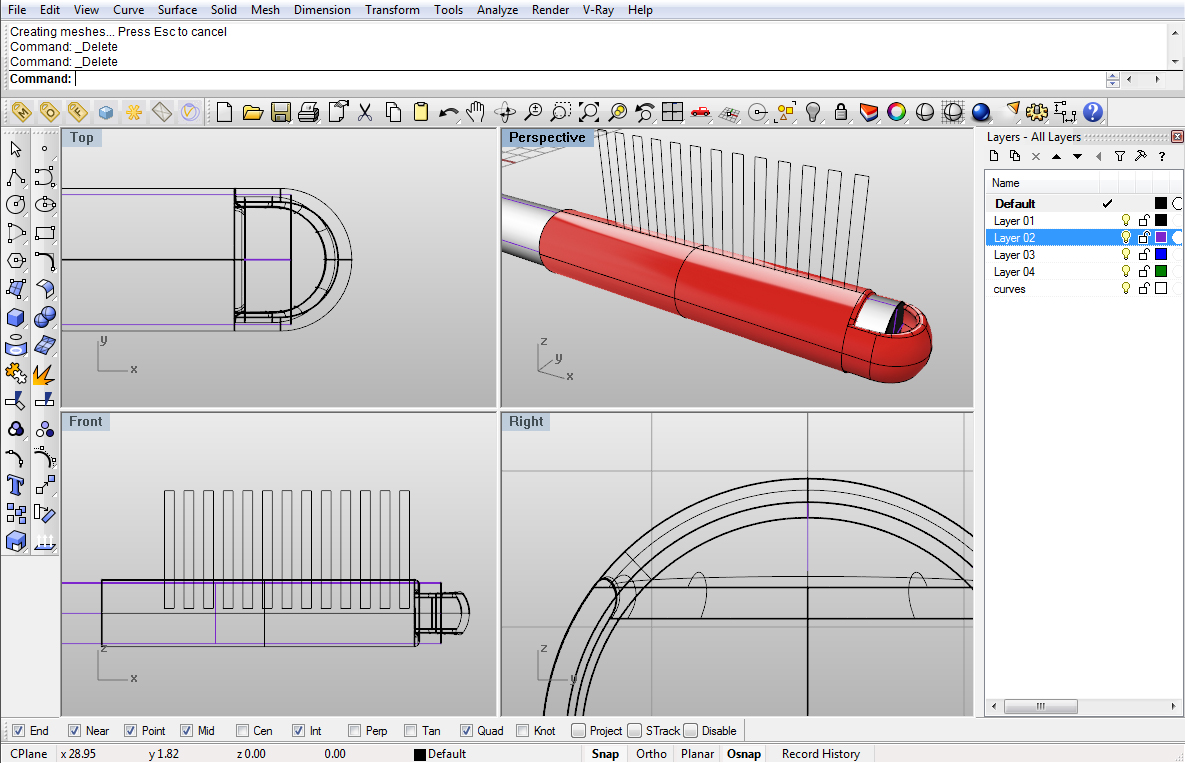

Isolate the outer shell of the handle, extrude with ExtrudeCrv command the offset circle:

Image 51

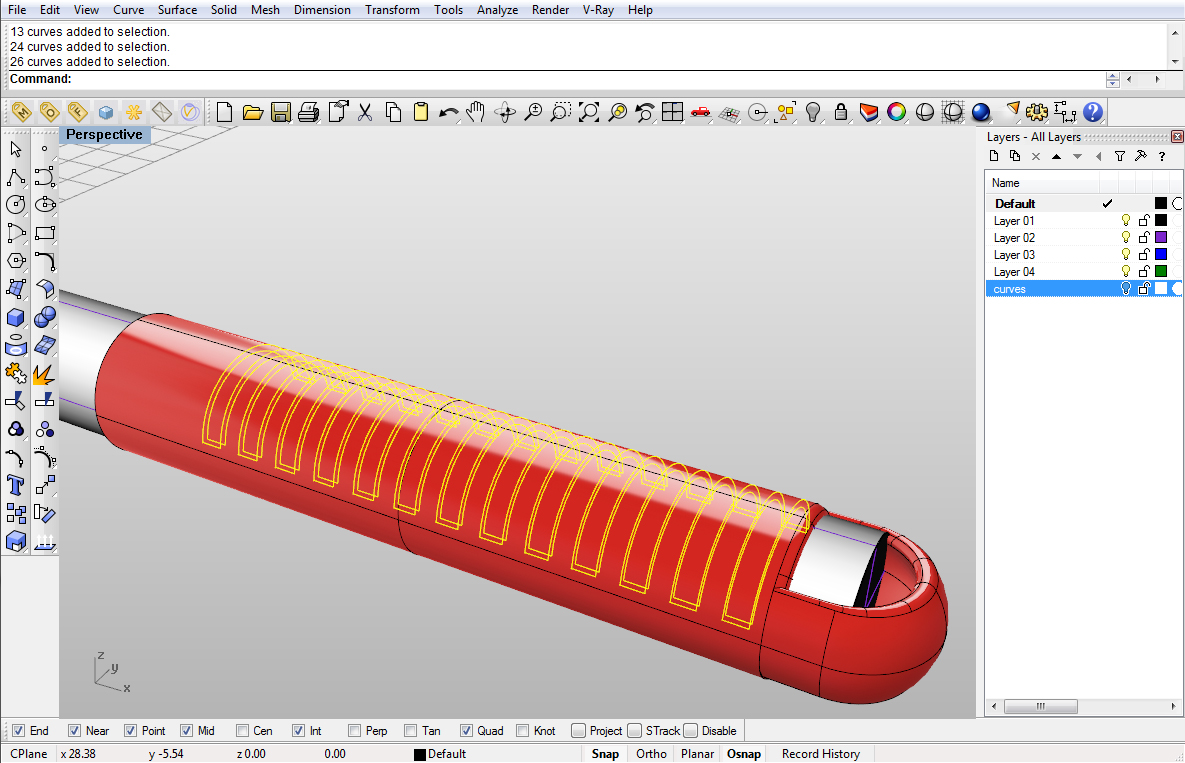

Select everything, and using command, from Front viewport project the rectangles on two tubes:

Image 52

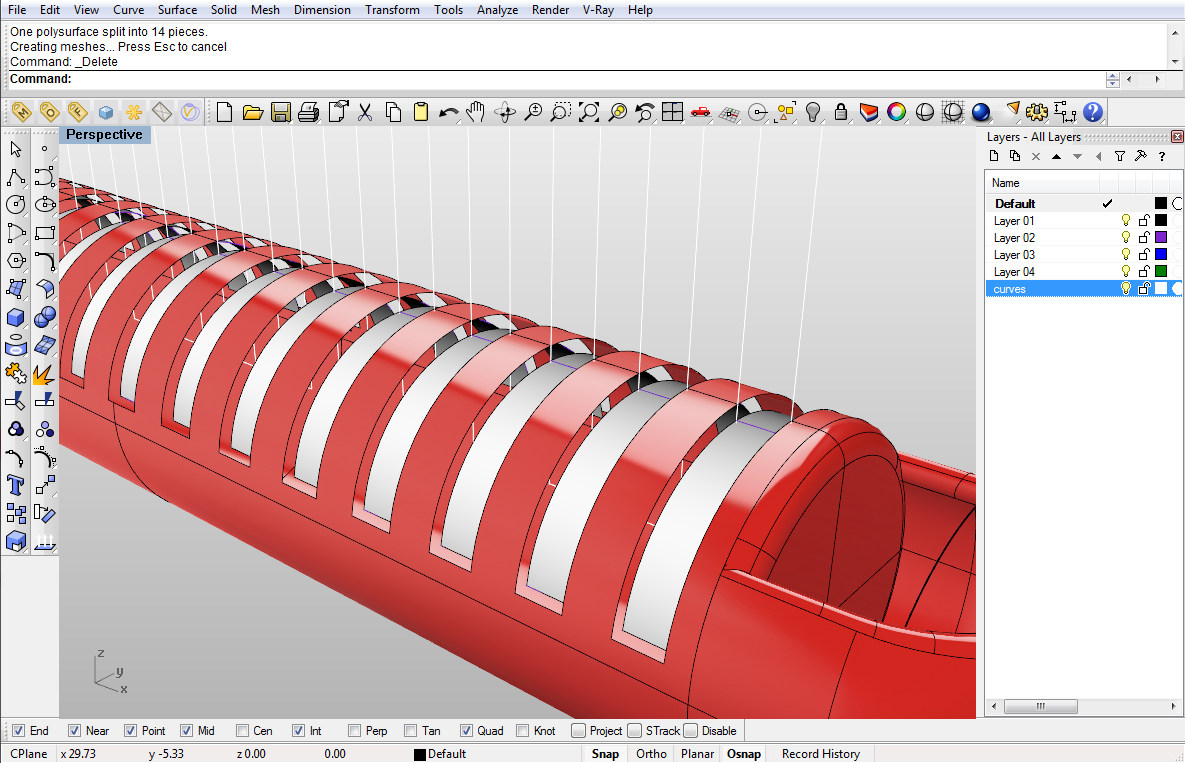

Ok, now, where the projected rectangle is, the inner cylinder should be visible, and the outer cylinder should be trimmed:

Image 53

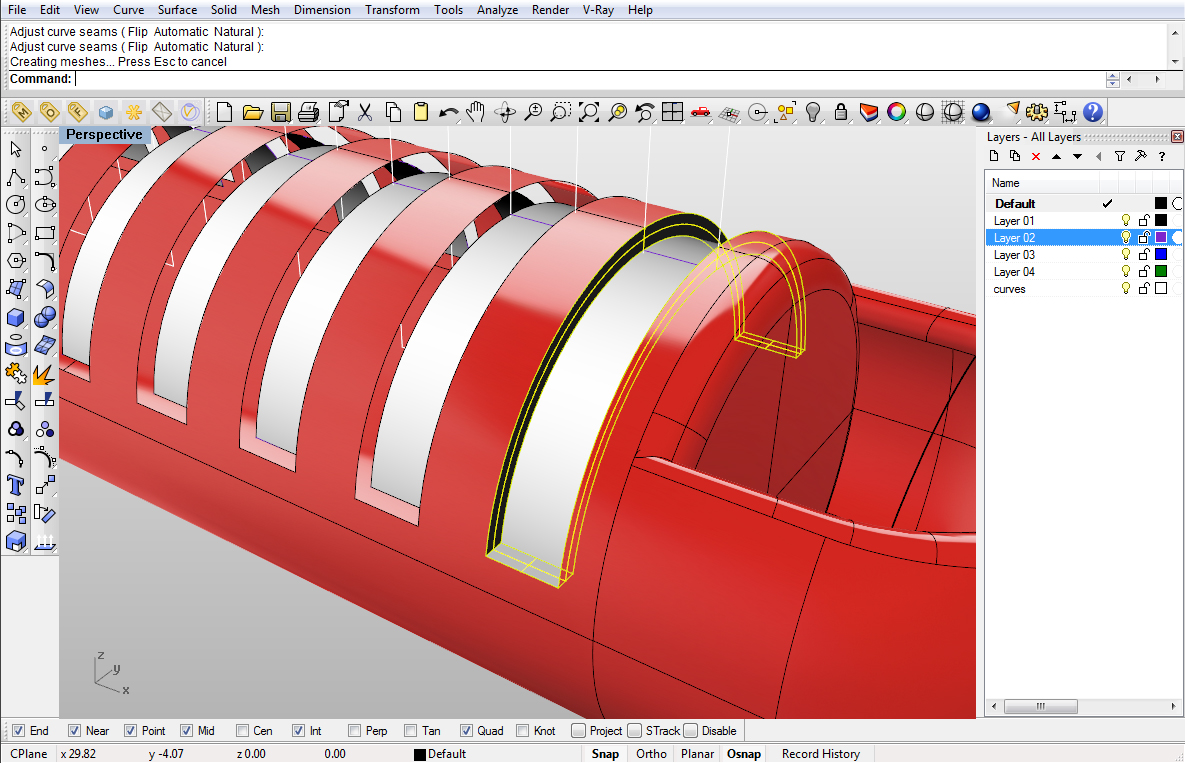

And for the end, we need to create a surface to fill the gaps. We’ll do that with Loft command, and two curves that are on the edges of those holes:

Image 54

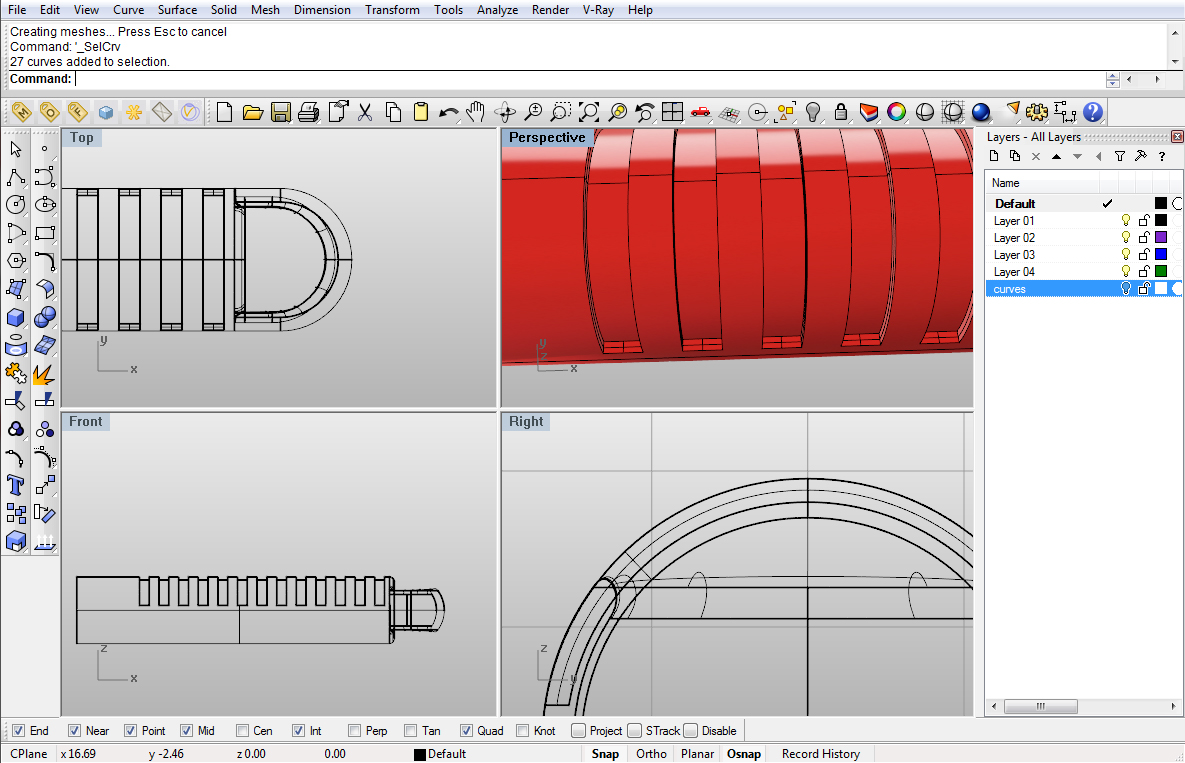

Now, either or Array that surface to fill the rest of the gaps.

Image 55

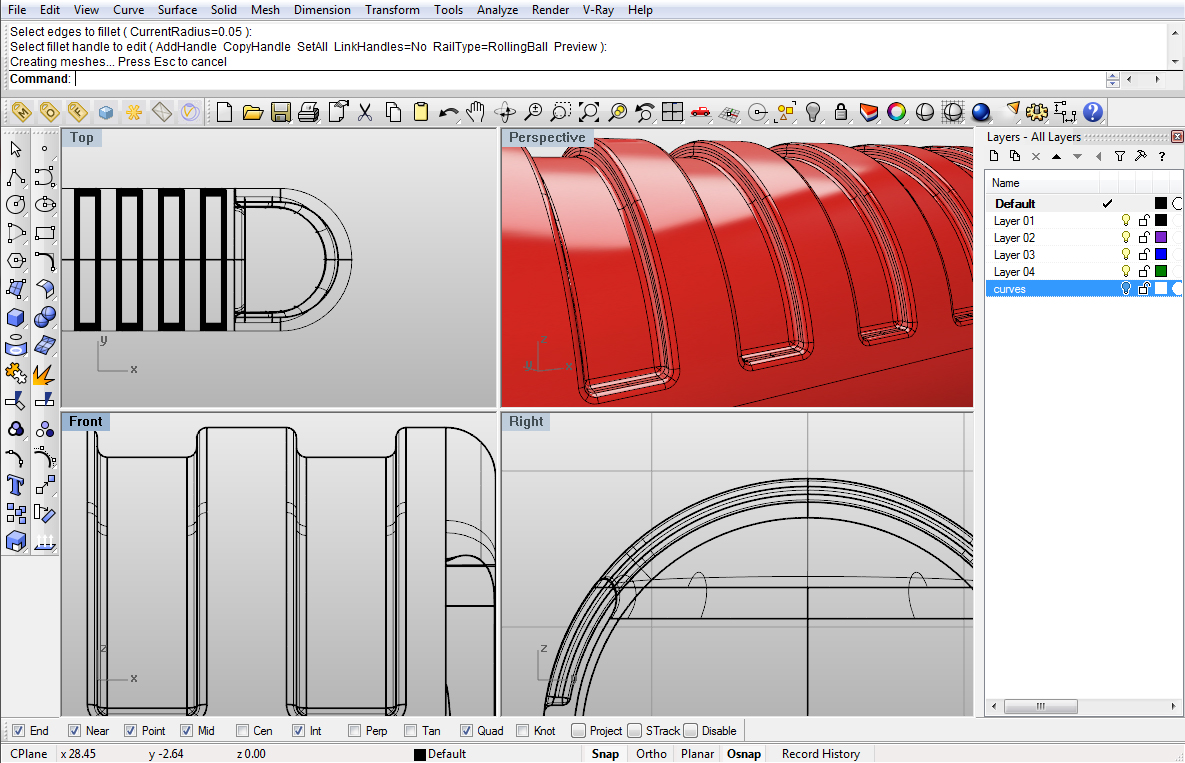

And for the better effect, we need to fillet the edges

Image 56

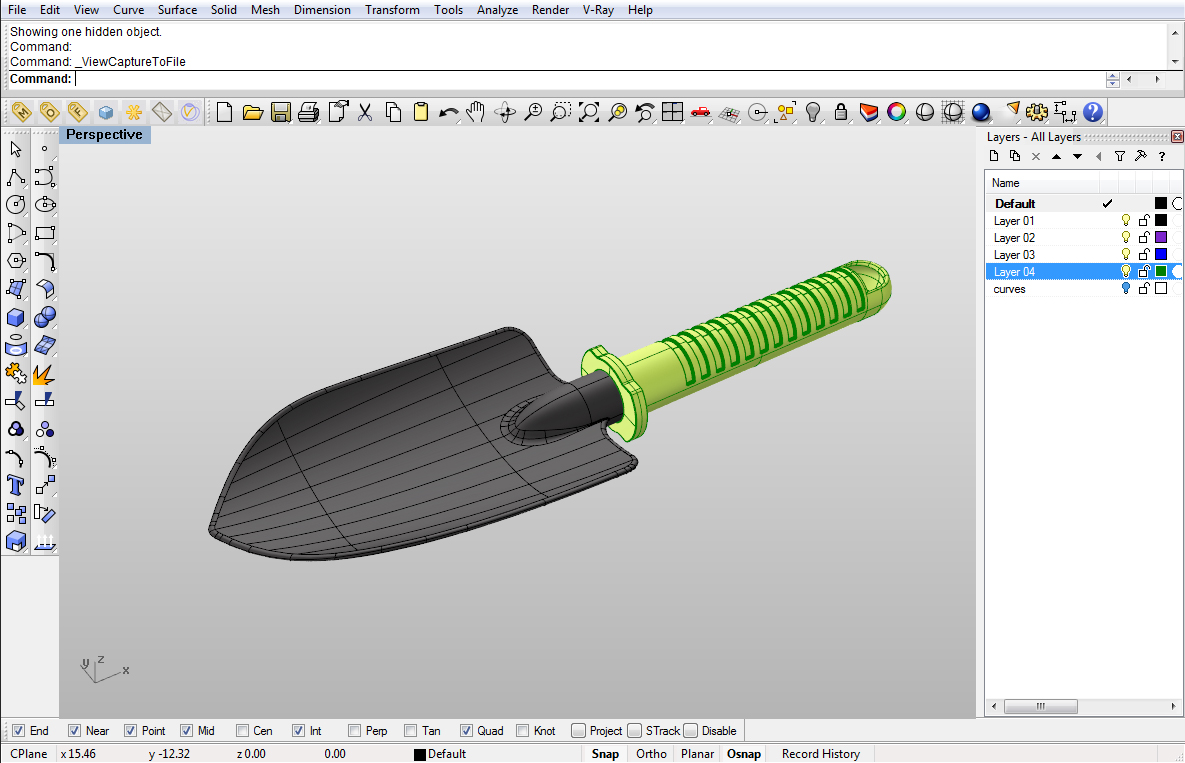

And this is what you get in the end:

Final

Pages: 1 2
