Modeling a simple house Part 1

STEP 2

In this step we will start modeling. So, before we even start outlining our plans we should hide all view layers except top (front,left,right and back). This way we easily make our workplace a lot clutterless. One more helpful thing would be to have Osnap enabled, and have End option set (you could use Int as well). Then you might want to create new layer called “walls” and set it to active by clicking in the Layers window left from light bulb. If you want, you can change the color of our layer to, say, red.

So, lets make a closed line with command.

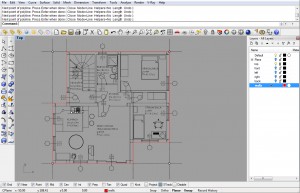

image 8

image 8

That closed curve (or rather polyline) needs to be offset by 2.5cm (the thickness of the wall needs to be 25cm actually, but since these plans came in like this, we can scale the whole house once we finish it).

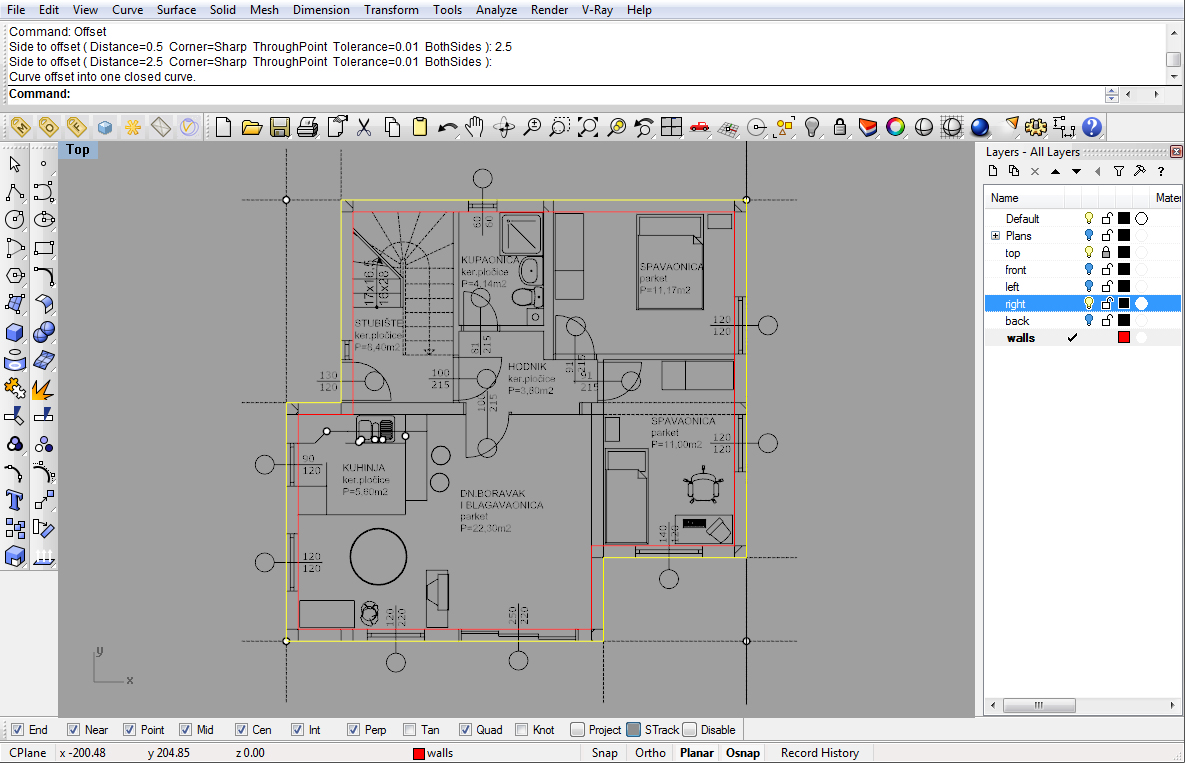

image 9

image 9

Next we need to trace the wall lines. Again, using polyline and a little help from Osnap options (end option is great here, you might want to disable Smart Track – it is annoying sometimes when you don’t need it)

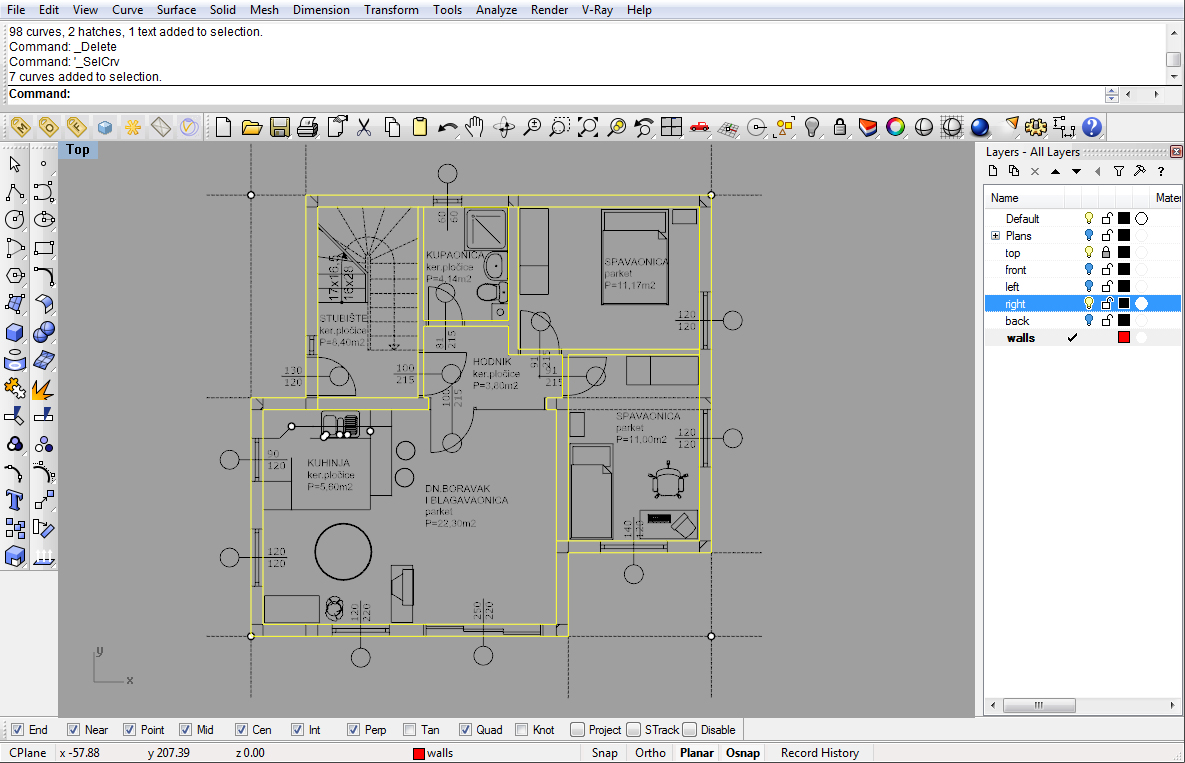

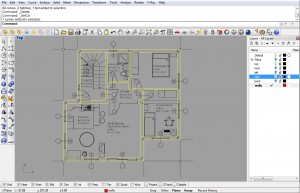

house10

image 10

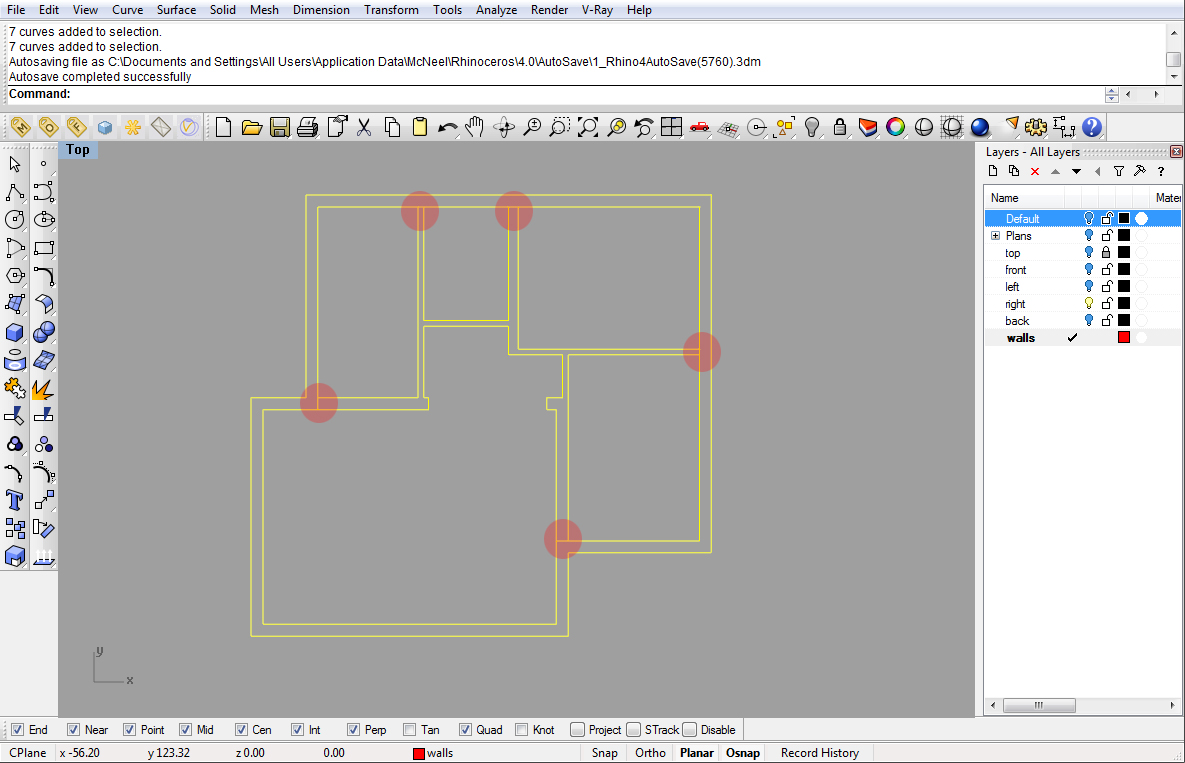

Next thing will be to trim the lines and join them together so we can extrude the walls. So, lets first hide the top layer. Select all lines and initiate command. the excess lines marked on the image 11 below:

house11

image 11

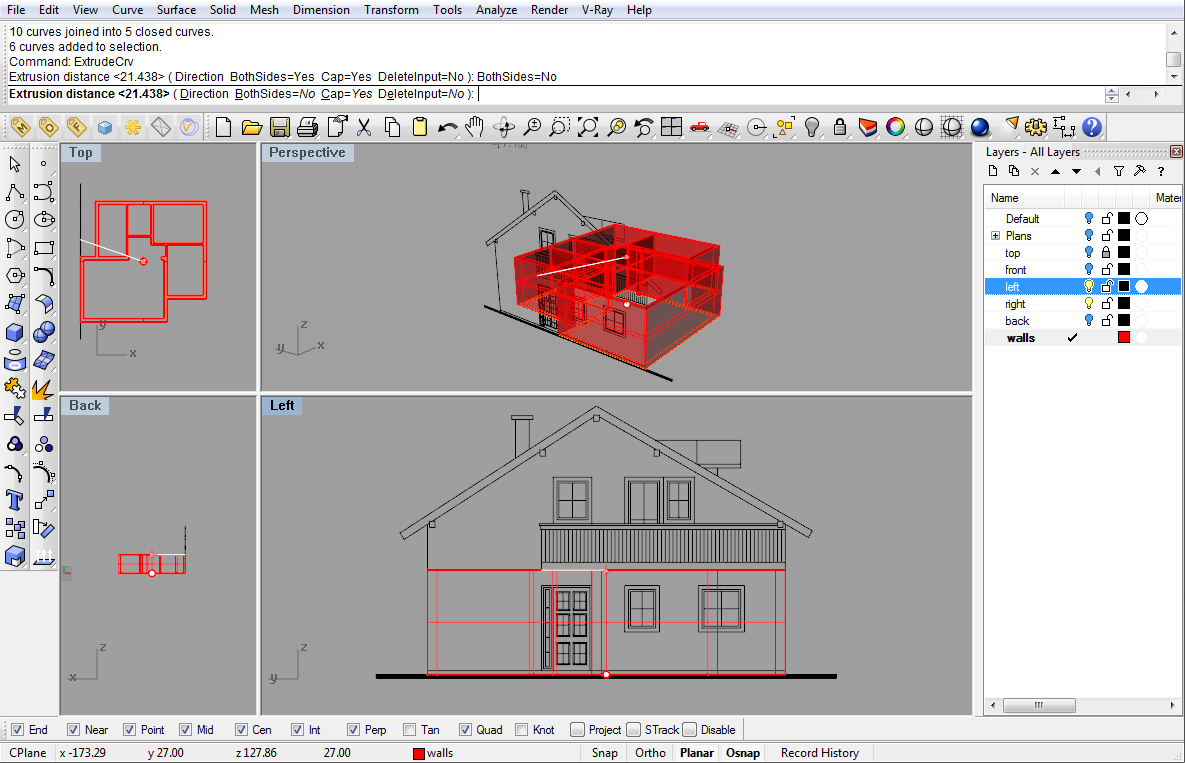

After you trim 5 lines, join them. After that using command extrude the lines (make sure options in command line are set to BothSides=No Cap=Yes – make your “left” layer visible because we need the height of extrusion)

house12

image 12

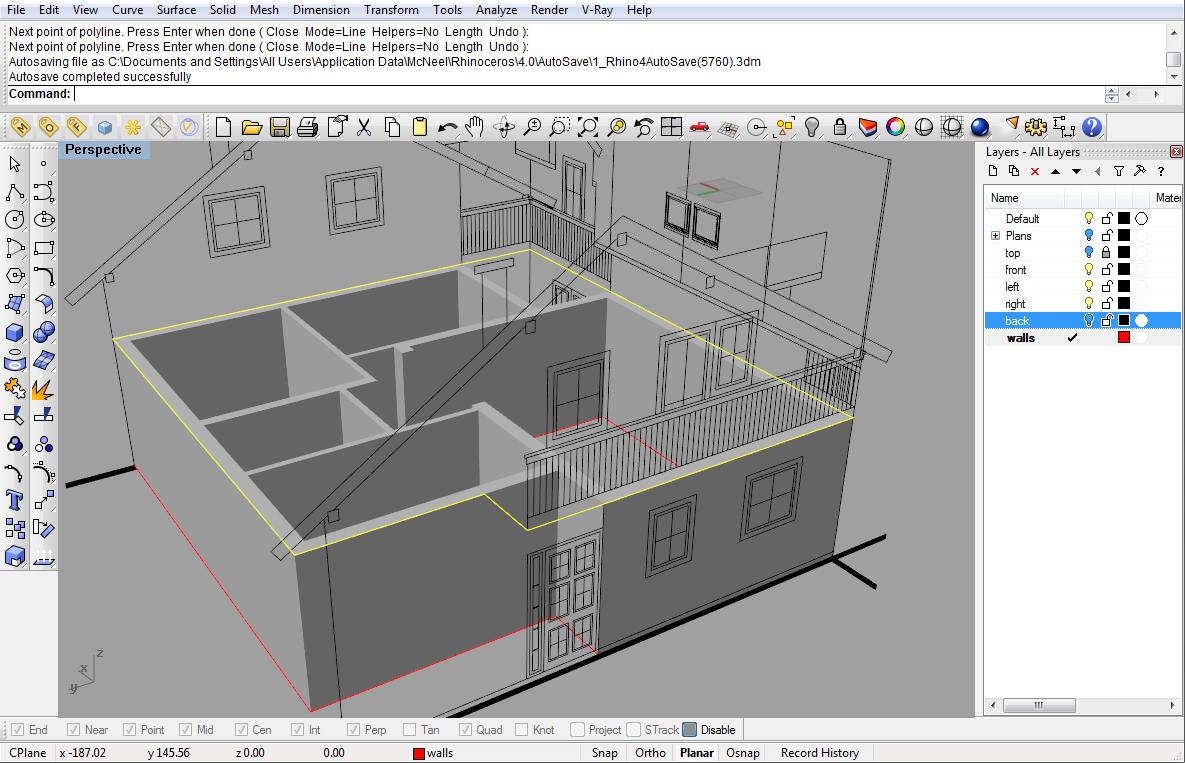

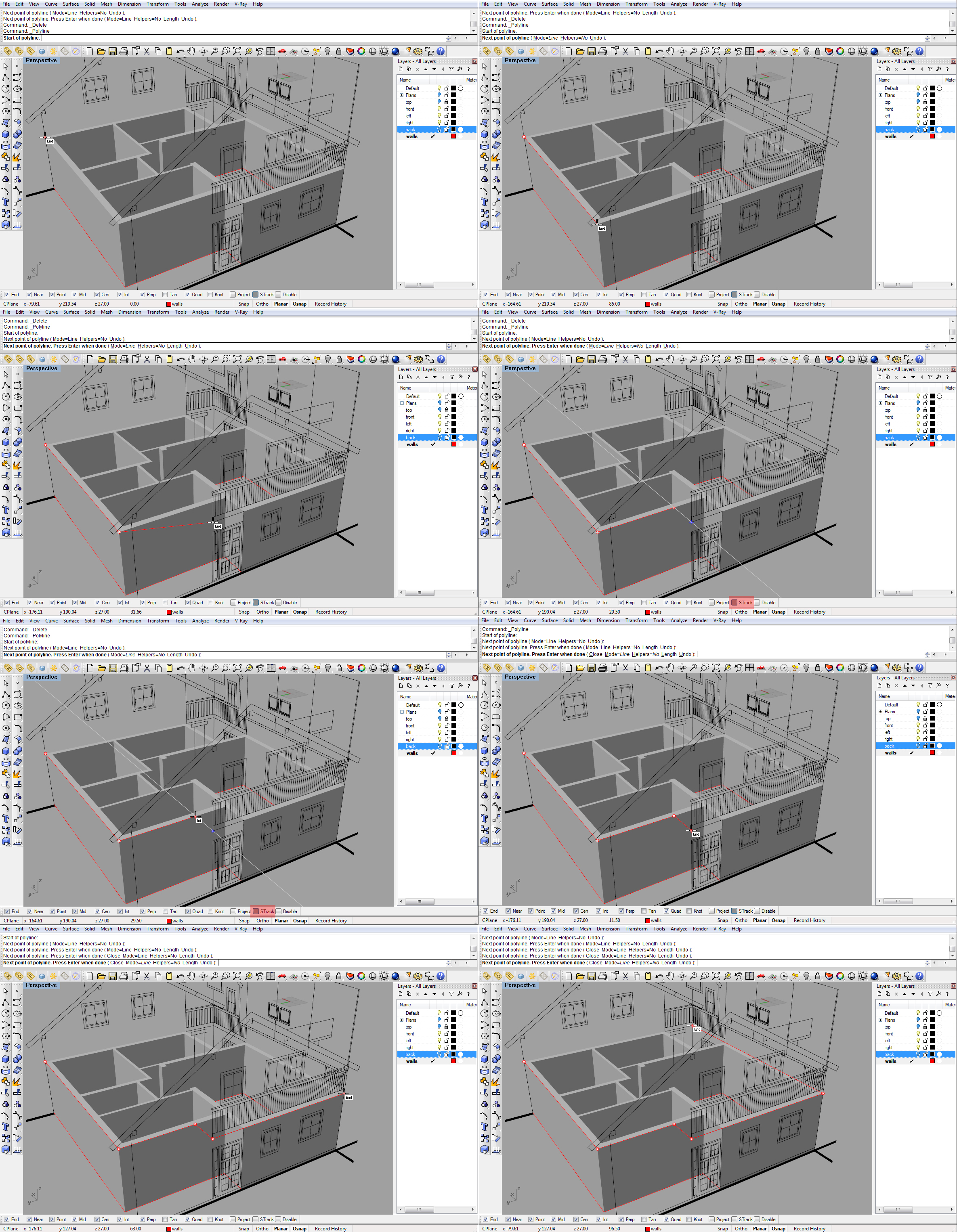

Ok, now we need a base for our first floor. So, again using PolyLine command we will make an outline for our surface. Be careful at two balconies we got on the side where main entrance is, and on the opposite side of  that. See images below (you can unhide all view layers except back, we don’t need it much at this stage, so having “left” unhidden already, unhide “right” and “front”):

{in case you didn’t get this step, follow this link to get the step-by-step instructions}

image 14

image 14

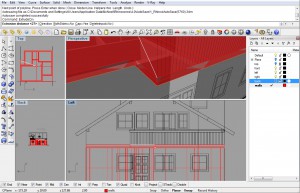

Once you have that line, go ahead and using ExtrudeCrv extrude it. For reference of extrusion height use left view and Osnap:

house15

image 15

Now we need plans for a first floor so we can make walls and extrude that too.

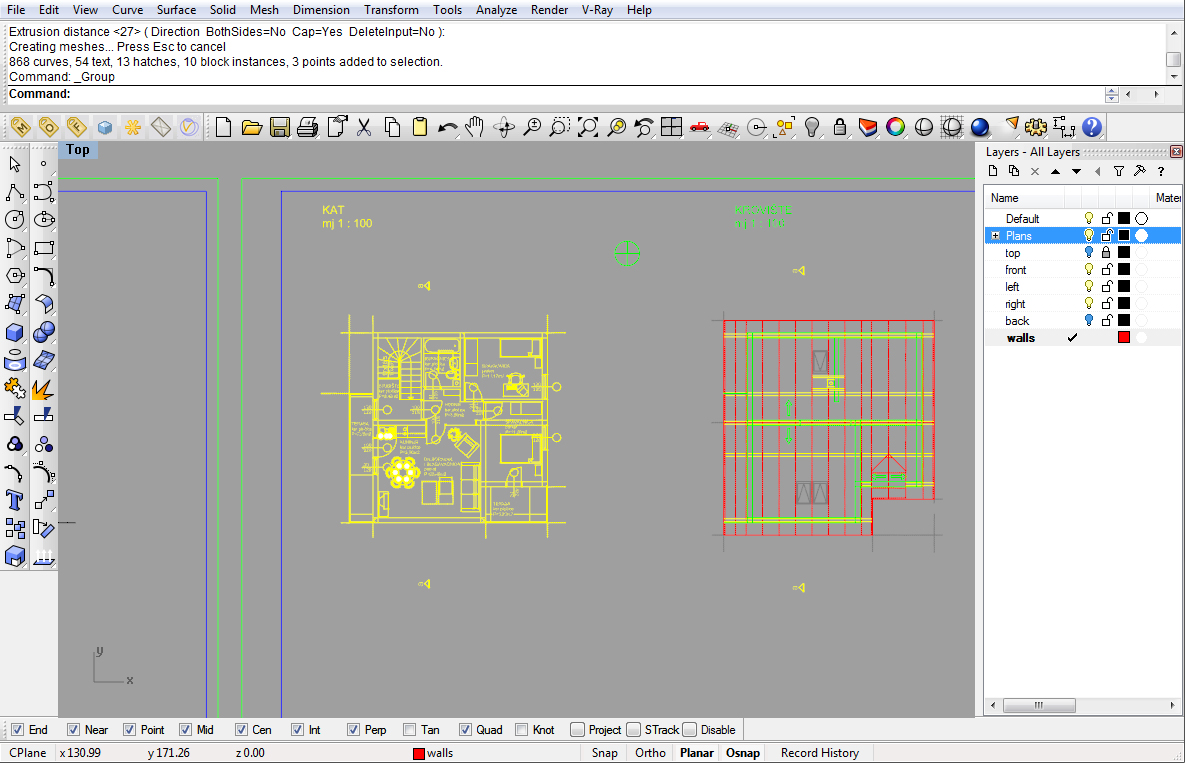

So, lets go and unhide “Plans” layer. Where it says “KAT” select those lines and group them. Create new layer named “1st floor” and put those lines into that layer (if you still don’t know how, just while you have the group selected right click the mouse on the layer and select “Change object layer”)

image 16

image 16

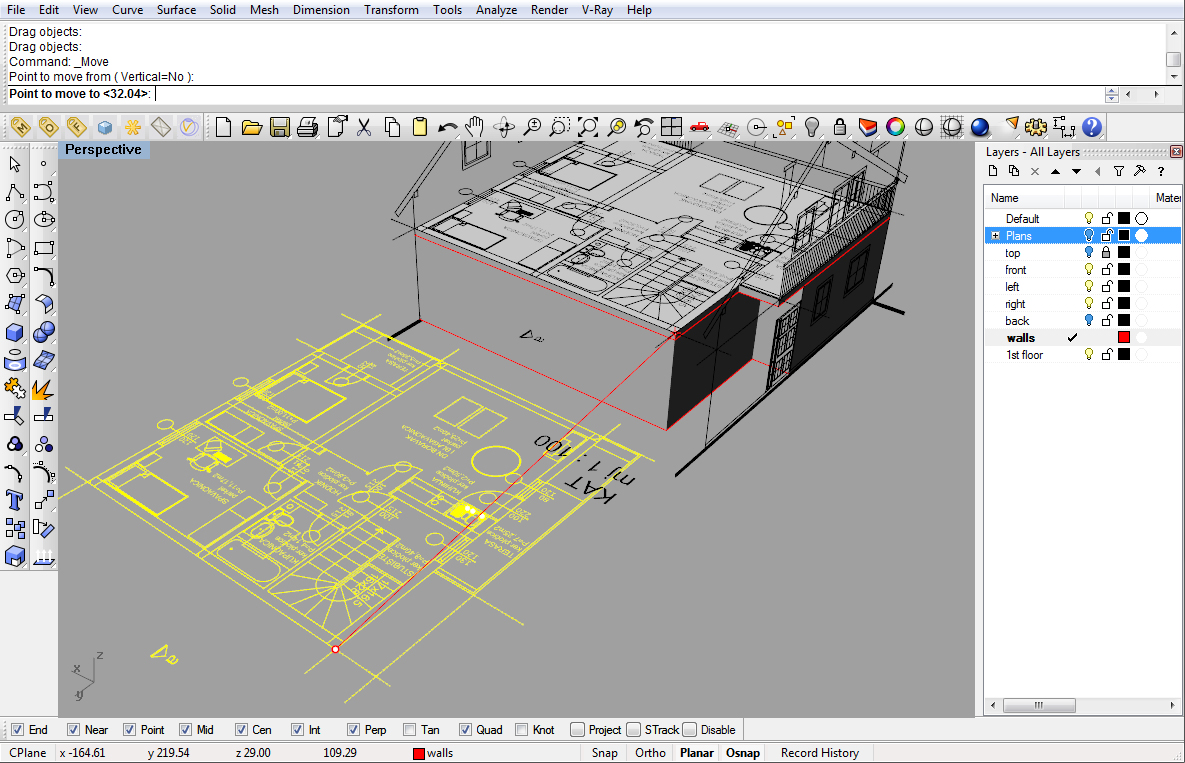

Now we need to position those plans on our model. Just find two reference points from and to which you will be moving this group. Like on the image 17.

image 17

image 17

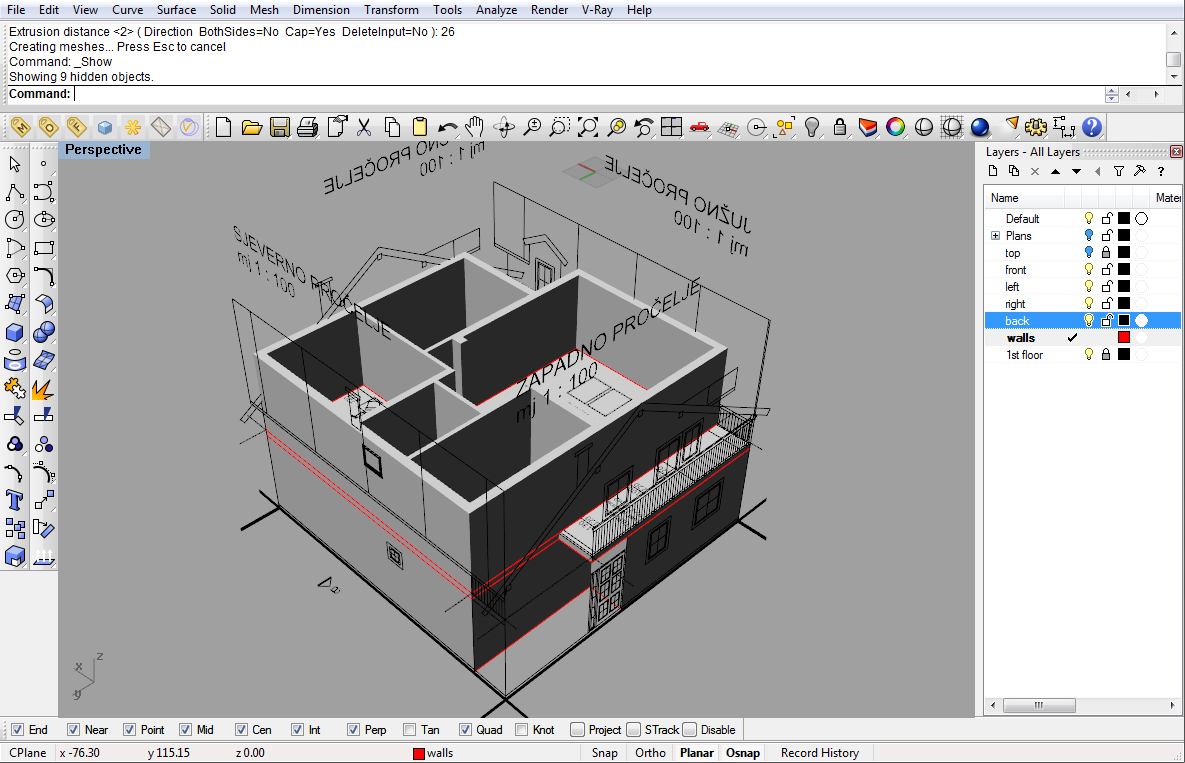

all layers except “1st floor” and lock it (don’t hide “walls” layer either and keep it active). You can hide everything else from the “walls” layer, but not the layer itself. Now, again, pretty same method as when extruding walls from ground floor. Make a outer trace, and offset it by 2.5cm and then using PolyLine make inner walls, trim what you don’t need and those lines. After that just extrude them using ExtrudeCrv. For extrusion height we will input 26cm. It is the same height as for the ground floor.

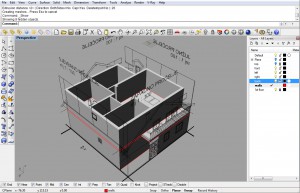

image 18

image 18

Create one more closed polyline following the outer edges of the walls we just created. Or, simply use the one we used for extruding these walls, and move it up by 26cm. Your choice actually. I moved it (Image 19)

image 19 - move curve

image 19 - move curve

Now, extrude this line (with Cap=Yes and BothSided=No) by 2.0cm (the same height as for the ground floor [20cm]).

After that, we will follow the inner curve of “left” layer’s roof. So you can hide all layers except the one you are working in (maybe “walls” layer) and “left” layer.

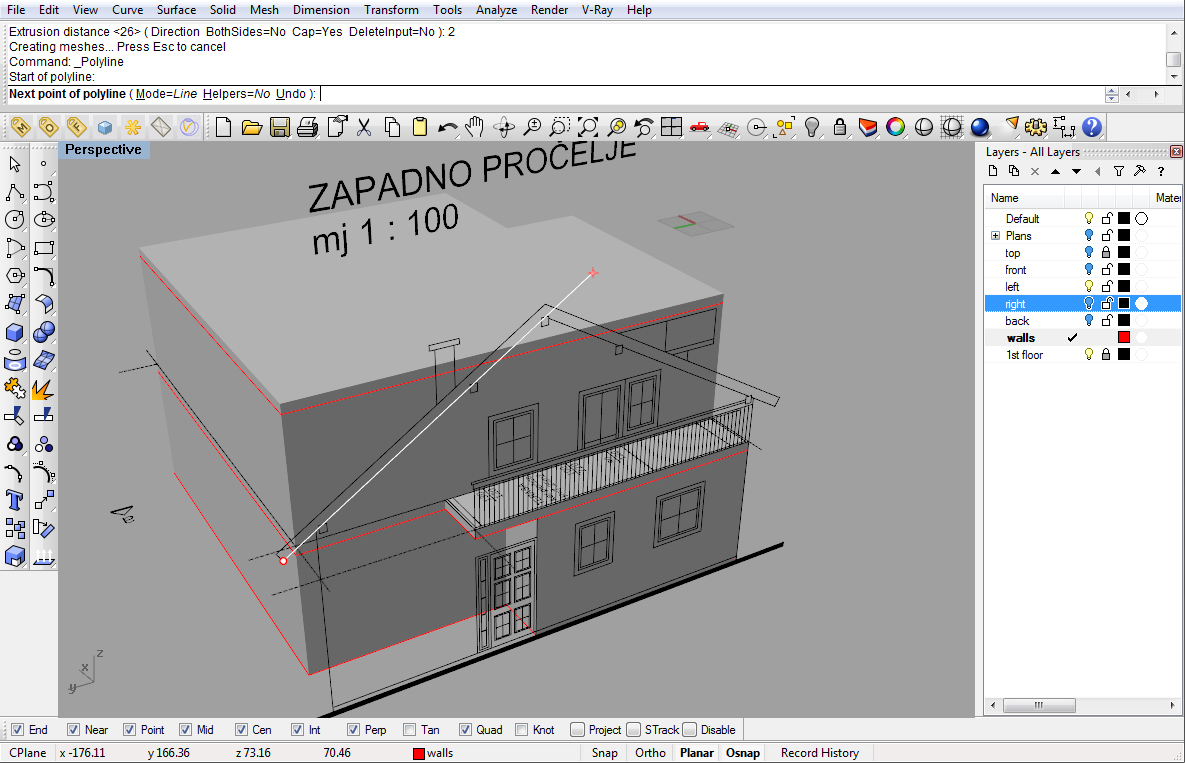

Using OSnap with option Near turned on we will start our line from end point on the roof line (image 20) and hovering anywhere ON that line we will see Near show below our cursor. While seeing that just press once TAB key, and direction will be locked. Now just make it long enough (like on the image 20)

image 20

image 20

Do the same for the opposite side, and trim two lines and join them.

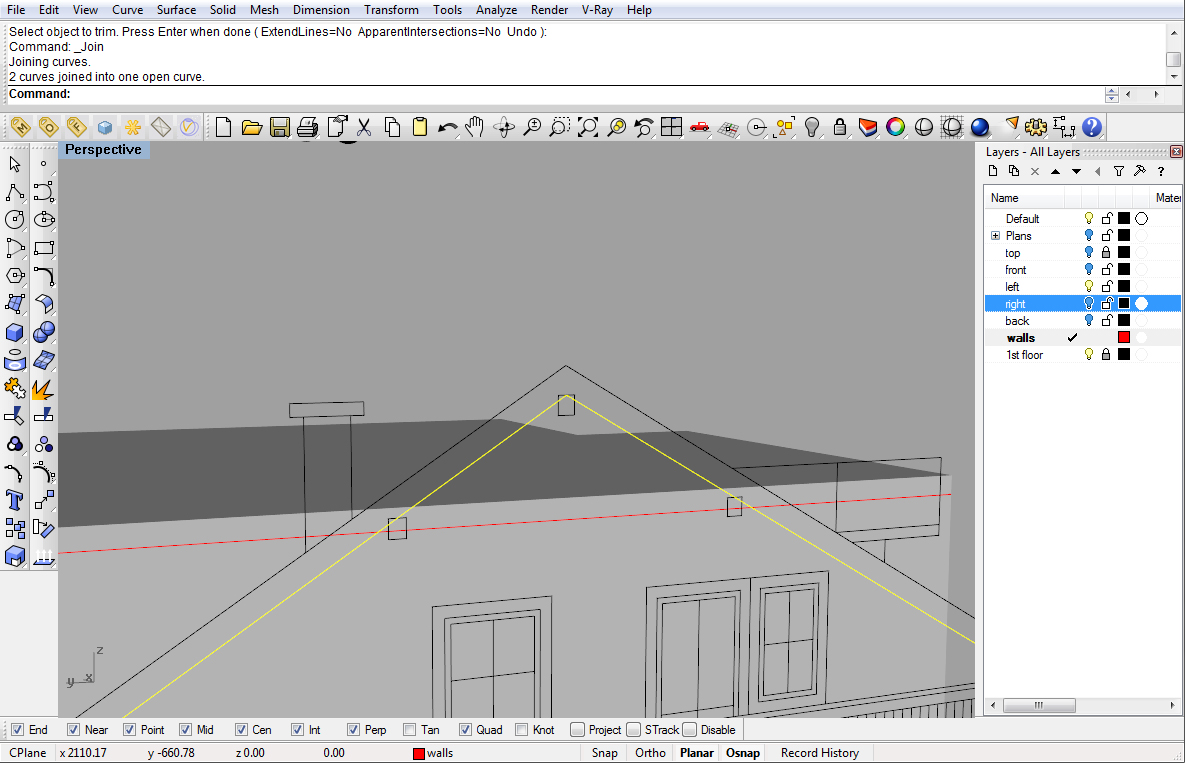

image 21

image 21

Extrude that polyline, and copy extruded surface to clipboard. Do it by pressing CTRL+C while surface is selected. Next, trim this surface with walls, and then with slab seperately.

First select roof surface, and slab. Run the Trim command and click on the parts we don’t need. After we finish trimming, join those (2) already selected (poly)surfaces into one polysurface. After that we need to paste the roof surface we copied into clipboard seconds ago. CTRL+V or from menu Edit>. Trim with walls polysurface and join.

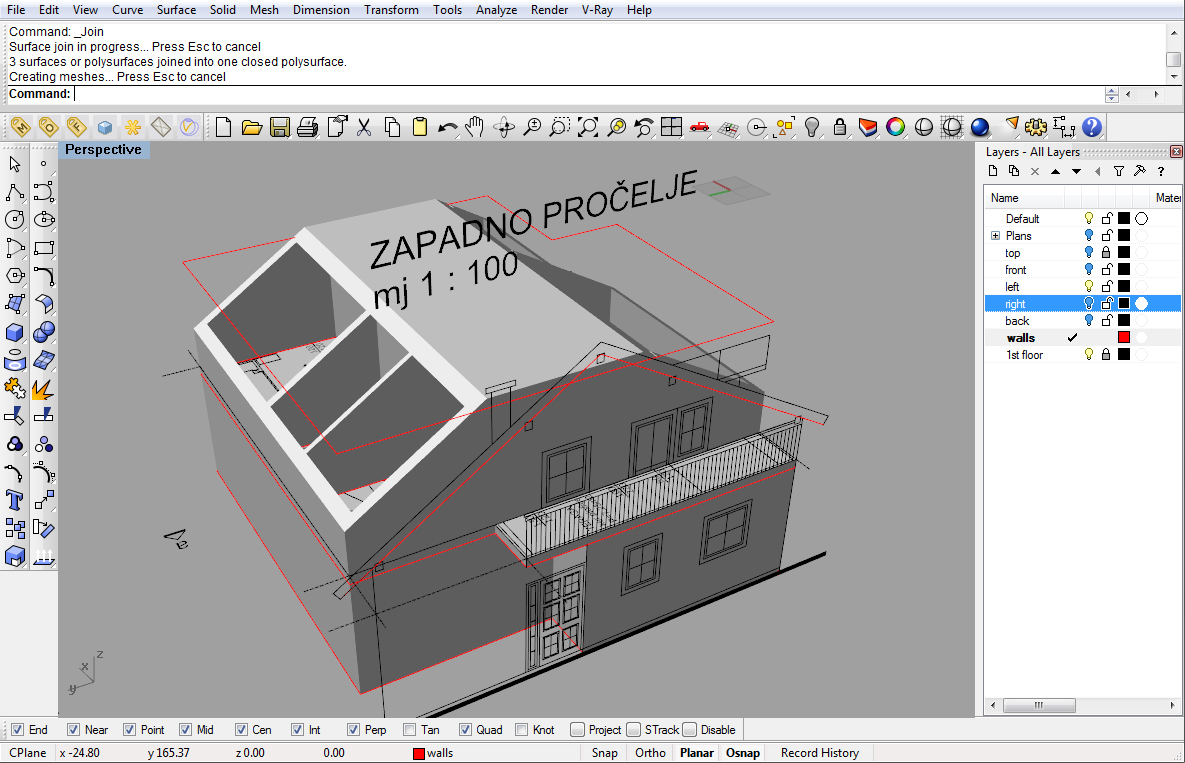

image 22

image 22

We just need to “extend” our walls. We just need to use polyline command with some STrack help. See the video below. And extrude that and copy on the other side too.

video 1 - STrack

video 1 - STrack

Now, we need to make a roof section. Using already half of the section we made before, we will just make another half with polyline command.

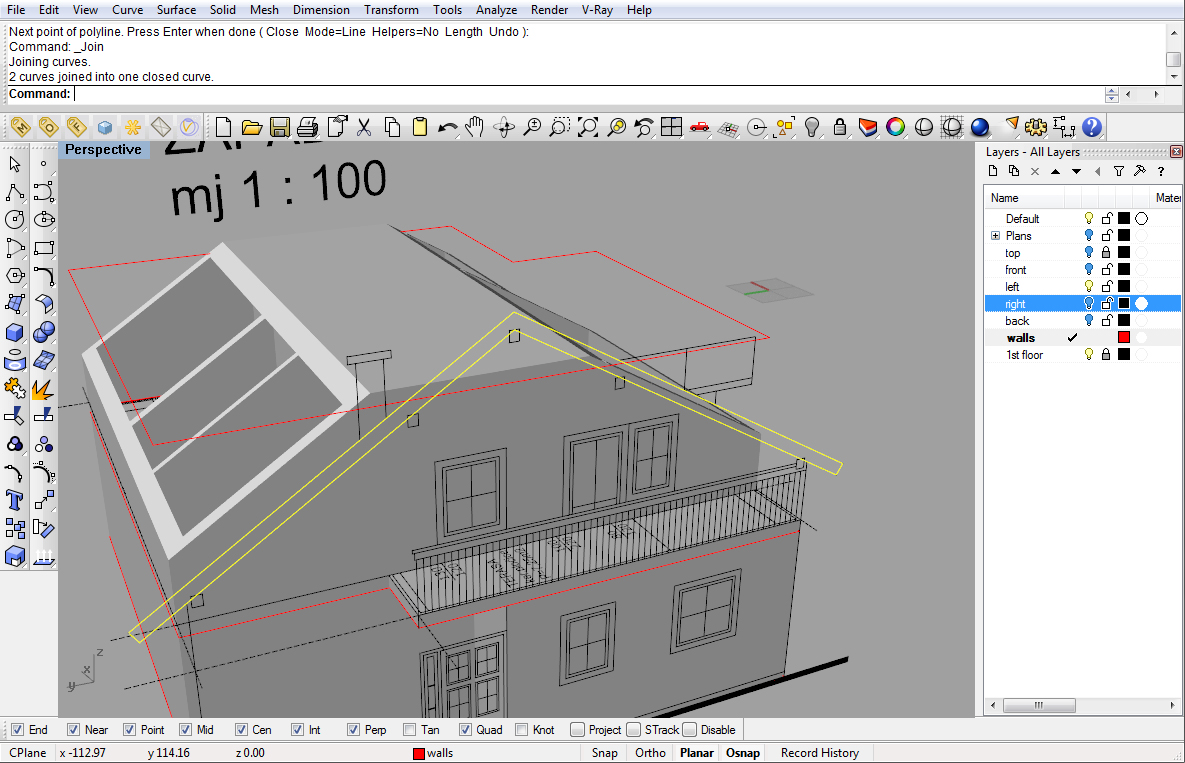

image 23

image 23

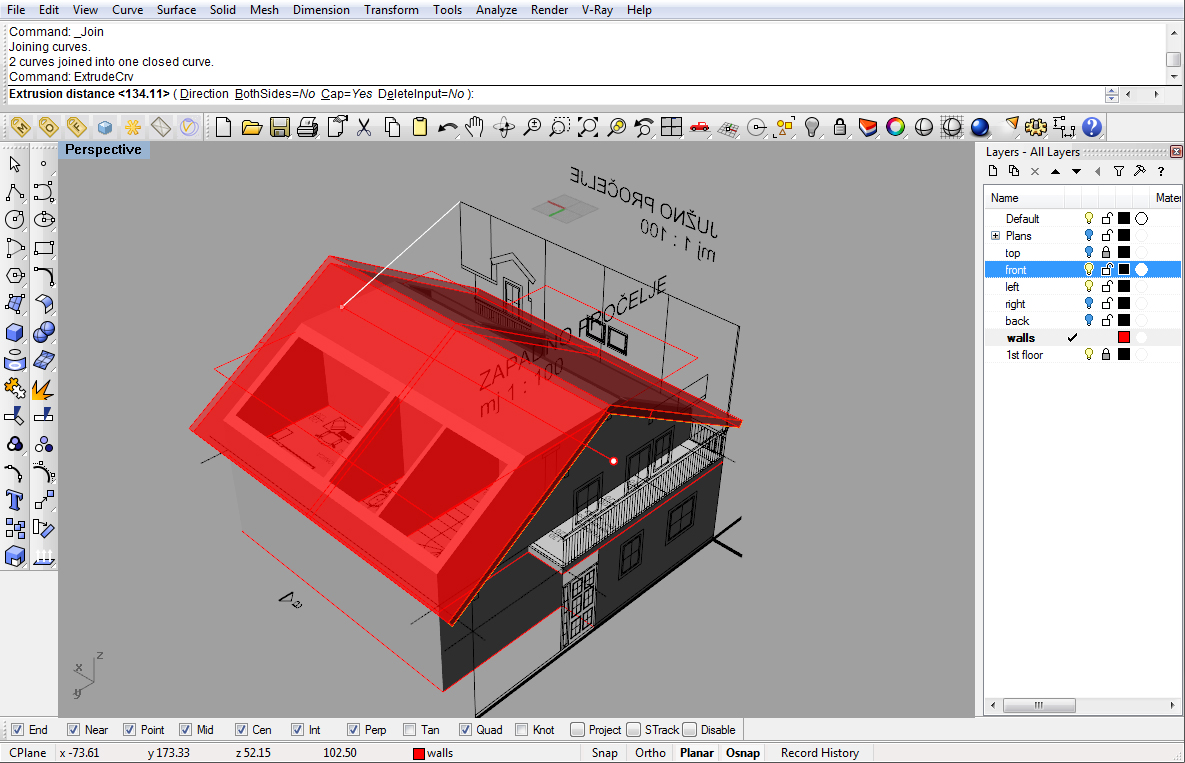

Extrude with BothSides=No and Cap=Yes options. The extrusion height/distance is 102.5 but you don’t need that info, just unhide “front” layer, and use the end point as reference:

images 24

images 24
